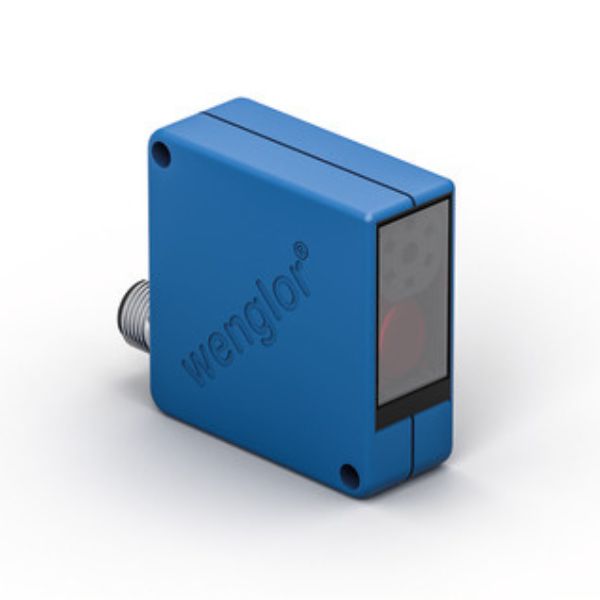

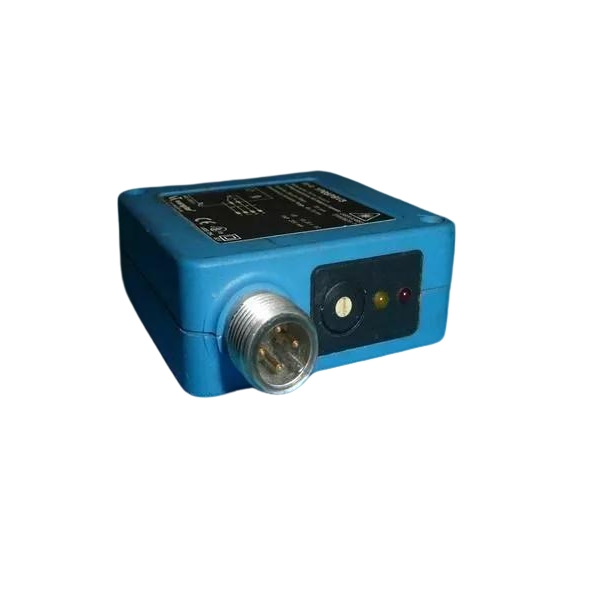

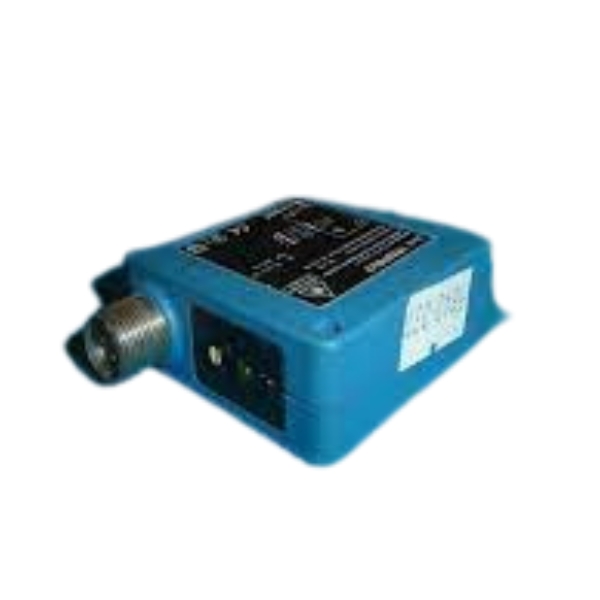

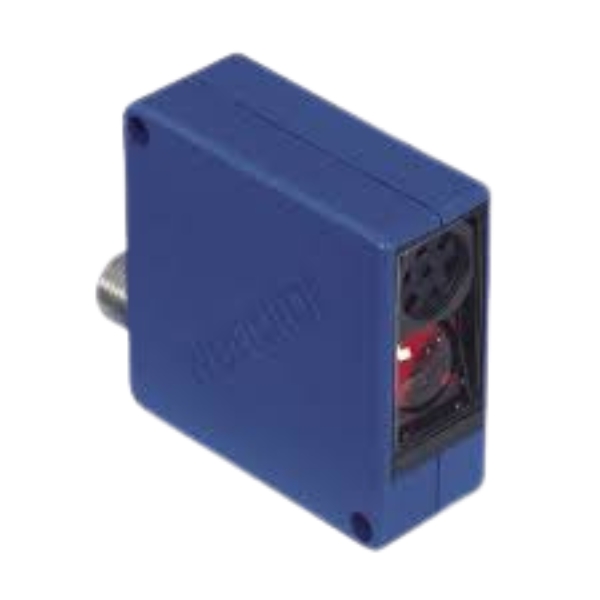

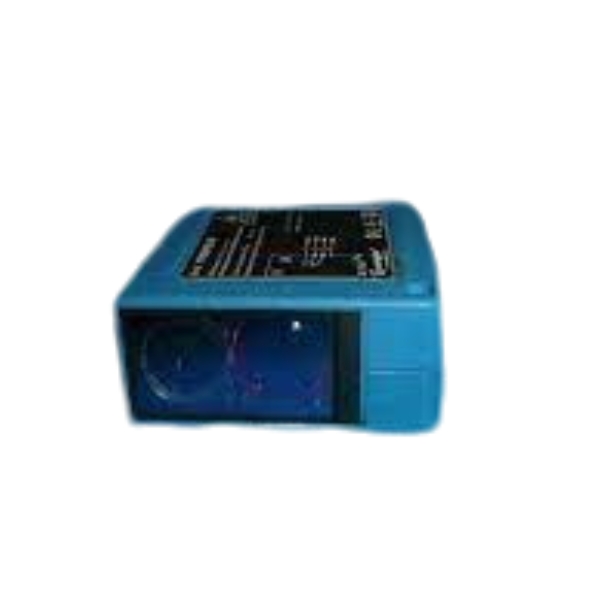

Wenglor YP05PBV3 Laser Distance Sensor High Precision
Wenglor YP05PBV3 Laser Distance Sensor High Precision detects distance by measuring angles. They are particularly good at recognizing objects in front of any background. The color, shape, and surface characteristics of the object have practically no influence on sensor-switching performance.
Optical Data:
- Range 55 mm
- Setting Range 45 … 55 mm
- Switching Hysteresis < 50 µm
- Light Source Laser (red)
- Wavelength 660 nm
- Service Life (T = +25 °C) 100,000 h
- Laser Class (EN 60825-1) 2
- Max. Ambient Light 10,000 Lux
- Light Spot Diameter 0.5 mm
- Focus Distance 75 mm
Electrical Data:
- Supply Voltage 10 … 30 V DC
- Current Consumption (Ub = 24 V) < 30 mA
- Switching Frequency 1,500 Hz
- Response Time 333 µs
- Temperature Drift < 5 µm/K
- Temperature Range -25 … 60 °C
- Switching Output Voltage Drop < 2.5 V
- PNP Switching Output/Switching Current 200 mA
- PNP Contamination Output/Switching Current 50 mA
- Short Circuit Protection yes
- Reverse Polarity Protection yes
- Overload Protection yes
- Protection Class III
Mechanical Data:
- Setting Method Potentiometer
- Housing Material Plastic
- Full Encapsulation yes
- Degree of Protection IP67
- Connection M12 × 1; 4-pin
Output:
- Contamination Output
- PNP NO
