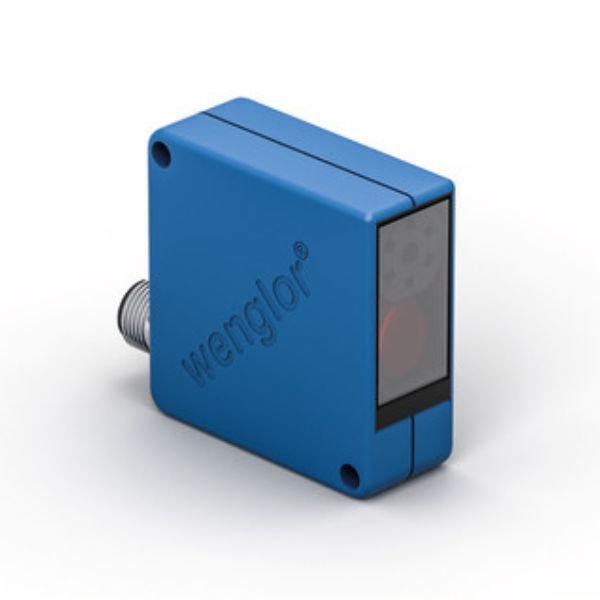

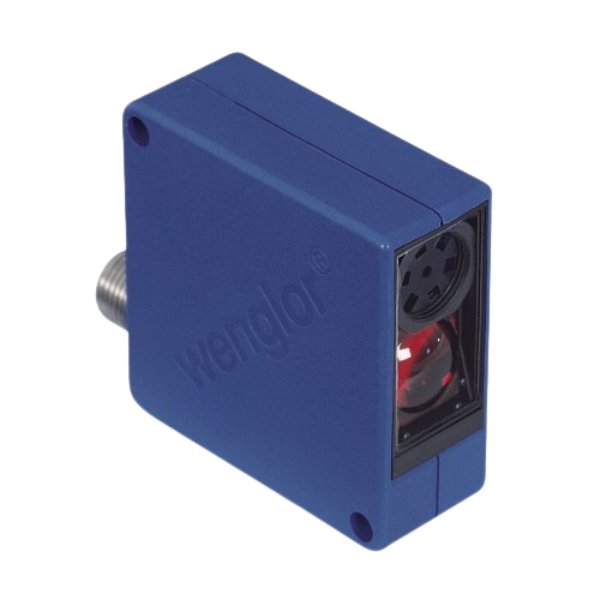

Wenglor YP09PBV3 Laser Distance Sensor High Precision

Product Note:

No product notes available.

Description

Wenglor YP09PBV3 Laser Distance Sensor High Precision

Wenglor YP09PBV3 Laser Distance Sensor High Precision these sensors detect distance by measuring angles. They are particularly good at recognizing objects in front of any background. The color, shape, and surface characteristics of the object have practically no influence on sensor-switching performance.

Optical Data:

  • Range 100 mm
  • Setting Range 60 … 100 mm
  • Switching Hysteresis  < 200 µm
  • Light Source Laser (red)
  • Wavelength 660 nm
  • Service Life (T = +25 °C) 100,000 h
  • Laser Class (EN 60825-1) 2
  • Max. Ambient Light 10,000 Lux
  • Light Spot Diameter 0.8 mm
  • Focus Distance 110 mm

Electrical Data:

  • Supply Voltage 10 … 30 V DC
  • Current Consumption (Ub = 24 V) < 30 mA
  • Switching Frequency 1,500 Hz
  • Response Time 333 µs
  • Temperature Drift < 15 µm/K
  • Temperature Range -25 … 60 °C
  • Switching Output Voltage Drop < 2.5 V
  • PNP Switching Output/Switching Current 200 mA
  • PNP Contamination Output/Switching Current 50 mA
  • Short Circuit Protection yes
  • Reverse Polarity Protection yes
  • Overload Protection yes
  • Protection Class III

Mechanical Data:

  • Setting Method Potentiometer
  • Housing Material Plastic
  • Full Encapsulation yes
  • Degree of Protection IP67
  • Connection M12 × 1; 4-pin

Output:

  • Contamination Output yes
  • PNP NO yes

Features

  • Spot diameter: 0,8 mm
  • Smallest recognizable distance difference: 200 µm

Applications

B_BED_P_02.eps
01 = Switching Status Indicator
32 = Contamination Warning/Error Warning
05 = Switching Distance Adjuster

Specifications

Optical Data

Range100 mm
Setting Range60 … 100 mm
Switching Hysteresis < 200 µm
Light SourceLaser (red)
Wavelength660 nm
Service Life (T = +25 °C)100,000 h
Laser Class (EN 60825-1)2
Max. Ambient Light10,000 Lux
Light Spot Diameter0.8 mm
Focus Distance110 mm

Electrical Data

Supply Voltage10 … 30 V DC
Current Consumption (Ub = 24 V)< 30 mA
Switching Frequency1,500 Hz
Response Time333 µs
Temperature Drift< 15 µm/K
Temperature Range-25 … 60 °C
Switching Output Voltage Drop< 2.5 V
PNP Switching Output/Switching Current200 mA
PNP Contamination Output/Switching Current50 mA
Short Circuit Protectionyes
Reverse Polarity Protectionyes
Overload Protectionyes
Protection ClassIII

Mechanical Data

Setting MethodPotentiometer
Housing MaterialPlastic
Full Encapsulationyes
Degree of ProtectionIP67
ConnectionM12 × 1; 4-pin

Output

Contamination Outputyes
PNP NOyes

Downloads

Datasheet : Wenglor YP09PBV3 Laser Distance Sensor High Precision

Related Products

Wenglor YP09PBV3 Laser Distance Sensor High Precision

Wenglor YP09PBV3 Laser Distance Sensor High Precision these sensors detect distance by measuring angles.

Product Note:

No product notes available.

Loading...

Description

Wenglor YP09PBV3 Laser Distance Sensor High Precision

Wenglor YP09PBV3 Laser Distance Sensor High Precision these sensors detect distance by measuring angles. They are particularly good at recognizing objects in front of any background. The color, shape, and surface characteristics of the object have practically no influence on sensor-switching performance.

Optical Data:

  • Range 100 mm
  • Setting Range 60 … 100 mm
  • Switching Hysteresis  < 200 µm
  • Light Source Laser (red)
  • Wavelength 660 nm
  • Service Life (T = +25 °C) 100,000 h
  • Laser Class (EN 60825-1) 2
  • Max. Ambient Light 10,000 Lux
  • Light Spot Diameter 0.8 mm
  • Focus Distance 110 mm

Electrical Data:

  • Supply Voltage 10 … 30 V DC
  • Current Consumption (Ub = 24 V) < 30 mA
  • Switching Frequency 1,500 Hz
  • Response Time 333 µs
  • Temperature Drift < 15 µm/K
  • Temperature Range -25 … 60 °C
  • Switching Output Voltage Drop < 2.5 V
  • PNP Switching Output/Switching Current 200 mA
  • PNP Contamination Output/Switching Current 50 mA
  • Short Circuit Protection yes
  • Reverse Polarity Protection yes
  • Overload Protection yes
  • Protection Class III

Mechanical Data:

  • Setting Method Potentiometer
  • Housing Material Plastic
  • Full Encapsulation yes
  • Degree of Protection IP67
  • Connection M12 × 1; 4-pin

Output:

  • Contamination Output yes
  • PNP NO yes

Features

  • Spot diameter: 0,8 mm
  • Smallest recognizable distance difference: 200 µm

Applications

B_BED_P_02.eps
01 = Switching Status Indicator
32 = Contamination Warning/Error Warning
05 = Switching Distance Adjuster

Specifications

Optical Data

Range100 mm
Setting Range60 … 100 mm
Switching Hysteresis < 200 µm
Light SourceLaser (red)
Wavelength660 nm
Service Life (T = +25 °C)100,000 h
Laser Class (EN 60825-1)2
Max. Ambient Light10,000 Lux
Light Spot Diameter0.8 mm
Focus Distance110 mm

Electrical Data

Supply Voltage10 … 30 V DC
Current Consumption (Ub = 24 V)< 30 mA
Switching Frequency1,500 Hz
Response Time333 µs
Temperature Drift< 15 µm/K
Temperature Range-25 … 60 °C
Switching Output Voltage Drop< 2.5 V
PNP Switching Output/Switching Current200 mA
PNP Contamination Output/Switching Current50 mA
Short Circuit Protectionyes
Reverse Polarity Protectionyes
Overload Protectionyes
Protection ClassIII

Mechanical Data

Setting MethodPotentiometer
Housing MaterialPlastic
Full Encapsulationyes
Degree of ProtectionIP67
ConnectionM12 × 1; 4-pin

Output

Contamination Outputyes
PNP NOyes

Downloads

Datasheet : Wenglor YP09PBV3 Laser Distance Sensor High Precision
