Description

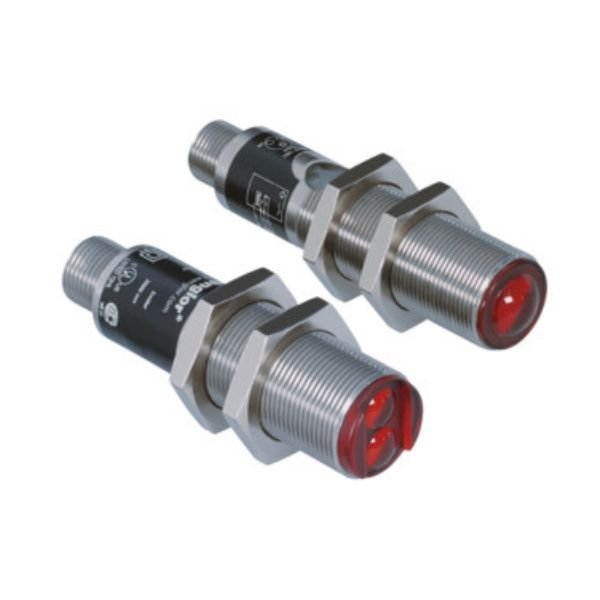

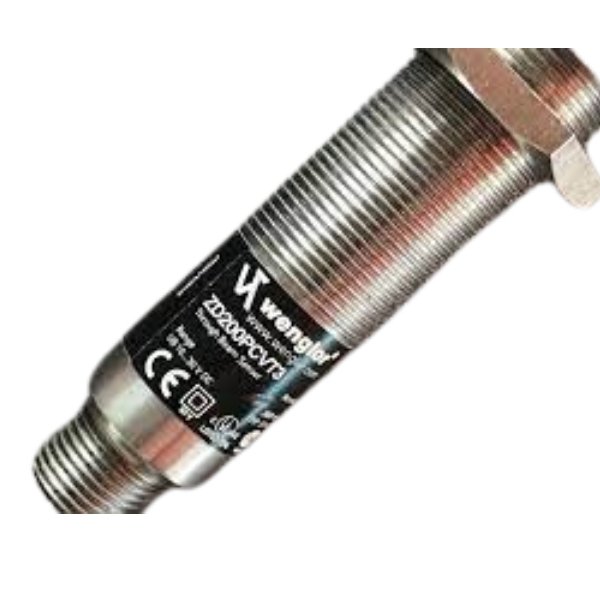

Wenglor ZD200PCVT3 Through Beam Sensor is best suited for use in industrial environments. Thanks to their large working range, the devices demonstrate excellent functional reliability in highly contaminated environments. The sensors can be checked for correct functioning via the test input.
Optical Data Wenglor ZD200PCVT3 Through Beam Sensor:
- Range 20,000 mm
- Smallest Recognizable Part 250 µm
- Switching Hysteresis < 15 %
- Light Source Laser (red)
- Service Life (T = +25 °C) 100,000 h
- Laser Class (EN 60825-1) 2
- Max. Ambient Light 10,000 Lux
- Opening Angle 12 °
Electrical Data:
- Sensor Type Receiver
- Supply Voltage 10 … 30 V DC
- Current Consumption (Ub = 24 V) < 15 mA
- Switching Frequency 3 kHz
- Response Time 166 µs
- Temperature Drift < 10 %
- Temperature Range -25 … 60 °C
- Switching Output Voltage Drop < 2.5 V
- Switching Output/Switching Current 200 mA
- Short Circuit and Overload Protection yes
- Reverse Polarity Protection yes
- Teach Mode NT, MT
- Protection Class III
Mechanical Data:
- Setting Method Teach-In
- Housing Material Stainless Steel
- Full Encapsulation yes
- Degree of Protection IP67
- Connection M12 × 1; 4-pin
- Safety-relevant Data
- MTTFd (EN ISO 13849-1) 2,409.91 a
Output:
- Contamination Output yes
- PNP NC yes
Adjustable Parameters:
- Circuit NC
- NC/NO
- NO
