Description

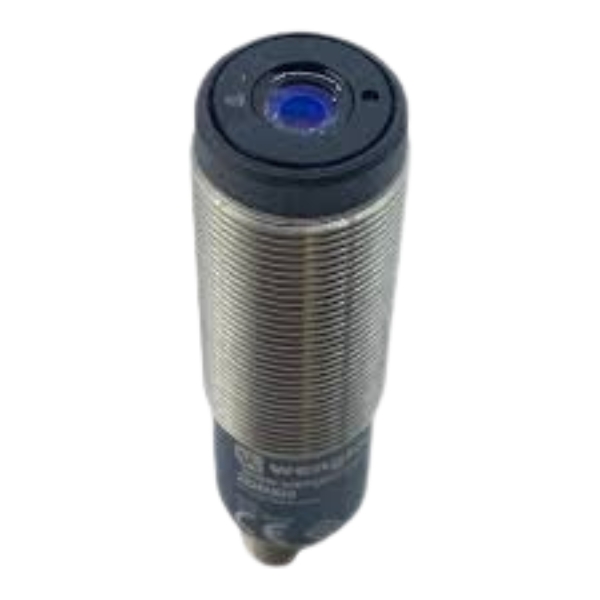

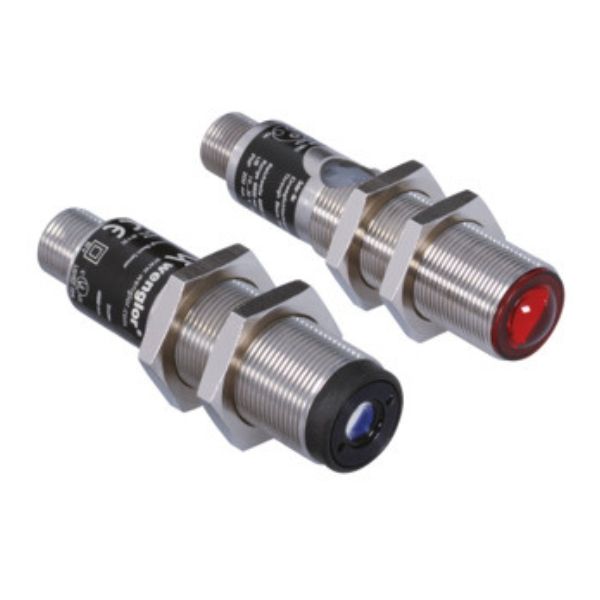

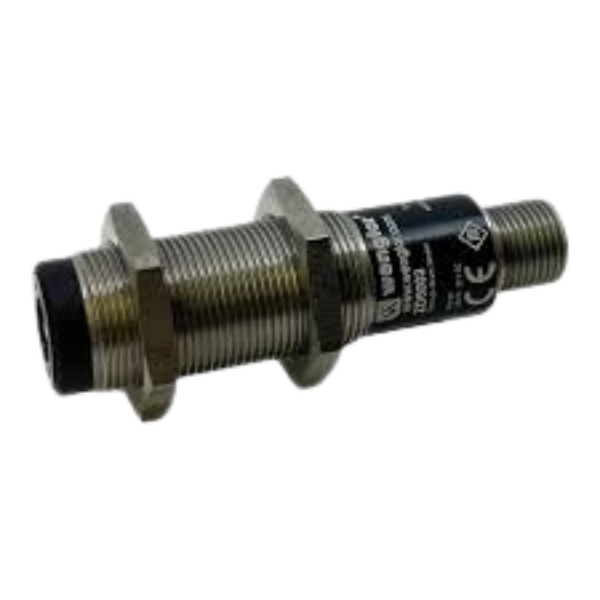

Wenglor ZD6003 Through Beam Sensor sensors are best suited for use in industrial environments. Thanks to their large working range, the devices demonstrate excellent functional reliability in highly contaminated environments. The sensors can be checked for correct functioning via the test input.

Optical Data Wenglor ZD6003 Through Beam Sensor:

Range 60,000 mm
Light Source Laser (red)
Wavelength 655 nm
Service Life (T = +25 °C) 100,000 h
Laser Class (EN 60825-1) 2
Beam Divergence 0.5 mrad

Electrical Data:

Sensor Type Emitter
Supply Voltage 10 … 30 V DC
Current Consumption (Ub = 24 V) < 15 mA
Temperature Drift < 10 %
Temperature Range -25 … 60 °C
Reverse Polarity Protection yes
Protection Class III
FDA Accession Number 0820361-000

Mechanical Data:

Housing Material Stainless Steel
Full Encapsulation yes
Degree of Protection IP67
Connection M12 × 1; 4-pin

Safety-relevant Data Wenglor ZD6003: MTTFd (EN ISO 13849-1) 3,706.78 a

Features

Adjustable focus
Range: 60 m

Applications

Dimensions specified in mm (1 mm = 0.03937″)

1 = Transmitter Diode

Wrench Size

Specifications

Optical Data
Range	60,000 mm
Light Source	Laser (red)
Wavelength	655 nm
Service Life (T = +25 °C)	100,000 h
Laser Class (EN 60825-1)	2
Beam Divergence	0.5 mrad

Electrical Data
Sensor Type	Emitter
Supply Voltage	10 … 30 V DC
Current Consumption (Ub = 24 V)	< 15 mA
Temperature Drift	< 10 %
Temperature Range	-25 … 60 °C
Reverse Polarity Protection	yes
Protection Class	III
FDA Accession Number	0820361-000
