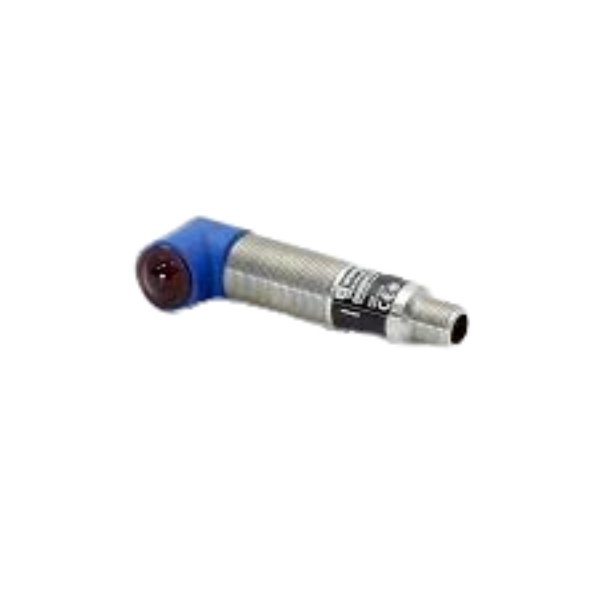

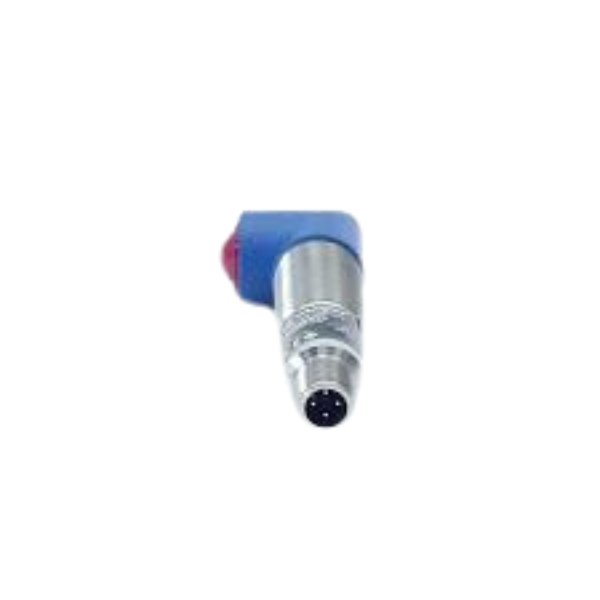

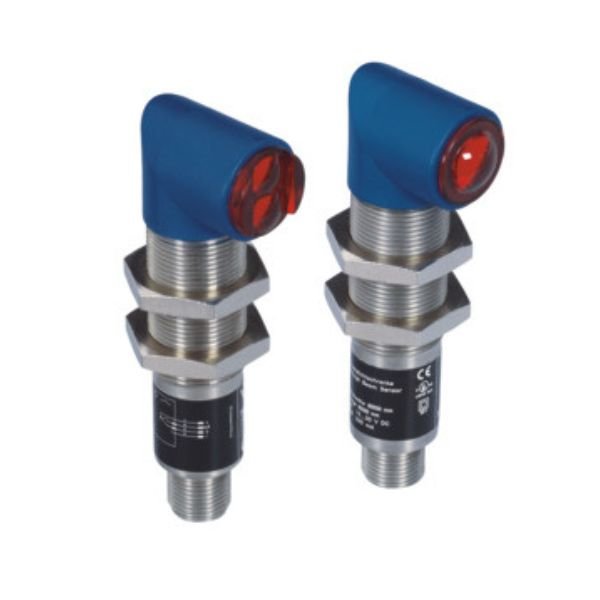

Wenglor ZW200PCT3 Through Beam Sensor

Product Note:

No product notes available.

Description

Wenglor ZW200PCT3 Through Beam Sensor

Wenglor ZW200PCT3 Through Beam Sensor these through-beam sensors are best suited for use in industrial environments. Thanks to their large working range, the devices demonstrate excellent functional reliability in highly contaminated environments. The sensors can be checked for correct functioning via the test input.

Optical Data:

  • Range 20,000 mm
  • Smallest Recognizable Part 250 µm
  • Switching Hysteresis  < 15 %
  • Light Source Laser (red)
  • Service Life (T = +25 °C) 100,000 h
  • Laser Class (EN 60825-1) 2
  • Max. Ambient Light 10,000 Lux
  • Opening Angle 12 °

Electrical Data :

  • Sensor Type Receiver
  • Supply Voltage 10 … 30 V DC
  • Current Consumption (Ub = 24 V) < 15 mA
  • Switching Frequency 3 kHz
  • Response Time 166 µs
  • On-/Off-Delay (RS-232) 0 … 5 s
  • Temperature Drift < 10 %
  • Temperature Range -25 … 60 °C
  • Switching Output Voltage Drop < 2.5 V
  • Switching Output/Switching Current 200 mA
  • Short Circuit and Overload Protection yes
  • Reverse Polarity Protection yes
  • Lockable yes
  • Teach Mode NT, MT
  • Protection Class III

Mechanical Data:

  • Setting Method Teach-In
  • Housing Material Stainless Steel
  • Full Encapsulation yes
  • Degree of Protection IP67
  • Connection M12 × 1; 4-pin
  • Safety-relevant Data
  • MTTFd (EN ISO 13849-1) 2,385.27 a
  • Output
  • PNP NC yes
  • RS-232 with Adapterbox yes
  • Adjustable parameters
  • Circuit NC
  • NC/NO
  • NO

Features

  • Smallest recognizable part: 0,25 mm
  • Time delay
  • Teach-in, external teach-in

Applications

02 = Contamination Warning
01 = Switching Status Indicator
06 = Teach Button

Specifications

Optical Data

Range20,000 mm
Smallest Recognizable Part250 µm
Switching Hysteresis < 15 %
Light SourceLaser (red)
Service Life (T = +25 °C)100,000 h
Laser Class (EN 60825-1)2
Max. Ambient Light10,000 Lux
Opening Angle12 °

Electrical Data

Sensor TypeReceiver
Supply Voltage10 … 30 V DC
Current Consumption (Ub = 24 V)< 15 mA
Switching Frequency3 kHz
Response Time166 µs
On-/Off-Delay (RS-232)0 … 5 s
Temperature Drift< 10 %
Temperature Range-25 … 60 °C
Switching Output Voltage Drop< 2.5 V
Switching Output/Switching Current200 mA
Short Circuit and Overload Protectionyes
Reverse Polarity Protectionyes
Lockableyes
Teach ModeNT, MT
Protection ClassIII

Mechanical Data

Setting MethodTeach-In
Housing MaterialStainless Steel
Full Encapsulationyes
Degree of ProtectionIP67
ConnectionM12 × 1; 4-pin

Safety-relevant Data

MTTFd (EN ISO 13849-1)2,385.27 a

Output

PNP NCyes
RS-232 with Adapterboxyes

Adjustable parameters

CircuitNC
NC/NO
NO

Downloads

Datasheet : Wenglor ZW200PCT3 Through Beam Sensor
