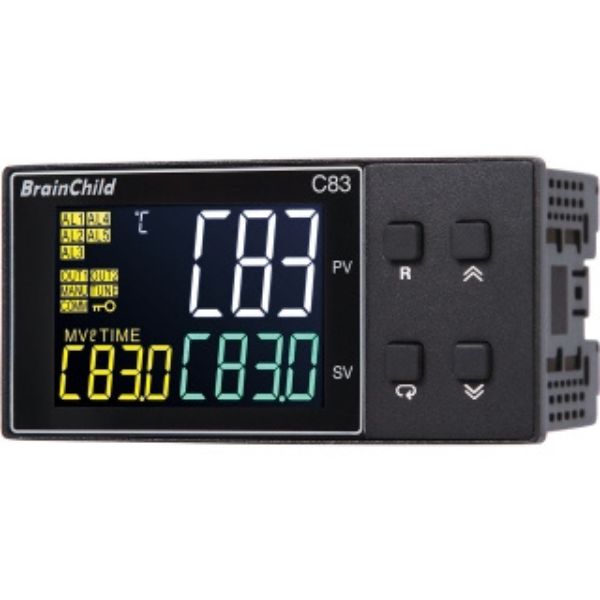

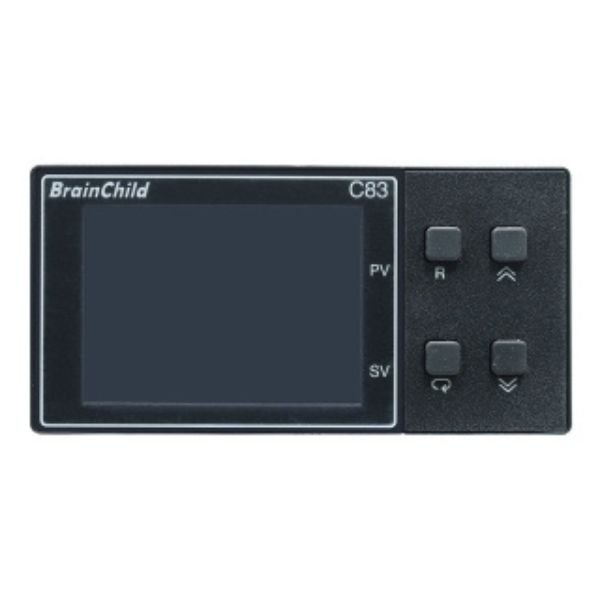

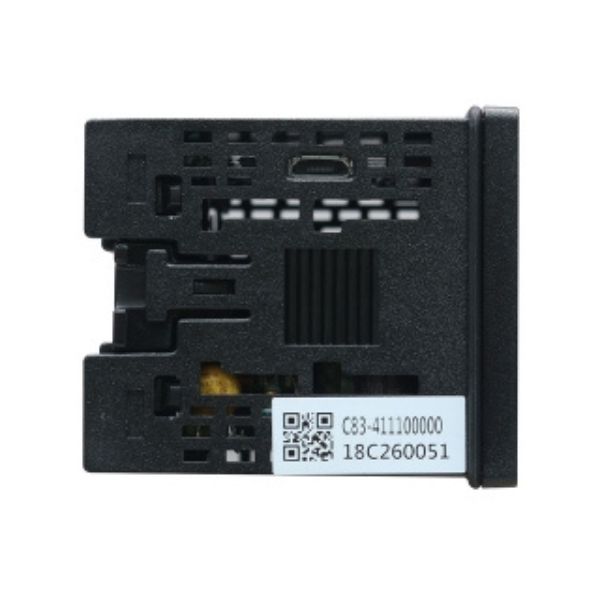

Brainchild C83 Temperature Controller

Brainchild C83 Temperature Controller is a new generation low-cost PID microprocessor-based with Fuzzy logic controller series incorporating two bright easy-to-read LCD Displays which indicate Process value (PV) and Setpoint value (SP).

Brainchild C83 Temperature Controller

Brainchild C83 Temperature Controller the new generation low-cost PID microprocessor-based with Fuzzy logic controller series incorporates two bright easy-to-read LCD Displays which indicate Process value (PV) and Setpoint value (SP). The Fuzzy Logic technology incorporated into this series controller enables a process to reach the predetermined set point in the shortest time with a minimum of overshoot during Start up (Power ON) or external load disturbances.

The new generation low-cost PID microprocessor-based Fuzzy logic controller series incorporate two bright easy-to-read LCD Displays which indicate Process Value (PV) and Setpoint (SP). The Fuzzy Logic technology incorporated into these series controllers enables a process to reach a predetermined set point in the shortest time with a minimum of overshoot during startup (Power ON) or external load disturbances (for example an oven door being opened).

Features

Applications

It is installed on the heating material tube of the injection molding machine to control the temperature of the raw material, effectively control the liquid temperature of the plastic and improve the molding quality of the product.

Installed on the hot runner system for temperature control of runners and gates to stabilize the quality of the plastic.
Temperature control on the mold temperature machine, indirectly adjusting the temperature of the mold by adjusting the temperature of the hot fluid, can improve the production efficiency of the product and reduce the generation of defective products.

Vacuum furnace equipment / vacuum melting / vacuum heat treatment

A new algorithm for PID adjustment using fuzzy rules is used to adjust the PID algorithm to eliminate the PID saturation integral phenomenon when the error is large. When the error is small, the improved PID algorithm is used for adjustment and can be automatically adjusted. Learn and memorize some of the characteristics of the controlled object to optimize the effect

The temperature control of the electric heating cloth package is often used for the heating of the exhaust pipe valve parts of the semiconductor factory, the panel factory, or the special steel cylinder.

In the semiconductor temperature process control program, the heating system of the chamber, such as the decane process, the dichloromethane process

Ceramic sintering furnace:

The heating process on the sintering furnace controls the heating rate to obtain a finished product with better quality and stability.

Electric kiln:

Temperature adjustment during kiln firing to obtain a finished product with better quality and stability.

Dyeing machine:

control the temperature during dyeing to a suitable range, which in turn reduces chromatic aberration and improves the quality of dyed products.

Fiber dryer:

The temperature during drying is controlled within a suitable range to improve the fiber product.

Temperature Controller

Constant temperature and humidity machine
Heating/cooling air conditioning
Pool/bathroom temperature control facility

Specifications

Downloads

Datasheet: Brainchild C83 Temperature Controller
