Brainchild IO-16DO-E Ethernet Modbus IO Module

Product Note:

No product notes available.

Categories: Display, Indicator, and Control, I/O Modules, Others Tags: Brainchild, Display, Display Indicator and Control, I/O Modules, Indicator

Description

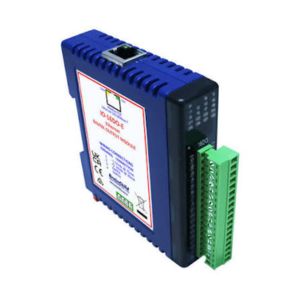

Brainchild IO-16DO-E Ethernet Modbus IO Module

Brainchild IO-16DO-E Ethernet Modbus IO Module This Remote IO module is based on Ethernet Modbus TCP communication for Data Acquisition and Control Systems.
These IO Modules offer good reliability, ease of installation, and easy Maintenance. Extremely cost-effective modules for industrial measurement and monitoring applications. They can be easily added to the existing RS485 or Ethernet Modbus network.

Different types of IO Modules are available for the users to select as per their requirements.

All Modules are having LED indications for monitoring the status of digital inputs & outputs and fault diagnostics. Special modules are available with interchannel isolation between channels.

Modbus TCP modules have an Ethernet interface with Modbus TCP protocol.

Specifications

Parameter	Specification
Digital Outputs	16 Channels (Open Collector NPN)
Max Load Current	$100text{ mA per channel}$
Max Load Voltage	Up to $36text{ V DC}$
Network Interface	10/100 Mbps RJ45 Ethernet port
Industrial Protocols	Modbus TCP (Ethernet) + Modbus RTU / RS-485 secondary option
Isolation	1,500 V RMS (Field-to-Logic isolation)
Watchdog Timer	1 to 255 seconds (Configurable safe-state output)
Status Indicators	Dedicated LEDs for Power, Ethernet link/activity, and Output channels 1–16
Power Supply	$12text{ to }24text{ V DC}$ ( $pm 10%$ )
Form Factor & Mount	Compact plastic housing with 35 mm DIN-rail clip
Operating Temp	-10°C to +50°C

Features

1. High-Density Industrial Outputs

16 NPN Open-Collector Channels: Provides 16 discrete sink outputs capable of switching up to $36text{ V DC}$ at $100text{ mA per channel}$ .
Inductive Load Protection: Suitable for directly switching small relays, solenoid coils, alarm beacons, and status indicators.

2. Dual Ethernet & Serial Connectivity

Native Modbus TCP (RJ45): Connects to standard 10/100 Mbps industrial Ethernet networks for low-latency SCADA and PLC control.
Secondary Modbus RTU (RS-485): Includes a secondary RS-485 serial port allowing dual-protocol integration or local backup control loops.

Applications

Distributed Factory Automation: Actuating pneumatic valves, motor starters, and conveyor diverters directly over plant Ethernet networks.
Remote SCADA Control: Driving visual indicators, audible sirens, and process interlocks across widely distributed facility networks.
PLC Channel Expansion: Cost-effectively expanding the discrete output count of Ethernet PLCs or PACs without needing expensive backplane racks.

Brainchild IO-16DO-E Ethernet Modbus IO Module

Brainchild IO-16DO-E Ethernet Modbus IO Module This Remote IO Modules based on Ethernet Modbus TCP communication for Data Acquisition and Control Systems.

Product Note:

No product notes available.

Categories: Display, Indicator, and Control, I/O Modules, Others Tags: Brainchild, Display, Display Indicator and Control, I/O Modules, Indicator

Brainchild IO-16DO-E Ethernet Modbus IO Module

Description

Brainchild IO-16DO-E Ethernet Modbus IO Module

Different types of IO Modules are available for the users to select as per their requirements.

All Modules are having LED indications for monitoring the status of digital inputs & outputs and fault diagnostics. Special modules are available with interchannel isolation between channels.

Modbus TCP modules have an Ethernet interface with Modbus TCP protocol.

Specifications

Parameter	Specification
Digital Outputs	16 Channels (Open Collector NPN)
Max Load Current	$100text{ mA per channel}$
Max Load Voltage	Up to $36text{ V DC}$
Network Interface	10/100 Mbps RJ45 Ethernet port
Industrial Protocols	Modbus TCP (Ethernet) + Modbus RTU / RS-485 secondary option
Isolation	1,500 V RMS (Field-to-Logic isolation)
Watchdog Timer	1 to 255 seconds (Configurable safe-state output)
Status Indicators	Dedicated LEDs for Power, Ethernet link/activity, and Output channels 1–16
Power Supply	$12text{ to }24text{ V DC}$ ( $pm 10%$ )
Form Factor & Mount	Compact plastic housing with 35 mm DIN-rail clip
Operating Temp	-10°C to +50°C

Features

1. High-Density Industrial Outputs

16 NPN Open-Collector Channels: Provides 16 discrete sink outputs capable of switching up to $36text{ V DC}$ at $100text{ mA per channel}$ .
Inductive Load Protection: Suitable for directly switching small relays, solenoid coils, alarm beacons, and status indicators.

2. Dual Ethernet & Serial Connectivity

Native Modbus TCP (RJ45): Connects to standard 10/100 Mbps industrial Ethernet networks for low-latency SCADA and PLC control.
Secondary Modbus RTU (RS-485): Includes a secondary RS-485 serial port allowing dual-protocol integration or local backup control loops.

Applications

Distributed Factory Automation: Actuating pneumatic valves, motor starters, and conveyor diverters directly over plant Ethernet networks.
Remote SCADA Control: Driving visual indicators, audible sirens, and process interlocks across widely distributed facility networks.
PLC Channel Expansion: Cost-effectively expanding the discrete output count of Ethernet PLCs or PACs without needing expensive backplane racks.
