Brainchild US-101-485 USB Converter

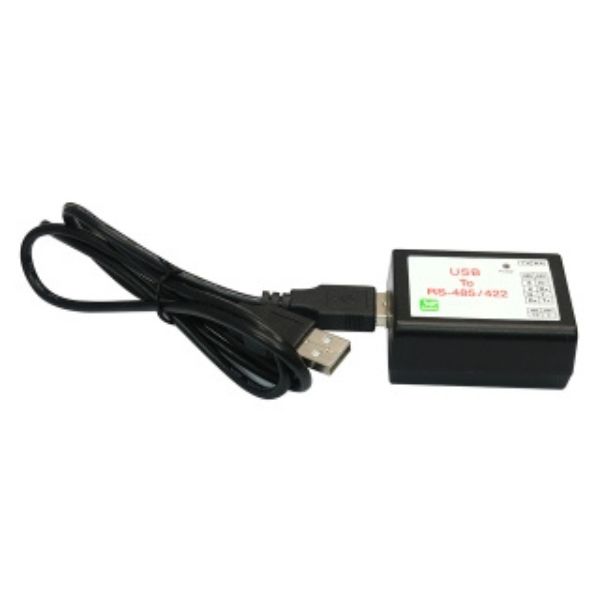

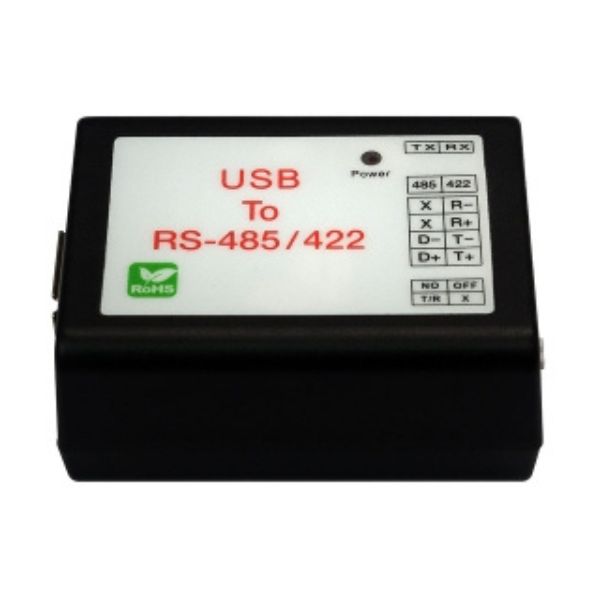

Brainchild US-101-485 USB Converter it is converted the USB to RS-485/422, so can be easily adapted for industrial machines with RS-485/422 interfaces. US-101-485 is compatible fully compatible with the USB V1.0～2.0. US-101-485’s electrical power is from a USB port and doesn’t need any power adapter. You can connect a PC USB port or USB hub to US-101-485 via the USB cable and High-Speed RS-485/422 serial port which features easy connectivity for traditional serial devices in your working environments.

Environmental

Operating Temperature: 0~60℃
Storage Temperature: -20 to 85℃
Operating Humidity: 5~95 % RH

Regulatory Approvals

EMC: FCC Class A, CE Class A

Serial Port

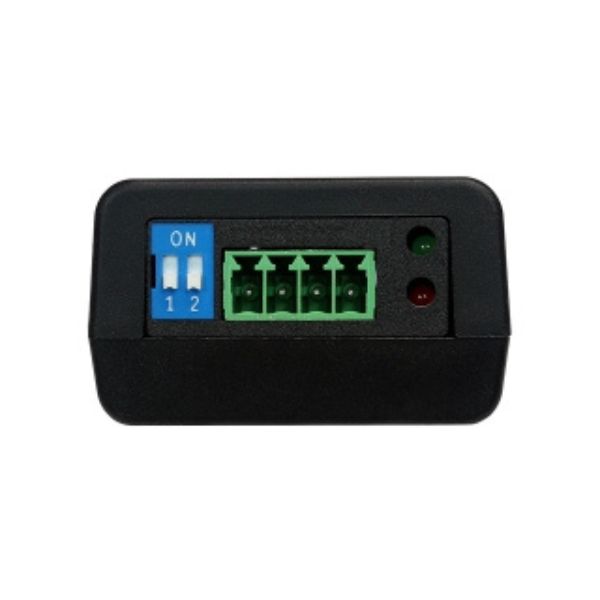

Port	1 port ( Terminal Block )
RS-422	RxD+ , RxD- ,TxD+ , TxD- .
RS-485	Data+ , Data-
RS-422, RS-485	Auto-Detect
RS-422, RS-485	Surge Protect
Receive buffer	576 Byte
Transmit buffer	640 Byte
Baud Rate	300 ~ 230.4 Kbps
Flow Control	X-On / X-Off or Hardware

Features

Chipset : Silicon Laboratories CP2102
Compliant : USB 1.0 , 1.1 , 2.0

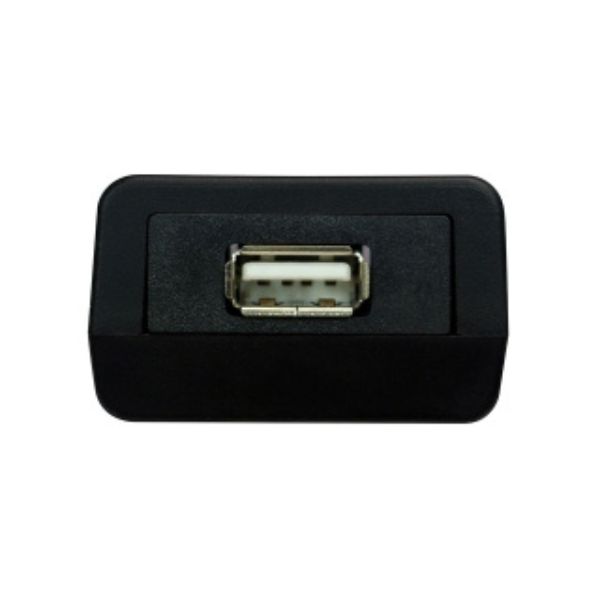

Connector : USB type A
Baud Rates : Full speed 12 Mbps

Applications

Printed circuit board

Food and Pharmaceutical

Plastic injection molding

Textile industry

Laboratory

Specifications

USB
Chipset	Silicon Laboratories CP2102
Compliant	USB 1.0 , 1.1 , 2.0
Connector	USB type A
Baud Rates	Full speed 12 Mbps

Serial Port
Port	1 port ( Terminal Block )
RS-422	RxD+ , RxD- ,TxD+ , TxD- .
RS-485	Data+ , Data-
RS-422 , RS-485	Auto Detect
RS-422 , RS-485	Surge Protect
Receive buffer	576 Byte
Transmit buffer	640 Byte
Baud Rate	300 ~ 230.4 K bps
Flow Control	X-On / X-Off or Hardware
