Description

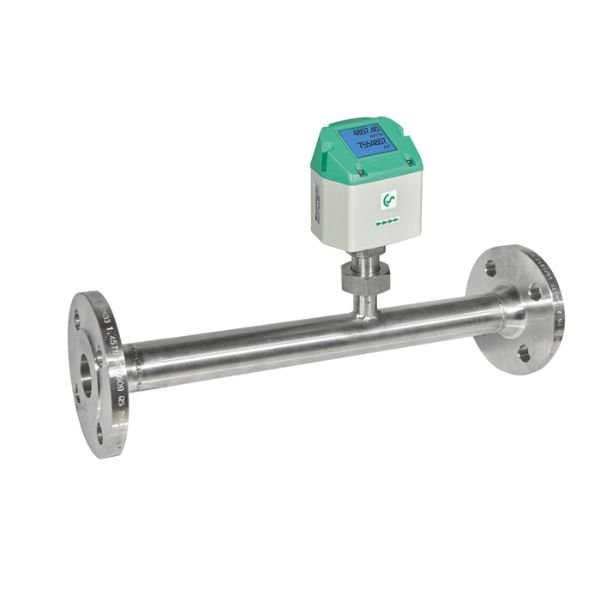

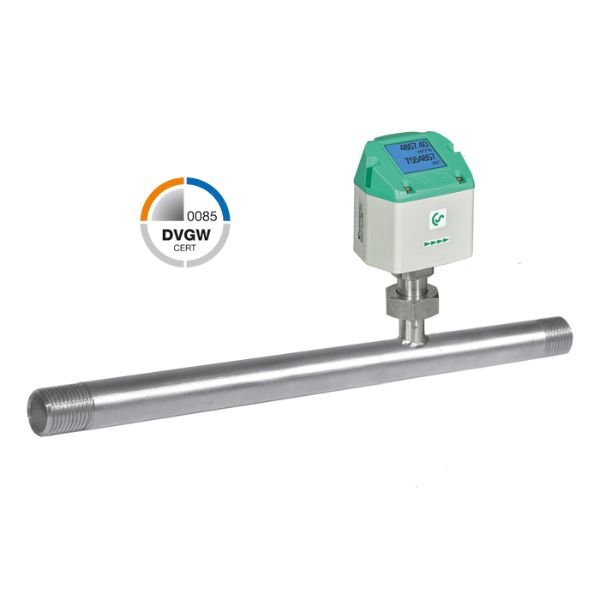

CS Instruments VA 520 Thermal Mass Flow Meter for compressed air as well as various technical gases. Record and reduce your energy costs and increase your sustainability with the VA 520. Monitor your consumption and analyze your leakages with a permanently installed flow meter in distribution stations, in front of individual departments, or for billing purposes of individual consumers.

Advantages CS Instruments VA 520 Thermal Mass Flow Meter:

Measurement of mass flow rate, the output of standard volume flow rate
High accuracy for both small and large flows
Pressure and temperature are compensated by the thermal mass flow principle

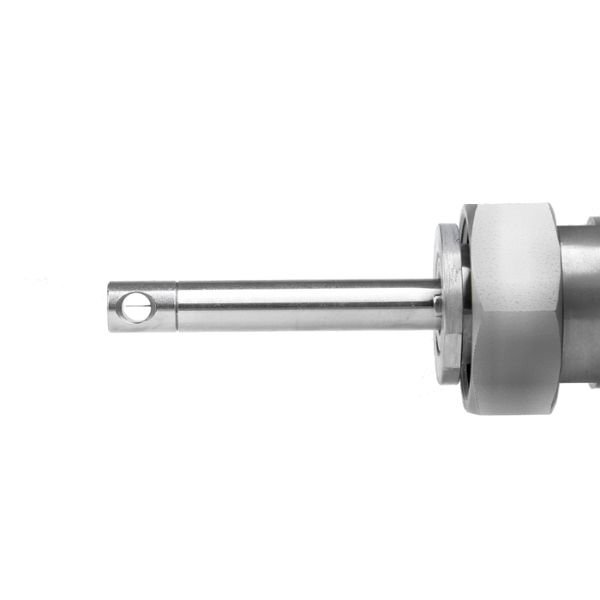

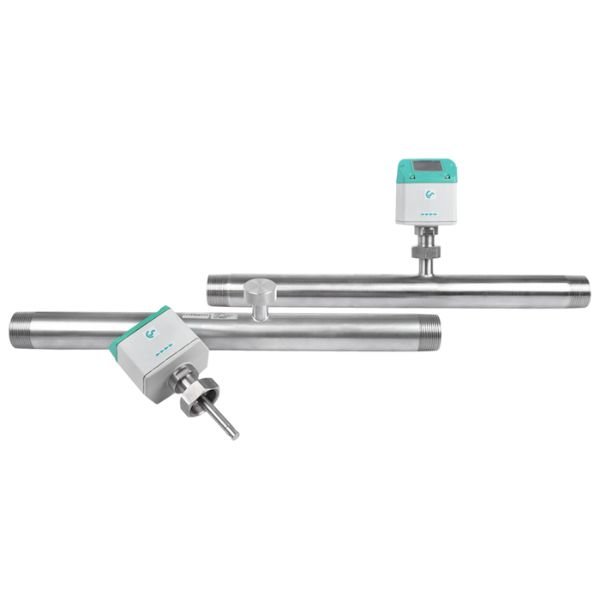

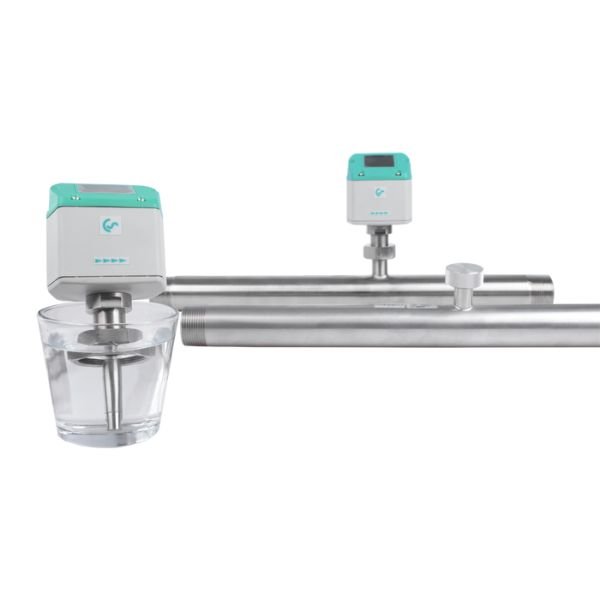

Easy installation and removal of the sensor, the integrated measuring section can remain in the line for cleaning or recalibration of the sensor and can simply be closed with a sealing cap
No moving parts, therefore low maintenance
Vanishingly low-pressure loss due to vanishingly low blockage of the diameter
Can be used for compressed air and non-corrosive gases such as nitrogen, oxygen, argon, helium, etc.

Features

Measurement of mass flow rate, output of standard volume flow rate
High accuracy for both small and large flows
Pressure and temperature compensated by the thermal mass flow principle
Easy installation and removal of the sensor, the integrated measuring section can remain in the line for cleaning or recalibration of the sensor and can simply be closed with a sealing cap
No moving parts, therefore low maintenance
Vanishingly low pressure loss due to vanishingly low blockage of the diameter
Can be used for compressed air and non-corrosive gases such as nitrogen, oxygen, argon, helium, etc.

Applications

Underwater Noise Protection / Bubble Curtain
Efficiency-FAD analysis for compressors
Flow meters for professionals – optionally with ATEX approval
Flow meters for oxidizing gases
Consumption sensors and flow meters for inert gases
Flow meters for toxic and corrosive gases
Consumption meter for oxygen, hydrogen, carbon dioxide
Consumption meter for nitrogen in tire vulcanization
Consumption meter for gas measurement in the aerospace industry
Flow and consumption meter for gas measurement in the automotive industry
Consumption meter for gas measurement in metal processing
Consumption sensor for flow measurement of oxygen
Consumption meter for argon and nitrogen in chemistry
Nitrogen consumption measurement in the food industry
Inline consumption meter for nitrogen generators
Flow measurement in gas mixtures as source gas
Food gas measurement
Measurement of the flow rate in a compressed air production line in the cosmetics sector

Specifications

04…20 mA, pulse and a Modbus RTU (RS 485) interface as standard, optional interfaces such as Modbus TCP (Ethernet), PoE, M-Bus
Optional interfaces such as Modbus TCP (Ethernet), PoE, M-Bus
Optional: Bi-directional measurement
Pressure range up to 40 bar
Temperature range from -30 to 80°C
Protection class IP65

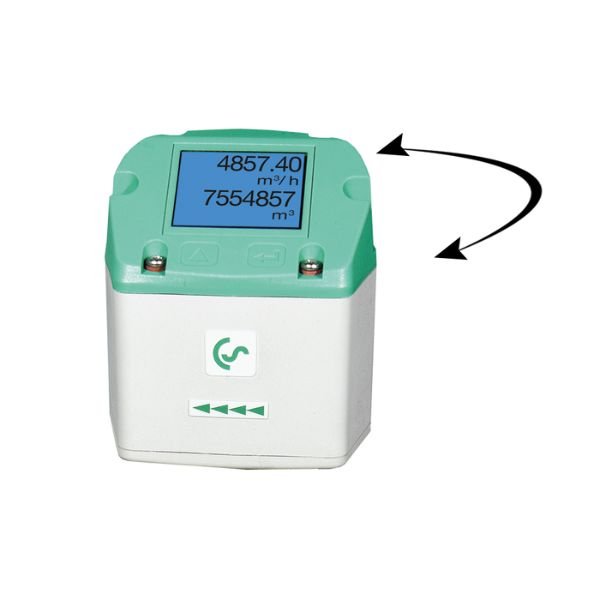

Integrated display to show the measured values

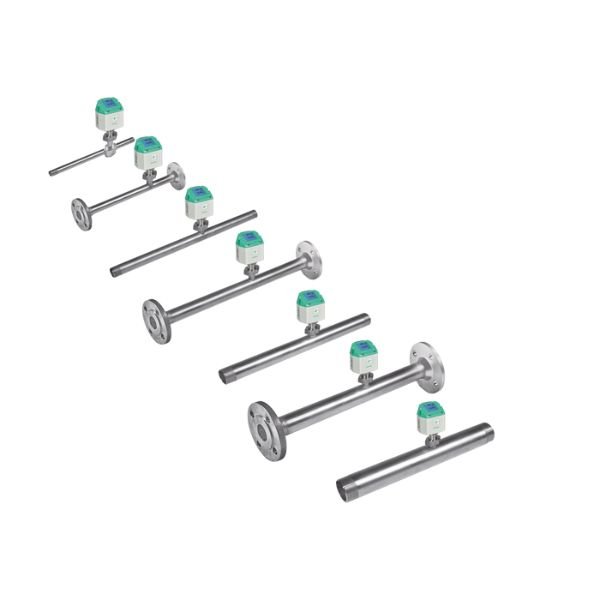

Can be used from DN 8 to DN 80

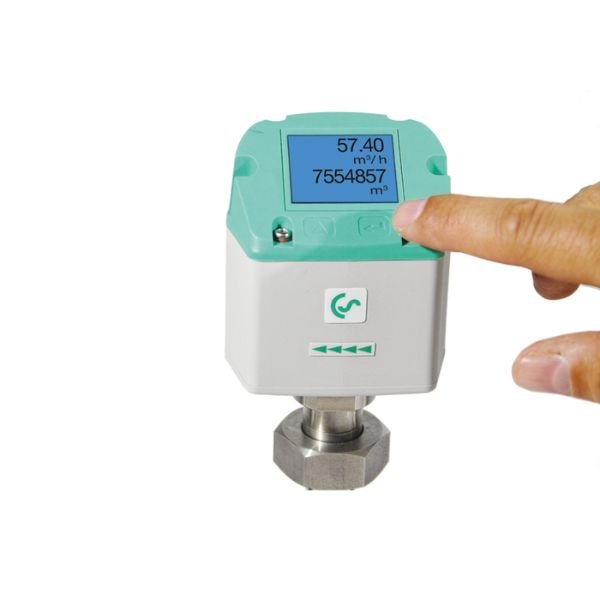

Settings adjustable via the keys of the display
Main counter reading can be reset via the display
For velocities up to 224 Nm/s
Highly accurate with an accuracy of ± 1.5% or ± 1% of the measured value – as well as ± 0.3% of the final value
