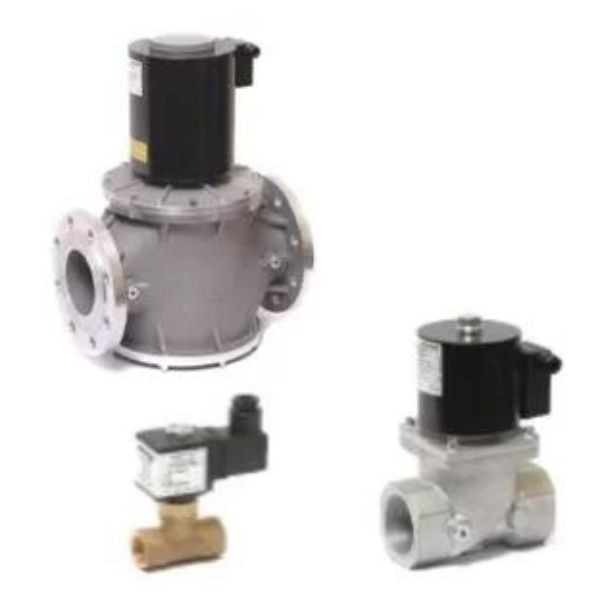

Delta-Elektrogas VMR Safety Solenoid Valves is a fast opening single-stage solenoid valve, normally closed (opens when energized). This type of device is suitable for air or gas blocking and releasing controls, which are required in gas power burners, atmospheric gas boilers, industrial kilns, and other gas consuming
1961 – Elettromeccanica DELTA s.p.a. was founded in Arcade (TV) with the aim of designing and manufacturing oil burners with mechanical atomization. 2011 – Elektrogas range celebrates 30 years in the market, with a product portfolio that now includes control valves, filters, gas regulators, servomotors, and combustion controllers. Today – Elettromeccanica DELTA, with its brands Elektrogas and Deltapumps, is a proud manufacturer of safety and control products for gas firing systems and fuel oil appliances, successfully installed in more than 60 countries in the world.
The valves are made of aluminum alloy die-cast (or hot-pressed brass for OTN versions), with a
wide range for inlet/outlet connections from DN 8 (1/4”) up to DN 150 (6”).
Sealings are made of NBR-based rubber certified for use with gas (EN 549).
Suitable for use with air and non-aggressive gases included in the 1, 2 and 3 families (EN 437).
Special versions suitable for aggressive gases, free of non-ferrous metals and with FPM seals.
Pipe connections meet Group 2 and backpressure sealing is compliant with Class A, according
to EN161 requirements.
The whole range can be provided in Ex-proof execution, for use in Zones 2 and 22, according to
2014/34/EU Directive (ATEX).
The valve is open only when energized: if, for any reason, power supply goes down, the valve
closes immediately (intrinsic safe).
Suitable for heavy-duty cycle operation and qualified for continuous service (100% ED).
Equipped with flow rate adjustment (except brass models).
An incorporated fine mesh filter protects the valve seat and disc as well as downstream
components and prevents dirty contamination (except brass models and 6 bar).
Provided with G1/8 connection to fit a proof of closure switch or a visual indicator.
Provided with 1/4″ pressure gauge on two sides in the inlet chamber (except brass models), to
connect manometers, pressure switches, leakage detectors or other gas equipments. Flanged
models are provided with gauges also in the outlet chamber.
The coils are provided with terminal box or with ISO 4400 plug. Both systems are provided with
suitable cable gland to avoid water and dirty contamination.
All components are designed to withstand any mechanical, chemical and thermal condition
occurring during typical service. Effective impregnation and surface treatments have been used
to improve mechanical sturdiness, sealing and resistance to corrosion of the components.
Valves are 100% tested by computerized testing machineries and are fully warranted.
The VMR type valve is a safety shutting device using auxiliary power supply.
When it is de-energized, the spring pushes on the seal disc, keeping the gas passage closed.
Now, the inlet chamber is under the gas line pressure which forces on the disc, increasing the
closing function and improving the seal.
When the coil is powered the valve opens rapidly, against the strength of the spring and gas
pressure. The flow may be adjusted using the regulating screw on the top (see the installation
and service instructions).
If the power supply is shut off, the valve rapidly closes, interrupting the gas flow.
This kind of valve is normally installed as safety and regulating device in gas trains, for industrial
applications and gas firing systems
Connections Internal threaded ISO 7-1 from Rp1/4 to Rp2½ or
ANSI-ASME B1.20 from 1/4”NPT to 2”½NPT
Flanged ISO 7005 PN16 from DN40 to DN150 or
ANSI-ASA-ASME B16.5 class 150 from 2” to 6”
Voltage ratings 230 VAC 50/60 Hz
120 VAC 50/60 Hz
110 VAC 50/60 Hz
Voltage tolerance -15% to +10%
Ambient temperature -15°C to +60°C (+5°F to +140°F)
Max. operating pressure 200 mbar (3 psig)
360 mbar (5 psig)
500 mbar (7 psig)
6 bar * (90 psig)
Body test pressure 1 bar (15 psig)
9 bar * (130 psig)
Closing time < 1 second
Opening time < 1 second
Gas strainer 600 µm (0.02 in)
(except brass models and 6 bar)
Enclosure IP54 (NEMA 3)
optional IP65 with cable (NEMA 4)
Cable gland M20x1,5 for terminal box
PG 9 for ISO plug
Wires cross-section 2,5 mm2 max. (AWG 12) for terminal board
1,5 mm2 max. (AWG 14) for ISO plug
Electrical safety Class I (EN 60335-1)
Coil winding insulation Class H (200°C, 392°F)
Coil thermal resistance Class F (155°C, 311°F)
Materials in contact with gas Aluminium alloy, Brass, Stainless steel, Plated steel
Anaerobic adhesive,Nitrile rubber (NBR),
