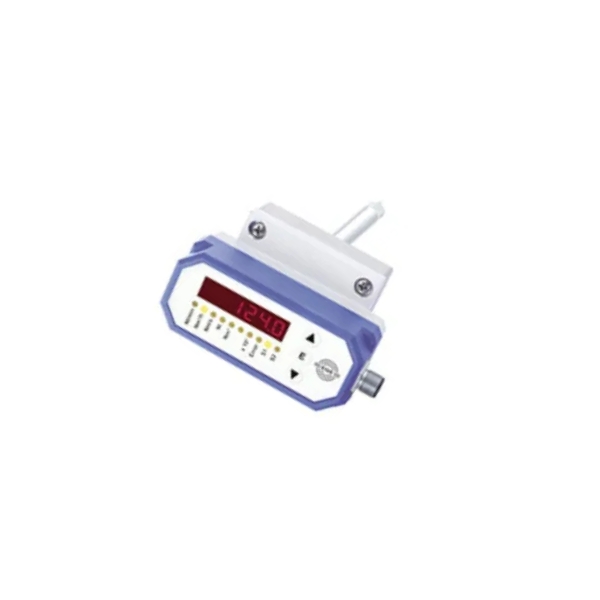

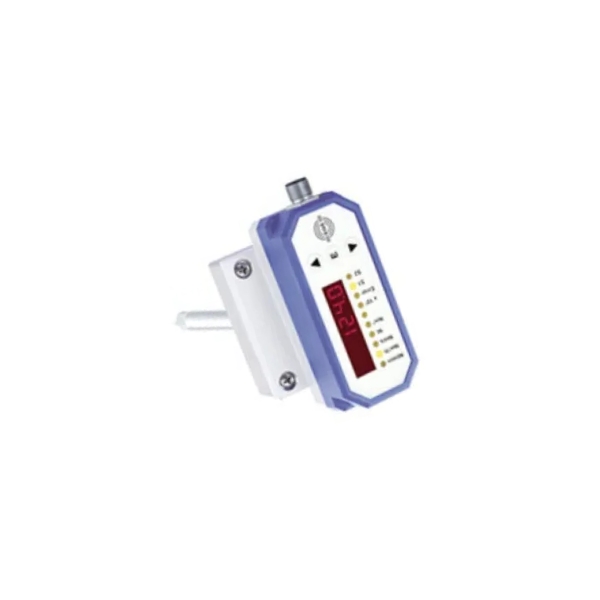

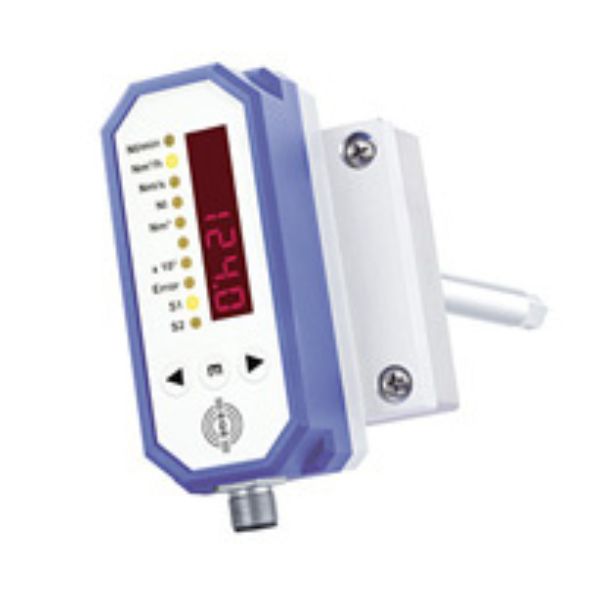

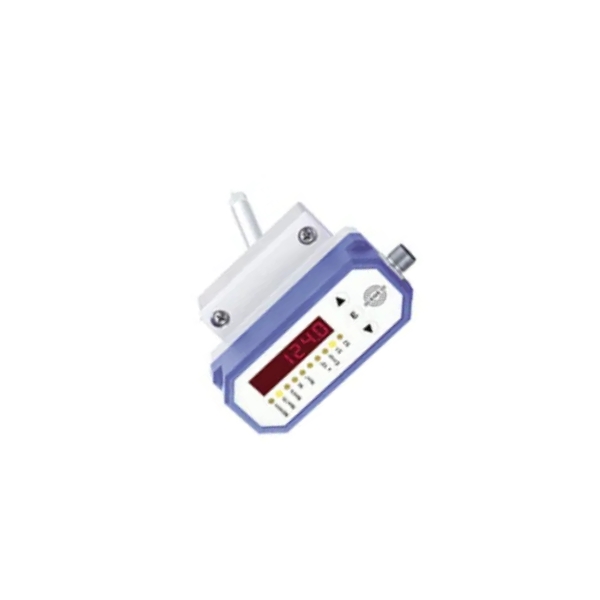

EGE IO-Link Programmable air flow sensor LDS 1000

The LDS 1000 GAPL detects air flow, pressure and temperature in compressed air networks.

The LDS 1000 GAPL detects air flow, pressure and temperature in compressed air networks. It displays the current air consumption in an easy-to-read display and responds quickly to any changes in flow speed. At the same time, the sensor can be used to measure air consumed in standard liters or standard cubic meters.

Features

• Mass flow measurement of air
• Consumption measurement in compressed air networks
• Pressure- and temperature measurement
• Pipe diameter configurable
• Manipulation detection

Applications

The LDS 1000 GAPL detects air flow, pressure and temperature in compressed air networks. It displays the current air consumption in an easy-to-read display and responds quickly to any changes in flow speed. At the same time, the sensor can be used to measure air consumed in standard liters or standard cubic meters.

Specifications

  • Detection range air flow [Nm3/h]
  • Temperature [°C] 0.0…60.0
  • Pressure [bar abs.] 0.0…14.0
  • ID-No. P11388
  • Type LDS 1000 GAPL
  • Flow deviations 2
  • from measurement value [±%] 10
  • from measurement range end value [±%] 1
  • Precision [±%] 2
  • Temperature deviation [±°C] 2
  • Pressure deviation [± bar] 0.1
  • Output S1 PNP-NO/NC, NPN-NO/NC,IO-Link, pulse PNP-NO
  • Output S2 PNP-NO/NC, NPN-NO/NC,
  • Analog 4…20 mA, reset input for dosage
  • Supply voltage [V] 18…30 DC
  • Current consumption max. [mA] ≤100
  • Switching current [mA] ≤150
  • Ambient temperature [°C] – 10…+60
  • Medium temperature [°C] 0…+60
  • Start-up time [s] 10
  • Reaction time [s] < 0.3
  • Compressive strength [bar] 11
  • Burst pressure [bar] 16
  • Sensor material Stainless steel AISI 303, aluminium, epoxy, ceramic
  • Housing material Aluminium, PBT, polyester, stainless steel AISI 303
  • Display flow 6-digits, 7-segment red
  • Protection [EN 60529] IP 54
  • Connection M12 connector
  • Programmable functions
    Operating modes: Hysteresis function, window function,
    fault monitoring, pulse output, analog output, dosage function
    Extended functions: Min/ Max/ average value memory,
    customized ID, display configuration, selectable units of
    measurement and standard values, access restrictions
  • Accessories Screw-in union, weld-on union, IOL-Master-Set V1.1

1 The end value of the measuring range depends on the inner pipe diameter. In order to measure with the specified accuracy the air pres-
sure has to take into account. In case of operating outside the functional area, the sensor generates an error message.
2 under reference conditions
