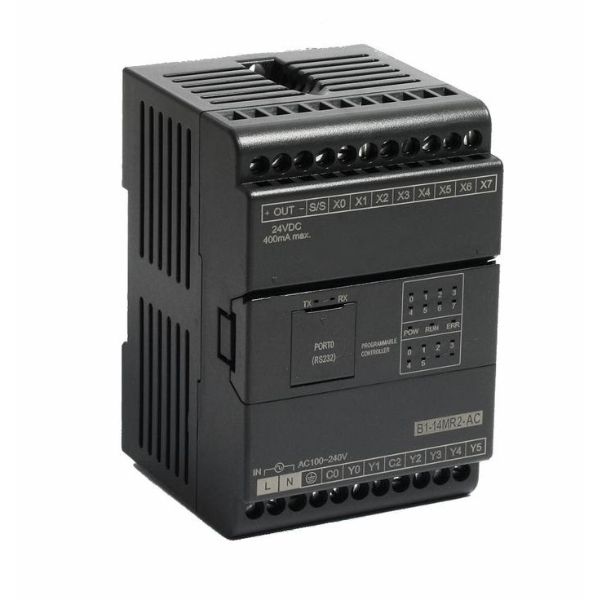

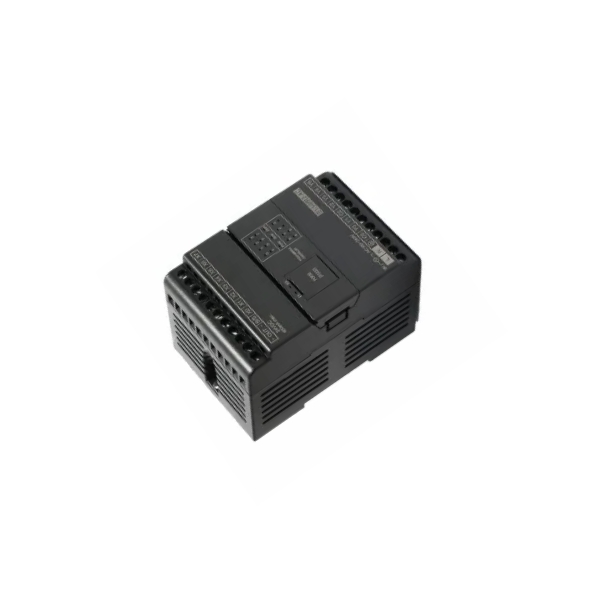

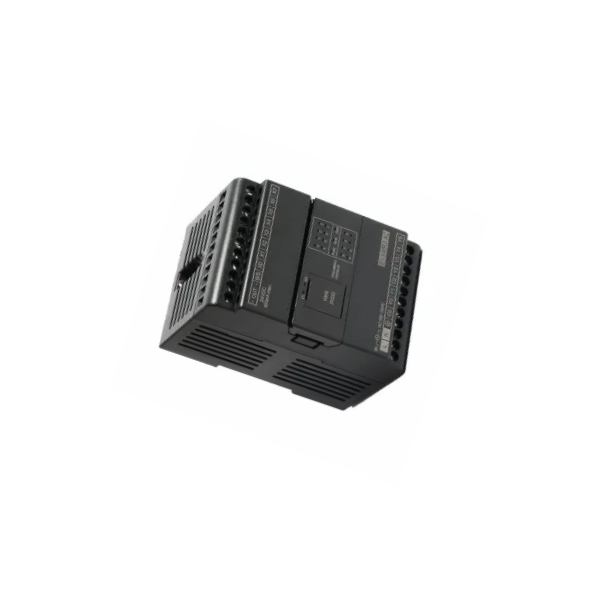

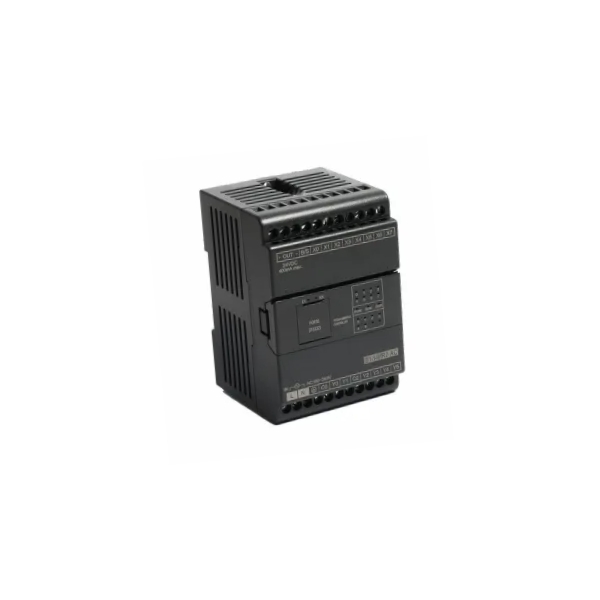

Fatek B1-10M Advanced Main Unit

Fatek B1-10M Advanced Main Unit design incorporates a “System on Chip” (SoC) developed in-house by Fatek Corporation. The BGA chip consists of over 120,000 gates which integrate powerful features such as a Central Processing Unit (CPU), Memory, Hardware Logic Solver (HLS), 5 high-speed communication ports, 4 sets of hardware high-speed counters/timers, 4 axes of high-speed pulse outputs for NC positioning control (with linear interpolation), 16 high-speed interrupts and captured inputs.

Fatek B1-10M Advanced Main Unit design incorporates a “System on Chip” (SoC) developed in-house by Fatek Corporation. The BGA chip consists of over 120,000 gates which integrate powerful features such as a Central Processing Unit (CPU), Memory, Hardware Logic Solver (HLS), 5 high-speed communication ports, 4 sets of hardware high-speed counters/timers, 4 axes of high-speed pulse outputs for NC positioning control (with linear interpolation), 16 high-speed interrupts and captured inputs. The FBs-PLC represents high functionality and reliability with exceptional value compared to other PLCs in its class.

PLC & NC Control in one and Dedicated NC
Positioning Language
NC Position Control is incorporated into the SoC of the FBs-PLC which integrates PLC+NC control into one unit in order for resource sharing and reduces the need for data exchange. The NC position control adopts a special positioning command language, which allows programming by mechanical or electrical units and the changing control of parameters during execution. One single unit has up
to four axes outputs with a maximum frequency of 200KHz (MC) or 920KHz (MN)
and equipped with a multi-axis linear interpolation function. If combined with the
four sets of built-in HHSC, it can achieve a fully closed-loop positioning control.

Features

6 points 24 VDC digital input (4 points 50 KHz, 2 points total 5 KHz), 4 points relay output or transistor output (2 points 50 KHz), built-in 1-2 communication ports, left side is expandable 0-2 modules, right side is expandable up to 80 I/O points

Applications

  • Computer
  • SCADA System
  • Server

Specifications

Specification
B1-10MR
B1-10M(T/J)
Digital input
24VDC
High speed
50KHz
4 points (4-axis single phase or 2-axis A/B phase)
Medium speed
(Total 5KHz)
2 points
Low speed
Digital
output
Relay
AC/DC(2A)
4 points
Transistor
(5~30VDC)
High speed
50KHz (0.3A)
2 points(1-axis singlephase or A/B phase)
Low speed(0.5A)
2 points
Communication Port
Built-in
1 port (RS232 or USB*1) / 2 ports (RS232 + RS485) for B1-xxM◇25
Expandable
2 ports (except B1-xxM◇25)
Calendar
Special order
Built-in power supply
ZPOW14(AC power) or N/A(DC power)
Wiring mechanism
5mm European fixed terminal block

Downloads

Datasheet: Fatek – B1-10M – Main Unit
