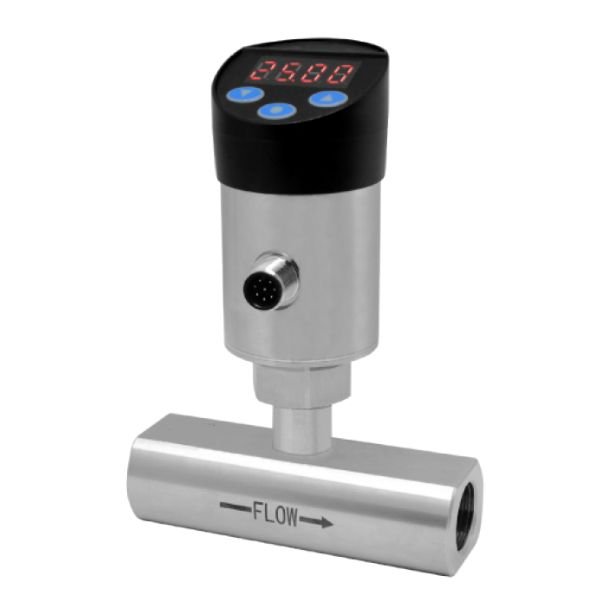

Flowma TGF06C-A Thermal Gas Flowmeter

Flowma TGF06C-A Thermal Gas Flowmeter is based on thermodynamic principle, and can measure air velocity and air volume, there are 2 temperature sensors inside the probe: one for temperature measurement, and the other one as a measuring conveyor after heating.

Temperature difference between the two as a basis for measuring flow rate. When the medium flow rate increases, the temperature difference decreases. The temperature difference is converted to standard signal output after processing which is why the flow rate can be measured by these two sensors. All-metal housing, suitable for a variety of pipe diameters.

Flowma TGF06C-A Thermal Gas Flowmeter operates on the proven principle of thermal dispersion, utilizing two temperature sensors: one reference sensor and one heated sensor. As gas flows past the sensors, heat is carried away from the active element at a rate directly proportional to the mass flow rate. This allows the instrument to measure mass flow directly, eliminating the added cost and complexity of installing separate pressure and temperature transmitters.

Designed specifically to lower total cost of ownership, the Flowma TGF06C-A Thermal Gas Flowmeter features no moving parts, dramatically reducing wear and risk of clogging compared to traditional mechanical meters. The instrument offers precise control, fast response time, and high sensitivity at low flow rates, making it an essential solution for gas consumption tracking, energy auditing, and process optimization across manufacturing facilities.

Specifications

Measurement Principle: Thermal Dispersion
Target Media: Compressed air, Nitrogen, Oxygen, Natural Gas, Biogas, Argon, and inert industrial gases
Flow Velocity Range: 0.1 m/s to 120 m/s
Accuracy: ±1.0% of reading ±0.5% of full scale
Repeatability: ±0.2% of full scale
Power Supply: 24 VDC or 220 VAC
Outputs: 4-20mA current loop, RS485 (Modbus RTU), Pulse/Frequency output

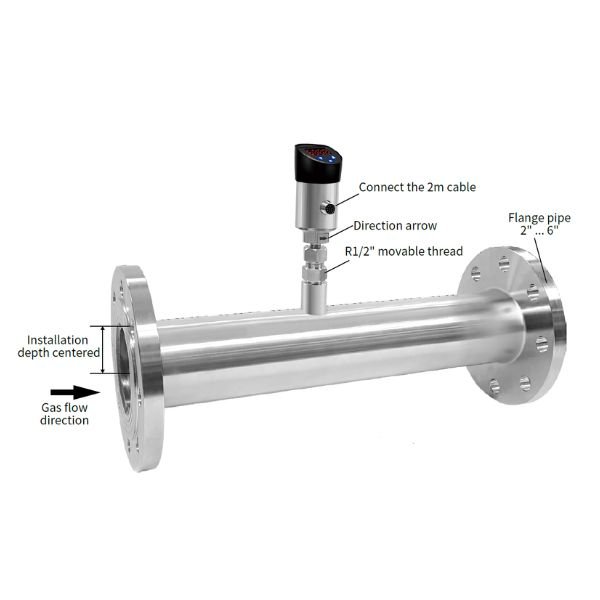

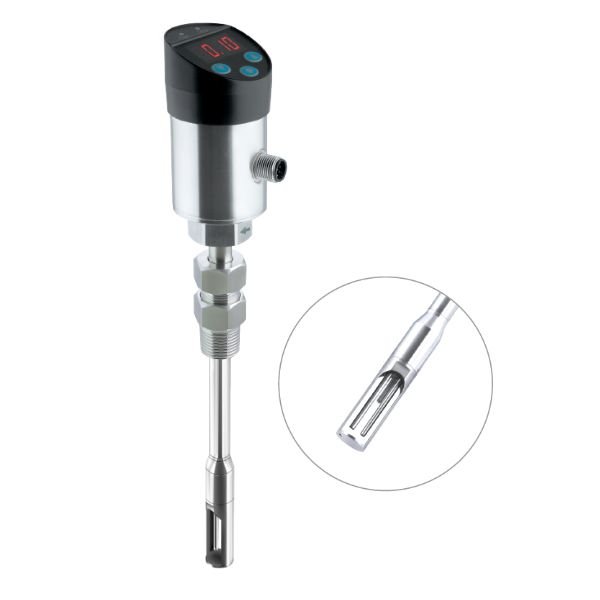

Process Connection: Insertion type or Inline connection options
Operating Temperature: -40°C to +150°C (Medium), -20°C to +60°C (Ambient)
Operating Pressure: Up to 1.6 MPa (Standard), Higher pressure options on request
Sensor Material: 316L Stainless Steel
Housing Enclosure: IP65 / NEMA 4X (Explosion-proof options available)

Features

Direct mass flow measurement without additional pressure or temperature compensation
High accuracy and wide turn-down ratio for reliable operation across varying flow rates
No moving parts design to reduce maintenance overhead and prevent pressure drop
Excellent low-flow sensitivity for leak detection and low-rate gas monitoring
Durable sensor materials resistant to harsh chemical environments and high temperatures
Standard industrial communication outputs including 4-20mA, RS485 Modbus, and pulse outputs
User-friendly digital display for real-time monitoring and field configuration

Applications

Compressed Air Systems: Monitoring air generation and identifying system leaks across manufacturing plants.
Energy Management: Tracking natural gas and LPG consumption for energy efficiency auditing.
Biogas & Environmental: Measuring flow in wastewater treatment plants, landfills, and digesters.
Chemical & Petrochemical: Monitoring process gas lines such as Nitrogen blanketing, Argon, and Oxygen dosing.
HVAC & Boiler Systems: Optimizing fuel-to-air ratios in boilers and industrial heating equipment.
