Fluidwell D013 DIN Panel Mount Flow rate Monitor
Fluidwell D013 DIN Panel Mount Flow rate Monitor

Fluidwell D013 DIN Panel Mount Flow rate Monitor

Watertight DIN panel mount indicators, the better alternative for your existing, not waterproof panel meters.

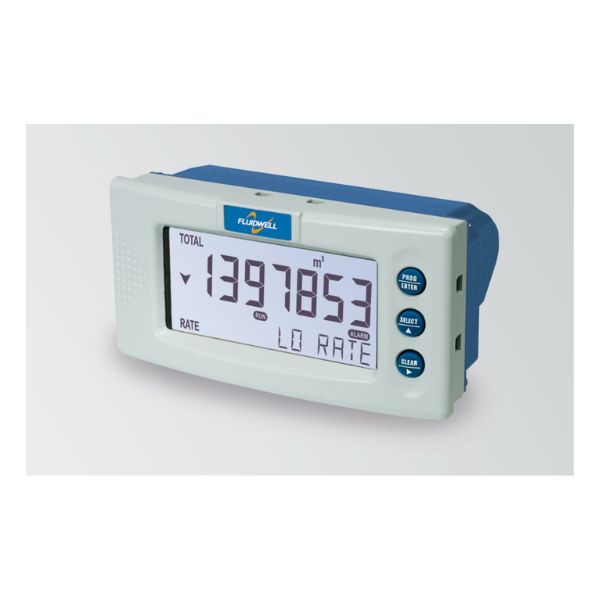

The D013 is a versatile, panel mount flow rate indicator and totalizer with continous flow rate monitoring feature. It offers the facility to set one low flow rate and one high flow rate alarm value. If desired, a delay function can be set up to allow for an incorrect flow rate for a certain period of time.

Get a Quote

Fluidwell D013 DIN Panel Mount Flow rate Monitor

Fluidwell D013 DIN Panel Mount Flow rate Monitor Watertight DIN panel mount indicators, the better alternative for your existing, not waterproof panel meters.

Description of Fluidwell D013 DIN Panel Mount Flow rate Monitor

panel mount flow rate indicator and totalizer with continous flow rate monitoring feature. It offers the facility to set one low flow rate and one high flow rate alarm value. If desired, a delay function can be set up to allow for an incorrect flow rate for a certain period of time.

Advantages
  • Unique, robust IP66, IP67 (NEMA Type4X) panel mount front enclosure made of die cast aluminum, allowing even big jets of water and total immersion.
  • Familiar easy operation with the Fluidwell “Know one, know them all” configuration structure, saving time, cost and aggravation.

Features

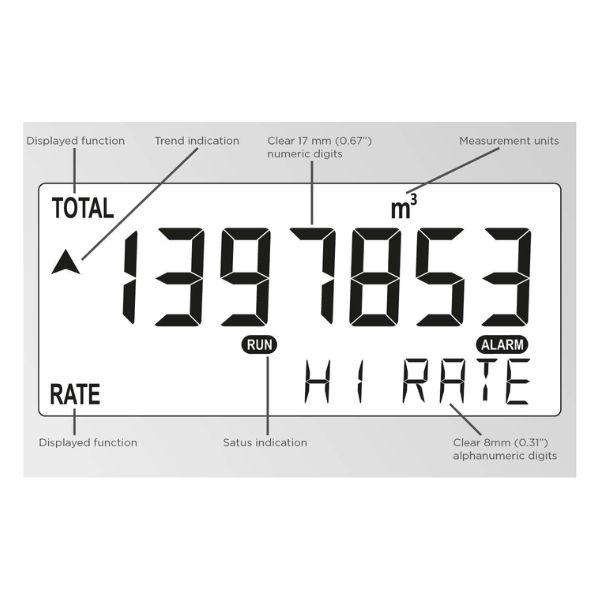

  • Displays flow rate, total, accumulated total and flow rate alarm messages.
  • Two alarm values can be entered: low and high flow rate alarm.
  • Selectable on-screen engineering units; volumetric or mass.
  • Large 17mm (0.67″) digits for flow rate or total.
  • Ability to process all types of flowmeter signals.
  • Auto backup of settings and running totals.
  • Ambient temperature: -40°C to +80°C (-40°F to 176°F).
  • Red flashing LED backlight in case of a flow rate alarm.
  • Easy configuration with clear alphanumerical display.
  • Aluminum DIN front panel of 144 x 72mm (5.67” x 2.83”) according DIN 43700 / IEC 61554.
  • Various accessories are available for this product.

Applications

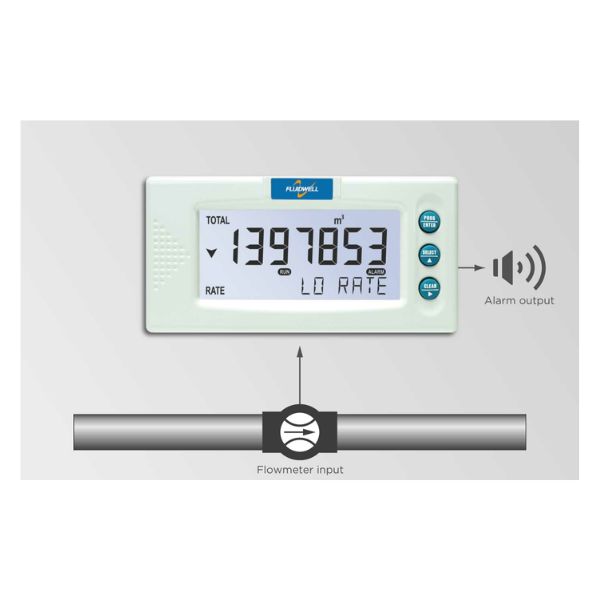

  • The D013 fits in flow measurement applications where continuous flow rate monitoring is important.
  • The D-Series is a DIN-sized display and the better alternative for your existing, not waterproof, front panel mount indicators in extreme weather outdoor applications or e.g. in food industries where working environments are often cleaned with powerful water jets.

Specifications

Signal Inputs

Flowmeter Inputs

  • Pulse type inputs:
    Reed-switch, NAMUR, NPN/PNP pulse, Sine wave (coil), active pulse signal.
  • (0)4 – 20mA.
  • 0 – 10V DC.

Signal Outputs

Pulse outputs

  • None

Alarm outputs

  • Function:Configurable alarm output for high, low or both combined flow rate alarms.
  • Type:One passive signal output, an active signal output or a robust, highly isolated (NO/NC) relay.

Analog outputs

  • None

Supply

Power Supply

  • Basic: 8 – 30V DC (no real sensor supply).
  • Long life Lithium battery.
  • 4 – 20mA input Loop-powered.
  • 24V AC/DC + sensor supply.
  • 115 – 230V AC + sensor supply.

Sensor Supply

  • 2 / 3V DC.
  • 2, 12 & 24V DC.

Hazardous Area

Intrinsically Safe

  • For Intrinsically Safe applications we recommend the F-Series.

Explosion Proof

  • For Explosion Proof applications we recommend the E-Series.

Communication

  • Modbus communication available on F1-Series
  • HART communication is available with the F018 & E018Flow rate Monitor / Totalizers.



Downloads

Datasheet: Fluidwell D013 DIN Panel Mount Flow rate Monitor
