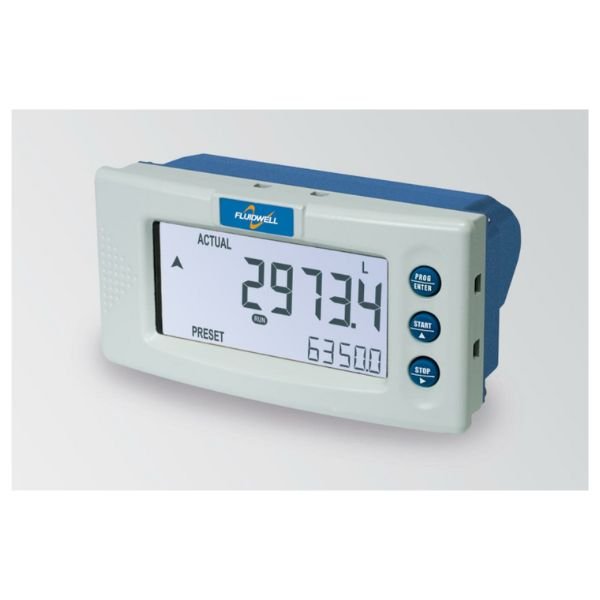

Fluidwell D030 DIN Panel Mount Batch Controller

Fluidwell D030 DIN Panel Mount Batch Controller Watertight DIN panel mount indicators are the better alternative for your existing, not waterproof panel meters.

The D030 is a straightforward but basic, panel mount batch controller. The operator can enter a batch quantity easily or execute repeating batches. During the batch, the preset value is displayed as well as the batched (or remaining) quantity and the units of measurement. The automatic self-learning overrun correction will ensure an accurate result for each batch again.

Advantages

Unique, robust IP66, IP67 (NEMA Type4X) panel mount front enclosure made of die-cast aluminum, allowing even big jets of water and total immersion.
Familiar with easy operation with the Fluidwell “Know one, know them all” configuration structure, saving time, cost and aggravation.

Features

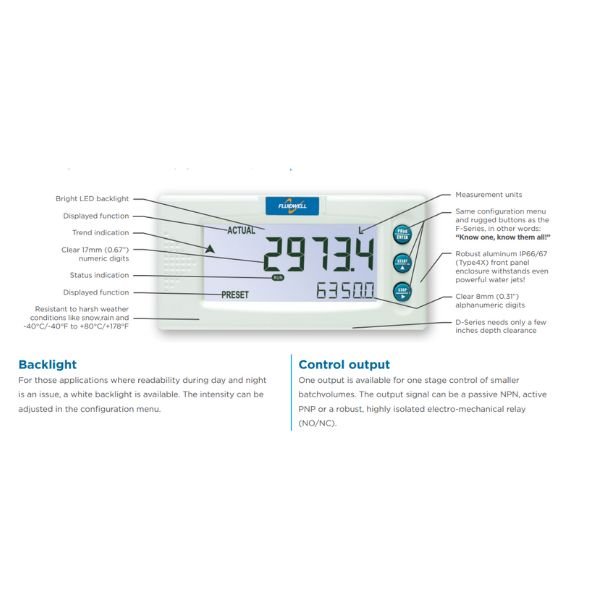

Large display shows preset value and running batch value simultaneously.
Self-learning overrun correction.
Easy operation to enter a batch value and to control the process.
Count-up and count-down function available.
Selectable on-screen engineering units; volumetric or mass.
Ability to process all types of flowmeter signals.
Ambient temperature: -40°C to +80°C (-40°F to 176°F).
LED backlight option.
Easy configuration with clear alphanumerical display.
Aluminum DIN front panel of 144 x 72mm (5.67” x 2.83”) according DIN 43700 / IEC 61554.
Various accessories are available for this product.

Applications

The D030 fits in batching applications of small up to very large quantities with single or repeating batches.
The D-Series is a DIN-sized display and the better alternative for your existing, not waterproof, front panel mount indicators in extreme weather outdoor applications or e.g. in food industries where working environments are often cleaned with powerful water jets.

Specifications

Signal Inputs

Flowmeter Inputs

Pulse type inputs:
Reed-switch, NAMUR, NPN/PNP pulse, Sine wave (coil), active pulse signal.
(0)4 – 20mA.
0 – 10V DC.

Signal Outputs

Alarm outputs

None

Analog outputs

None

Control outputs

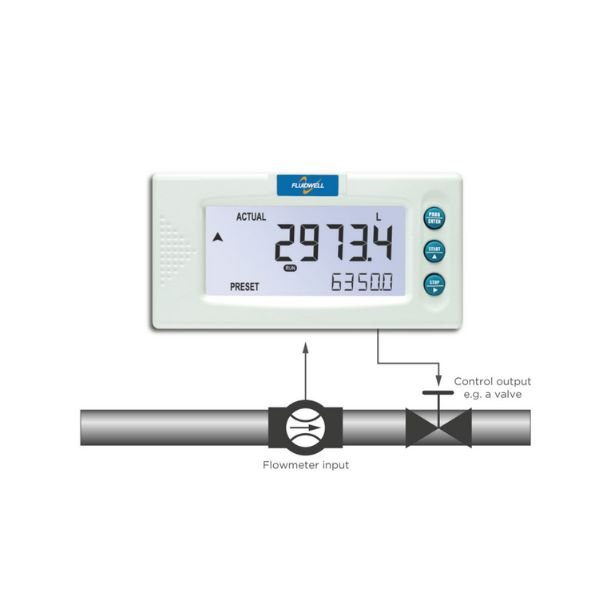

Function:Control output for one-stage batching with active overrun correction.
Type:One passive signal output, an active signal output or a robust, highly isolated (NO/NC) relay.

Supply

Power Supply

Basic: 8 – 30V DC (no real sensor supply).
Long life Lithium battery.
4 – 20mA input Loop-powered.
24V AC/DC + sensor supply.
115 – 230V AC + sensor supply.

Sensor Supply

2 / 3V DC.
2, 12 & 24V DC.

Hazardous Area

Intrinsically Safe

For Intrinsically Safe applications we recommend the F-Series.

Communication

Modbus communication available on F1-Series
HART communication is available with the F018 & E018Flow rate Monitor / Totalizers.

Downloads

Datasheet: Fluidwell D030 DIN Panel Mount Batch Controller
