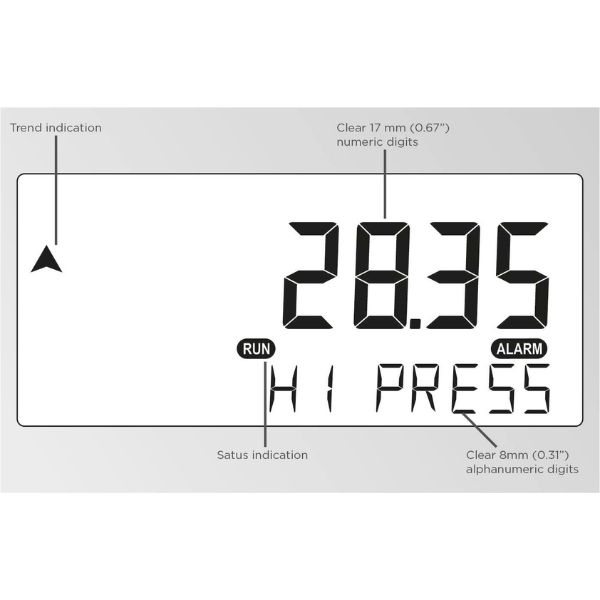

Fluidwell D053 DIN Panel Mount Pressure Monitor is the better alternative for your existing, not waterproof panel meters. The D053 is a versatile, panel mount pressure indicator with a continuous pressure monitoring feature. It offers the facility to set one low-pressure and one high-pressure alarm value. If desired, an ignore function can be set up to allow for incorrect pressure for a certain period of time. The display has large 17mm (0.67”) and 8mm (0.31”) digits which display the pressure, measuring unit, and alarm values.

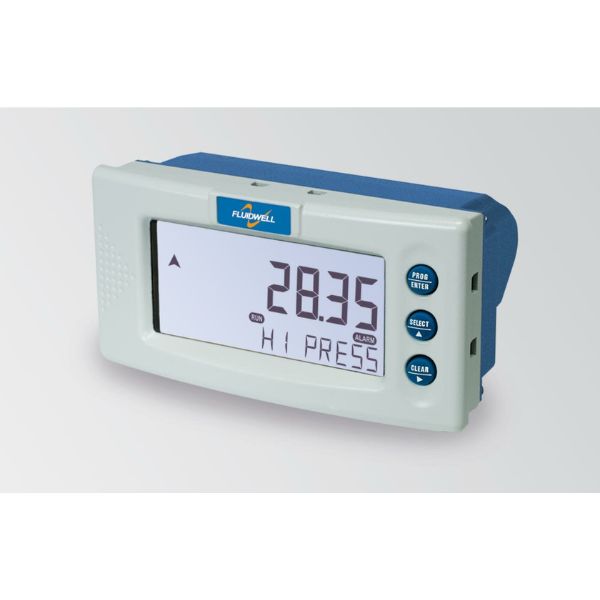

Fluidwell D053 DIN Panel Mount Pressure Monitor

Advantages

Unique, robust IP66, IP67 (NEMA Type4X) panel mount front enclosure made of die-cast aluminum, allowing even big jets of water and total immersion.
Familiar with easy operation with the Fluidwell “Know one, know them all” configuration structure, saving time, cost and aggravation.

Features

Displays actual pressure and alarm values.
Two alarm values can be entered: low and high pressure alarm.
Pressure: six large 17mm (0.67) digits.
Selectable on-screen engineering units: mBar – Bar – PSI.
Ambient temperature: -40°C to +80°C (-40°F to 176°F).
Red flashing LED backlight in case of a pressure alarm.
Easy configuration with clear alphanumerical display.
Aluminum DIN front panel of 144 x 72mm (5.67” x 2.83”) according DIN 43700 / IEC 61554.
Various accessories are available for this product.

Applications

The D053 fits in applications where continous pressure measurement and monitoring is important.
The D-Series is a DIN-sized display and the better alternative for your existing, not waterproof, front panel mount indicators in extreme weather outdoor applications or e.g. in food industries where working environments are often cleaned with powerful water jets.

Specifications

Signal Inputs

Pressure Inputs

(0)4 – 20mA.
0 – 10V DC.

Signal Outputs

Alarm outputs

Function:Configurable alarm output for high, low or both combined pressure alarms.
Type:One passive signal output, an active signal output or a robust, highly isolated (NO/NC) relay.

Analog outputs

None

Supply

Power Supply

Basic: 8 – 30V DC (no real sensor supply).
Long life Lithium battery.
4 – 20mA input Loop-powered.
24V AC/DC + sensor supply.
115 – 230V AC + sensor supply.

Sensor Supply

2, 12 & 24V DC.

Hazardous Area

Intrinsically Safe

For Intrinsically Safe applications we recommend the F-Series.

Communication

Modbus communication available on F1-Series
HART communication is available with the F018 & E018Flow rate Monitor / Totalizers.

Downloads

Datasheet: Fluidwell D053 DIN Panel Mount Pressure Monitor
