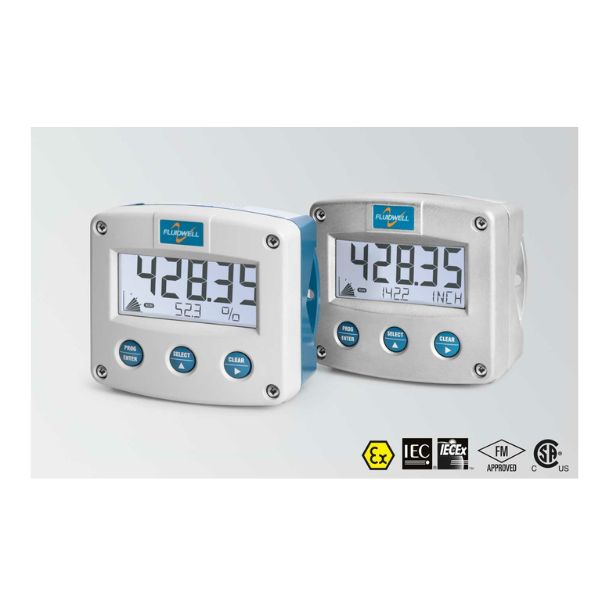

Description of Fluidwell F070 Safe area Level Indicator

is a straightforward level indicator with large 26mm (1″) high digits. It can be set to display the level as a quantity, height, or percentage. The measuring unit to be displayed is simply selected through an alphanumeric configuration menu. The configuration of the Span, offset and a number of decimals are done through software functions, without any sensitive DIP switches or trimmers.

Fluidwell F070 Safe area Level Indicator Advantages

Robust aluminum or stainless steel 316L field enclosure (IP66, IP67 / NEMA Type4X).
It is so rugged, a truck can even stand on it!
Intrinsically Safe available – ATEX, IECEx, FM, and CSA approval for gas and dust applications.
Familiar with easy operation with the Fluidwell “Know one, know them all” configuration structure, saving time, cost and aggravation.
Very diverse mounting possibilities: walls, pipes, panels, or directly onto outdoor sensors.

Features

Displays level and height or percentage filled.

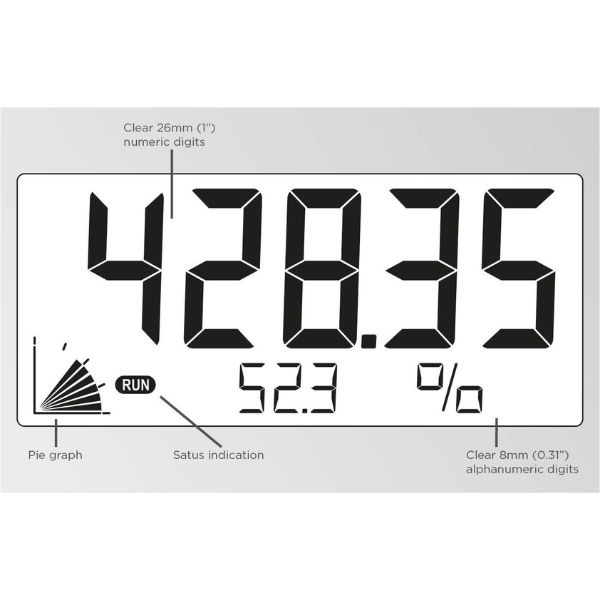

Very large 26mm (1″) high digits for level.
Selectable on-screen engineering units for level: ml, L, m³, GAL, USGAL, kg, lb, bbl or no unit.
Selectable on-screen engineering units for height: mm, cm, m, mtr, inch, ft, mmwk, mmwc, cmwk, cmwc, mwk, mwc, inwc, ftwc, mBar, Bar, PSI or no unit.
Number of digits for level: 5½.
Piegraph indication: ten segments.
LED backlight with adjustable intensity.
Intrinsically safe according ATEX, IECEx, FM and CSA C-US.
GRP, Aluminum or high grade stainless steel enclosure.
Auto backup of settings in EEPROM memory.
Easy configuration with clear alphanumerical display.
Ambient temperature: -40°C to +80°C (-40°F to 176°F).
Various accessories are available for this product.

Applications

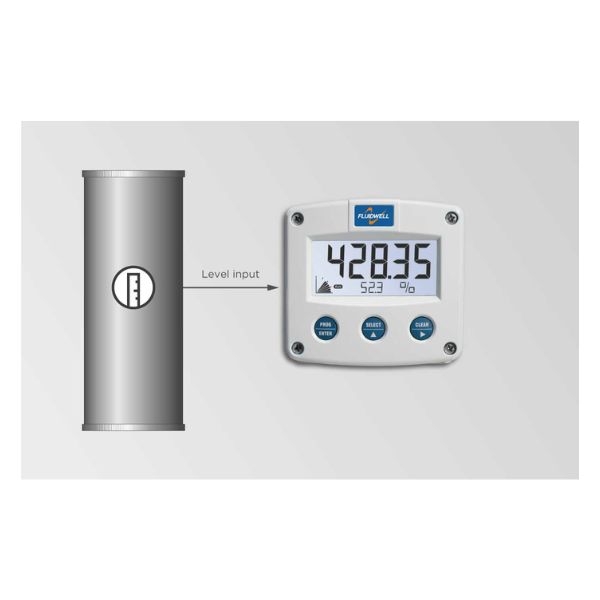

Applications where a basic level measurement display is required without level monitoring, linearization or signal re-transmission.
The F-Series is your first and best choice for field mount indicators in safe and hazardous area applications. Especially in harsh weather conditions like rain, snow, sandy deserts, salty atmospheres and temperatures between -40°C up to +80°C (-40°F up to 176°F).

Specifications

Signal Inputs

Level Inputs

- - (0)4 – 20mA.
  - 0 – 10V DC.

Signal Outputs

Alarm outputs

- - None.

Analog outputs

- - None.

Supply

Power Supply

- - Long life Lithium battery.
  - 4 – 20mA, input Loop-powered.
  - 8 – 24V AC/DC.
  - 115 – 230V AC.
  - Basic: 8 – 30V DC.

Sensor Supply

- - 8.2, 12, 24V DC.

Hazardous Area

Intrinsically Safe

- - ATEX:
    Gas: II 1 G Ex ia IIC T4 Ga
    Dust: II 1 D Ex ia IIIC T100°C Da
  - IECEx:
    Gas: Ex ia IIC T4 Ga
    Dust: Ex ia IIIC T100°C Da
  - CSA:
    I.S. Class I/II/III, Div 1, Grp A…G, T4
    Class I, Zone 0, AEx ia IIC T4
  - FM:
    I.S. Class I/II/III, Div 1, Grp A…G, T4
    Class I, Zone 0, AEx ia IIC T4

Explosion Proof

- - ATEX:
    Gas: II 2 G / Ex d IIB T5 Gb
    Dust: II 2 D / Ex t IIIB T100°C Db

Communication

- - Modbus communication available on F1-Series products.
  - HART communication is available with the F018 & E018 Flow rate Monitor / Totalizers.
