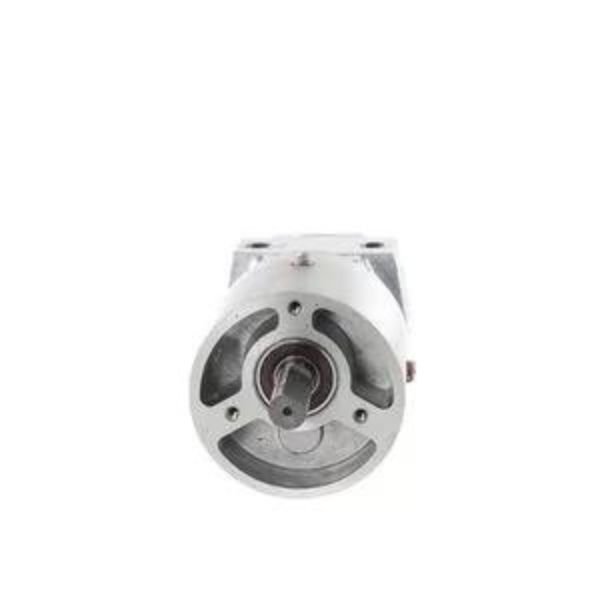

Gast 1UP-NRV-4-GR11 Gear Motor

Gast 1UP-NRV-4-GR11 Gear Motor the compact 1UP-NRV (GM) series offers variable operating speeds and power output that can be adjusted to meet the precise needs of your application. Their 15:1 gear reducer is not only ideal for lower speed and higher torque applications, but they also can be stalled or overloaded for long periods without damaging the motor. In addition to being a non-electrical device and cool running, Gast air motors are ideal for use in hazardous and extreme ambient temperature locations.

Why use a Gast Gear Motor?

Variable Speed
You can vary gear motor speed between 300 and 10,000 rpm (depending on model selection) with a simple valve put in between the air source and air motor.
Non-electrical Sparking
As a non-electrical device, the possibility of explosion from igniting flammable gases is greatly reduced.
Instantly Reversible
A four-way valve in the air line enables a Gast Air Motor to be instantly reversed. A turn of the valve causes a complete reversal of rotation, even when the motor is running at full speed.

Features

4 Vanes, Reversible
15:1 gear reducer
Face mounting
Horizontal or shaft down operation
Muffler AF350 (shown in photo)
II 2 GD c T4

Applications

RECOMMENDED

Filter AH100F
Regulator AH101R
Gauge AA806
Lubricator AH102L
Oil AD220 – 1 quart (.94 litres)
Repair kit K298 (Air motor only, 8 Vane)
Repair kit K286 (Air motor only, 4 Vane)

Specifications

Max Air Consumption: 21 cfm ( 35.68 m3h )
Max Power: 0.31 hp ( 0.23 kW )
Max Pressure: 5.6 bar ( 81.22 psi )
Max Sound Level: 78 dB(A)
Max Speed: 400 rpm
Max Torque: 95 in-lb ( 10.74 N m )
Mount: FACE
Output Shaft Type: Flat
Port Size and Type: 1/8″ NPT
Regulatory Approval: CE, ATEX
Rotation: Reversible
Shaft Size: 0.5 in ( 12.7 mm )
Stainless Steel: NO
Starting Torque @ 80psi: 75 in-lb ( 8.48 N m )
Torque Max Speed: 49 in-lb ( 5.54 N m )
Vanes: 4
Weight: 3.1 lbs ( 1.41 kg )

Downloads

Datasheet : Gast 1UP-NRV-4-GR11 Gear Motor
