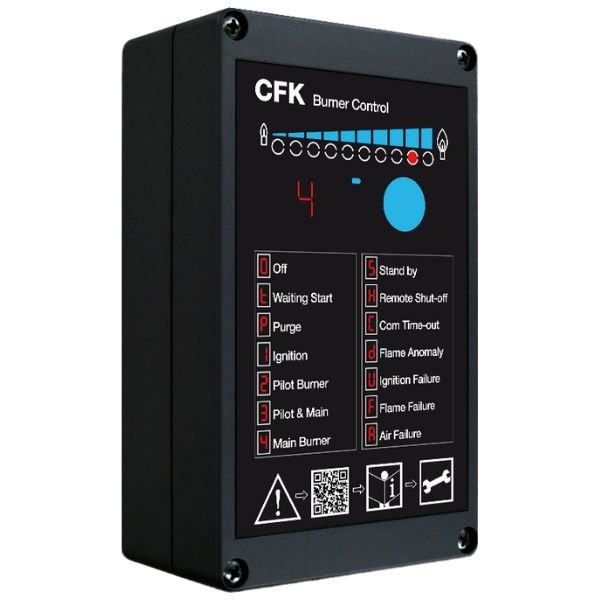

Delta-Elektrogas CFK Burner Control System

Delta-Elektrogas CFK Burner Control System is designed to control gas burners in accordance with norm EN 746-2, for intermittent or continuous operation. Different versions are available and many parameters are configurable to have the best solution for every plant.

Delta-Elektrogas CFK Burner Control System is designed to control gas burners in accordance with norm EN 746-2, for intermittent or continuous operation. Different versions are available and many parameters are configurable to have the best solution for every plant.

CFK burner control system is a device that ignites and monitors the flame in the industrial gas burners with continuous service, with a self-test function of the detection circuit.CFK is available with single control or double control for valves. Flame detection can be done via a single rod, two rods, or a UV cell. CFK burner control is suitable to work with field-bus communication.

Elettromeccanica DELTA, with its brands Elektrogas and Deltapumps, is a proud manufacturer of safety and control products for gas firing systems and fuel oil appliances, successfully installed in more than 60 countries in the world.

Features

  • Available in BASIC or FULL version.
  • Flame detection via either UV cell or ionization rod, even shared with ignition.
  • Possibility to use either electronic or winding transformers.
  • Burner status is visualized via a 7-segment display and led-bar.
  • Parameter setting via PC and USB device.
    Provided with advanced self-diagnostic to assure a safe operation.
  • Voltage supplied to loads equal to voltage supplied to the device.
  • Housing available in polymeric material or die-casted aluminum.
  • Supervision of the burner can be implemented by traditional electrical wiring, or through built-in
    communication line.
  • Designed and manufactured according to EN 298.

Applications

  • CFK is available with single control or double control for valves.
  • Flame detection can be done via a single rod, two rods or UV cell.
  • CFK burner control is suitable to work with field-bus communication

Specifications

  • Voltage 230 – 115 VAC 50/60 Hz (-15/+10%)
  • Process inputs 230 – 115 – 48 – 24 VAC (max. 3 mA)
  • Power absorption 6 VA
  • Enclosure IP64
  • Fuse (replaceable) 3 A fast 5×20
  • Available load for Output 250 VAC, 2 A cosϕ=0,7
    Minimum ionization current > 1 A (current limitation 1mA)
  • Detector line length 30 m max. (2 m in case of single rod)
  • Detector voltage 250 VAC
  • Detector insulation > 50 M
  • Working temperature -20°C / +60°C
  • Flame detection Ionization rod or UV cell
  • Overall Dimension 200 x 120 x 71 mm
  • Weight 850 gr (plastic case)
  • 1200 gr (aluminum case)
