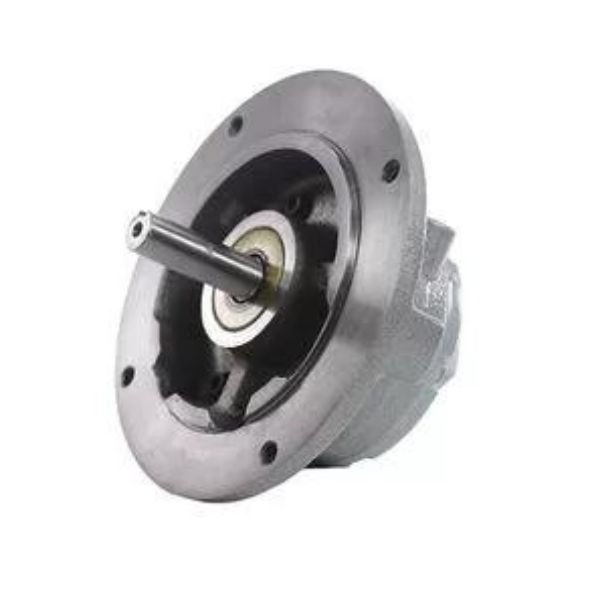

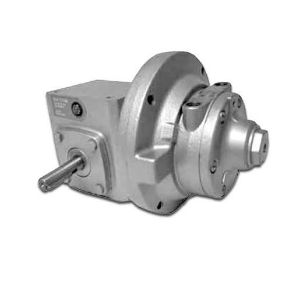

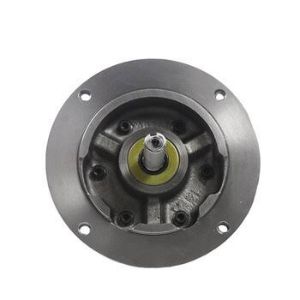

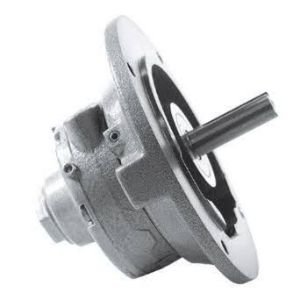

Gast 2AM-ARV-92 Air Motor

Gast 2AM-ARV-92 Air Motor the compact and portable 2AM series offers variable operating speed and power output that can be adjusted to meet the precise needs of your application.

Gast 2AM-ARV-92 Air Motor

Gast 2AM-ARV-92 Air Motor the compact and portable 2AM series offers variable operating speed and power output that can be adjusted to meet the precise needs of your application. Their air throttling and pressure control is not only cost effective over electric motor controls, but they also can be stalled or overloaded for long periods without damaging the motor. In addition to being a non-electrical device and cool running, Gast air motors are ideal for use in hazardous and extreme ambient temperature locations.

Why use a Gast Air Motor?

Variable Speed
You can vary air motor speed between 300 and 10,000 rpm (depending on model selection) with a simple valve put in between the air source and air motor.
Non-electrical Sparking
As a non-electrical device, the possibility of explosion from igniting flammable gases is greatly reduced.
Instantly Reversible
A four-way valve in the air line enables a Gast Air Motor to be instantly reversed. A turn of the valve causes a complete reversal of rotation, even when the motor is running at full speed.

Features

  • 4 Vanes, Reversible
  • Flange Mount
  • IEC #72 mounting frame size:
    D71 (2AM-ACC-88, 2AM-ARV-92)
    D71C (2AM-ACC-91, 2AM-ARV-93)
  • Any plane operation
  • Metal muffler AC980 adds 2″ height when installed II 2 GD c T4

Applications

RECOMMENDED

  • Repair kit K203A (Single Rotation)
  • Repair kit K510 (Reversible)

Specifications

  • Key Type: KEY,SQ (METRIC)
  • Max Air Consumption: 30 cfm ( 50.97 m3h )
  • Max Power: 0.95 hp ( 0.71 kW )
  • Max Pressure: 7 bar ( 101.53 psi )
  • Max Sound Level: 76 dB(A)
  • Max Speed: 3000 rpm
  • Max Torque: 28 in-lb ( 3.16 N m )
  • Mount: Flange (IEC)
  • Output Shaft Type: Keyed
  • Port Size and Type: 1/4″ BSP
  • Regulatory Approval: CE, ATEX
  • Rotation: Reversible
  • Shaft Size: 0.55 in ( 13.97 mm )
  • Stainless Steel: NO
  • Starting Torque @ 80psi: 17 in-lb ( 1.92 N m )
  • Torque Max Speed: 19.5 in-lb ( 2.2 N m )
  • Vanes: 4
  • Weight: 7.5 lbs ( 3.4 kg )

Downloads

Datasheet : Gast 2AM-ARV-92 Air Motor
