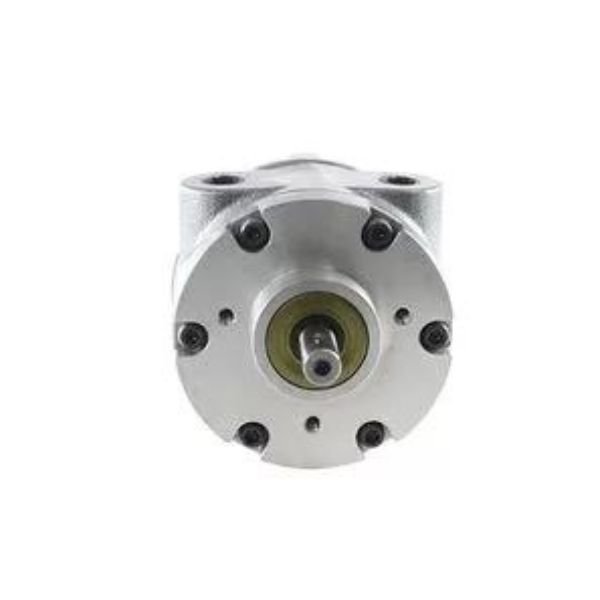

Gast 4AM-NRV-54A Air Motor

The compact and portable 4AM series offers air motor operating speed and power output that can be adjusted to meet the precise needs of your application. Their air throttling and pressure control is not only cost effective over electric motor controls, but they also can be stalled or overloaded for long periods without damaging the motor. In addition, these Gast air motors are cool running and have no electrical spark, which makes them ideal for use in hazardous locations.

Features

  • 8 Vanes, Reversible
  • Face mounting
  • Any plane operation
  • Metal muffler AC980 adds 2″ height when installed
  • II 2 GD c T4

Applications

RECOMMENDED

  • Filter AH103F
  • Regulator AH104R
  • Gauge AA806
  • Lubricator AH105L
  • Oil AD220 – 1 quart (.94 litres)
  • Repair kit K205 (4 Vane, Reversible)
  • Repair kit K279 (8 Vane, Reversible)

Specifications

  • Key Type: #3 Woodruff
  • Max Air Consumption: 78 cfm ( 132.52 m3h )
  • Max Power: 1.7 hp ( 1.27 kW )
  • Max Pressure: 7 bar ( 101.53 psi )
  • Max Sound Level: 87 dB(A)
  • Max Speed: 3000 rpm
  • Max Torque: 56 in-lb ( 6.33 N m )
  • Mount: FACE
  • Output Shaft Type: Keyed
  • Port Size and Type: 1/4″ NPT
  • Regulatory Approval: CE, ATEX
  • Rotation: Reversible
  • Shaft Size: 0.5 in ( 12.7 mm )
  • Stainless Steel: NO
  • Starting Torque @ 80psi: 28 in-lb ( 3.16 N m )
  • Torque Max Speed: 36 in-lb ( 4.07 N m )
  • Vanes: 8
  • Weight: 7 lbs ( 3.18 kg )

Downloads

Datasheet : Gast 4AM-NRV-54A Air Motor
