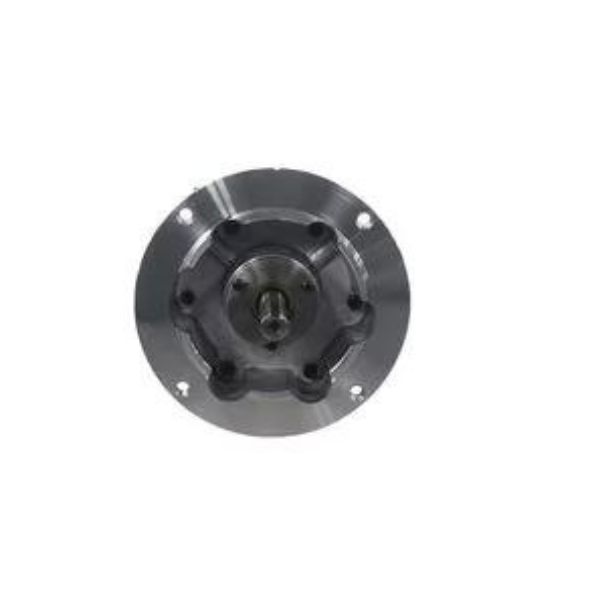

Gast 6AM-ARV-54 Air Motor

The compact and portable 6AM series offers air motor operating speed and power output that can be adjusted to meet the precise needs of your application. Their air throttling and pressure control is not only cost effective over electric motor controls, but they also can be stalled or overloaded for long periods without damaging the motor. In addition, these Gast air motors are cool running and have no electrical spark, which makes them ideal for use in hazardous locations.

Features

  • 4 Vanes, Reversible
  • IEC #72 mounting frame size D80
  • Any plane operation
  • Metal muffler AC990 adds 2″ height when installed
  • II 2 GD c T4

Applications

RECOMMENDED

  • Repair kit K281A

Specifications

  • Key Type: 6mm Square
  • Max Air Consumption: 128 cfm ( 217.47 m3h )
  • Max Power: 4 hp ( 2.98 kW )
  • Max Pressure: 7 bar ( 101.53 psi )
  • Max Sound Level: 90 dB(A)
  • Max Speed: 3000 rpm
  • Max Torque: 115 in-lb ( 13 N m )
  • Mount: Flange (IEC)
  • Output Shaft Type: Keyed
  • Port Size and Type: 1/2″ BSPP
  • Regulatory Approval: CE, ATEX
  • Rotation: Reversible
  • Shaft Size: 0.75 in ( 19.05 mm )
  • Stainless Steel: NO
  • Starting Torque @ 80psi: 61 in-lb ( 6.89 N m )
  • Torque Max Speed: 84 in-lb ( 9.49 N m )
  • Vanes: 4
  • Weight: 21 lbs ( 9.53 kg )

Downloads

Datasheet : Gast 6AM-ARV-54 Air Motor
