Description

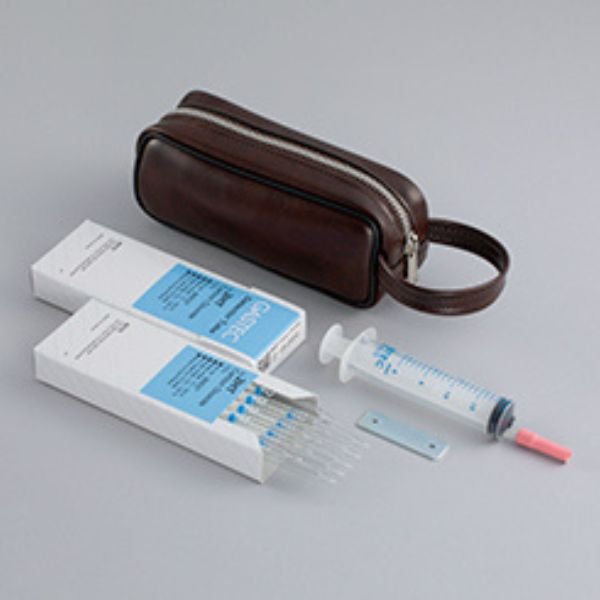

Gastec 610 Injection Type Gas Measurement System Carbon Dioxide

Gastec 610 Injection Type Gas Measurement System Carbon DioxideIn No.610 System, samples are injected into detector tubes by using a syringe in order to measure gases in very high concentrations or slow in chemical reactions. samples are injected into detector tubes by using a syringe in order to measure gases in very high concentrations or slow in chemical reactions.

Provides Stable and Precise Measurements for Long-Term Atmospheric Monitoring Measurements. High-precision, high-stability, low drift measurements for a variety of applications. ISO certified. Expert training. Unparalleled support. Customized quotes.

Core Operating Principle

Syringe Sample Collection: A precise $20\text{ mL}$ air/gas sample is drawn into the sampling syringe from the target environment or process tap.
Controlled Manual Injection: The syringe nozzle is coupled directly to the inlet of an opened Gastec Carbon Dioxide injection detector tube.
Chemical Reagent Color Reaction: The sample is steadily pushed through the tube bed over a controlled duration (typically $1\text{ to }2\text{ minutes}$

Specifications

Substance to be measured	Tube no. & name		Measuring range (ppm)	Scale range (ppm)	No. of tests per box	Detector tube type	Notes
Carbon dioxide	2HT	Carbon dioxide	10-100%	(10)-100%	10	Injection type	No.610 (Carbon dioxide)

Features

Compact, lightweight, and versatile(can be used anywhere)
Easy direct measuring and reading
No sampling pump necessary

Applications

1. Break off both ends of a detector tube (No.100B for No.601 syringe or No.2HT for No.611 syringe) by using the tube tip cutter.
2. Attach the syringe inlet to the syringe (No.601 or No.611) and collect 20ml of sample into the syringe by pulling its piston.
3. Insert the tube securely into the syringe inlet with the arrow pointing away from the syringe. Inject the sample collected in the syringe into the detector tube in 2 minutes (for No.100B) or 20 seconds (for No.2HT), and read the indication.
4. Please see the product manual for details.

Gastec 610 Injection Type Gas Measurement System Carbon Dioxide

Core Operating Principle

Syringe Sample Collection: A precise $20\text{ mL}$ air/gas sample is drawn into the sampling syringe from the target environment or process tap.

Controlled Manual Injection: The syringe nozzle is coupled directly to the inlet of an opened Gastec Carbon Dioxide injection detector tube.

Chemical Reagent Color Reaction: The sample is steadily pushed through the tube bed over a controlled duration (typically $1\text{ to }2\text{ minutes}$

Substance to be measured

Tube no. & name

Measuring range
(ppm)

Scale range
(ppm)

No. of
tests
per box

Detector tube type

Notes

Carbon dioxide

2HT

Carbon dioxide

10-100%

(10)-100%

Injection type

No.610 (Carbon dioxide)

Applications

Best Gastec 610 Injection Type Gas Measurement System Carbon Dioxide
