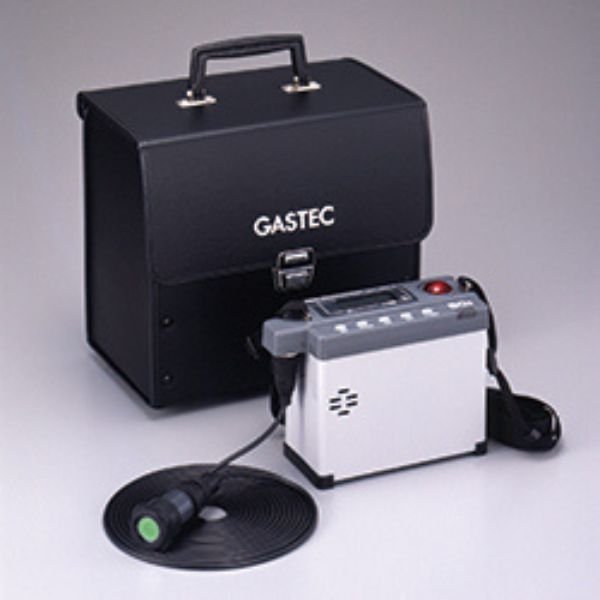

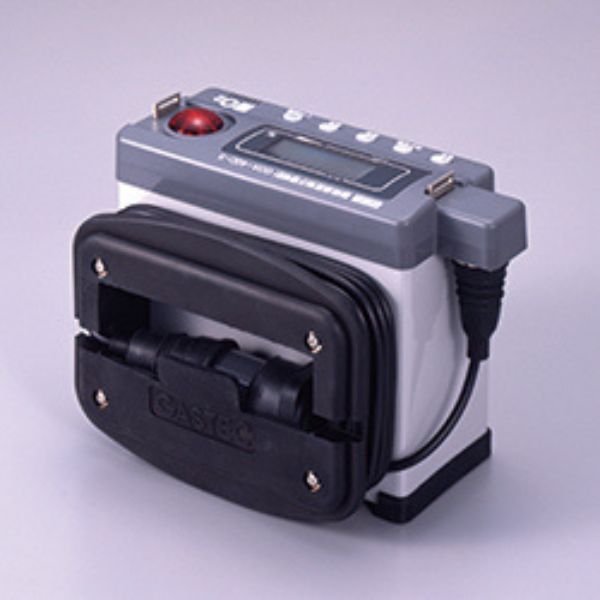

Gastec GOA-40D-5 Hand-held oxygen detector

Gastec GOA-40D-5 Hand-held oxygen detector can quickly and accurately measure oxygen concentrations at a variety of different work sites subject to host of complicated and varying factors.

Gastec GOA-40D-5 Hand-held oxygen detector

Gastec GOA-40D-5 Hand-held oxygen detector can quickly and accurately measure oxygen concentrations at a variety of different work sites subject to host of complicated and varying factors.
All come with a high performance galvanic cel sensor.

Fresh air contains 21% oxygen. Lower concentrations can cause unconsciousness and may even become life threatening. Since oxygen is colourless and odorless, human senses cannot detect changes in concentration levels.

At GASTEC, we endeavour to achieve highest quality detector tubes for analysing airborne gases/vapours, as well as pollutants in soil and water through our advanced state-of-the-art research and development. Through our efforts we have acquired a solid reputation among our customers in virtually all sectors of industry, commerce and society. Tubes are now available for more than 500 different applications.

Features

  • Calibrates to oxygen level of 21% with one-touch
  • Large easy-to-read display
  • Low power consumption
  • Sensor cable holder

*The products may not be sold depending on countries and regions.

Applications

  • measure oxygen concentrations

Specifications

Measurement range 0.0 – 25.0% (also measures 25.1 – 42.0% for extra range)
Measurement principle Galvanic cell
Sampling method Diffusion
Display Digital LCD (backlit)
Indicating accuracy +/- 0.5 %O2 ( 0.0 – 25.0 %O2) +/- 3.0 %O2 ( 25.0 – 42.0 %O2)
Alarm threshold <18%
Alarm signal intermittent sound and blinking light
Explosion proof Certified by Japan Ministry of Health, Labour and Welfare (Class ia2G3 Certification No.T65119)
Operating Temperature / Humidity range Temperature : -10 – 40 ℃

Relative humidity : 30 – 95 %RH

Power source Four size C manganese batteries provide about 4000 hours of operation (without alarm signal being emitted/25ºC
Dimensions 153(W) x 71(D) x 133(H) mm
Weight 1.4kg

Downloads

Datasheet : Gastec GOA-40D-5 Hand-held oxygen detector
