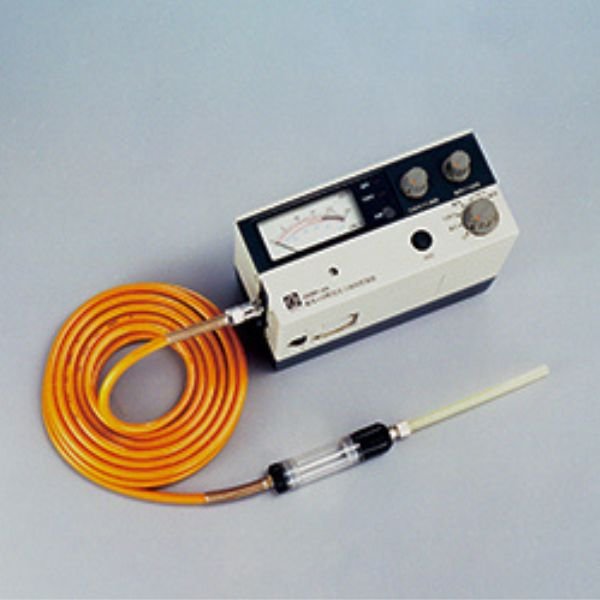

Gastec GOM-3AL Multi Gas Detector

Gastec GOM-3AL Multi Gas Detector one unit performs two roles, realizing highly efficient and safe control at the same time. Can simultaneously measure oxygen and a flammable gas.

GASTEC Detector indicate concentrations directly by way of a calibrated scale printed on the tubes. At GASTEC, we endeavour to achieve highest quality detector tubes for analysing airborne gases/vapours, as well as pollutants in soil and water through our advanced state-of-the-art research and development. Through our efforts we have acquired a solid reputation among our customers in virtually all sectors of industry, commerce and society. Tubes are now available for more than 500 different applications.

Features

Small / compact and lightweight
Low power consumption design
A flick of a switch provides three different measurement modes
With Light & flow rate check function
GOM-3AL providesppm readings for flammable gases

Applications

oxygen and a flammable gas.

Specifications

Target gas	Oxygen	Combustible gas	Combustible gas
GOM-3A			–
GOM-3AL		–
Measurement range	0 – 25 %	0 – 100 %LEL	0 – 1000 ppm
Measurement principle	Galvanic cell method	Catalytic combustible combustion-type method
Sampling method	Diaphragm pump
Display	Analog metre (backlit)
Indicating Accuracy	+/- 0.5%	5% of full scale
Alarm threshold	<18%	>20%LEL	>200 ppm
Alarm signal	Short, intermittent sound and blinking alarm light	Long intermittent sound and blinking alarm light
Operating Temperaturel	-10 – 40℃
Power source	Three size C manganese dry cell batteries for 4 hours of operation (without alarm signal being emitted) Three size C alkaline dry cell batteries for 8 hours of operation (without alarm signal being emitted)
Dimensions	150(W) x 70(D) x 110(H) mm
Weight	1.2kg
Explosion proof	Certified by Japan Ministry of Health, Labour and Welfare (Class id3aG3 Certification No.T62340)
