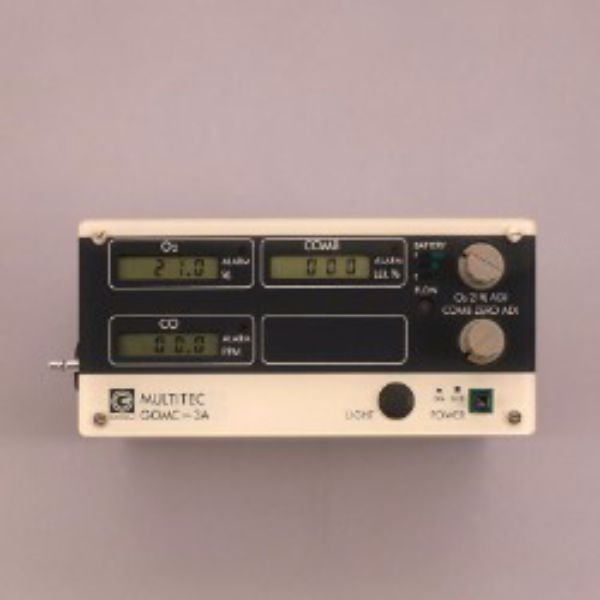

Gastec GOMC-3A Multiple gas detector

Gastec GOMC-3A Multiple gas detector one unit performs three roles, realizing highly efficient and safe control at the same time. Can simultaneously measure three gases: oxygen, a flammable gas, and carbon monoxide.

GASTEC Detector indicate concentrations directly by way of a calibrated scale printed on the tubes. At GASTEC, we endeavour to achieve highest quality detector tubes for analysing airborne gases/vapours, as well as pollutants in soil and water through our advanced state-of-the-art research and development. Through our efforts we have acquired a solid reputation among our customers in virtually all sectors of industry, commerce and society.

Function

Triple-Gas Simultaneous Protection: Tracks ambient concentrations of oxygen ( $\%\text{ }\text{O}_2$ ), flammable hydrocarbons ( $\%\text{ LEL}$ ), and toxic carbon monoxide ( $\text{ppm CO}$ ) on a single screen.
Pre-Entry & Breathing Zone Monitoring: Combines galvanic cell, catalytic combustion, and electrochemical sensors for hazardous zone screening via diffusion or remote sampling accessories.

Specifications

Parameter	Specification
Manufacturer	Gastec Corporation
Model Designation	GOMC-3A
Target Gases	Oxygen ( $text{O}_2$ ), Combustible Gases ( $text{LEL}$ ), Carbon Monoxide ( $text{CO}$ )
Measuring Ranges	$text{O}_2$ : $0.0%text{ to }25.0%text{ }text{O}_2$ volume $text{LEL}$ : $0text{ to }100%text{ LEL}$ $text{CO}$ : $0text{ to }500text{ ppm}$
Alarm Preset Levels	$text{O}_2$ : Low $le 19.5%$ High $ge 23.5%$ $text{LEL}$ : $10%text{ LEL}$ $text{CO}$ : $25text{ ppm}$ or $50text{ ppm}$
Response Time ( $T_{90}$ )	$text{O}_2 < 20text{s}$ $text{LEL} < 30text{s}$ $text{CO} < 30text{s}$
Power Source	Replaceable dry cell batteries (AA / AAA)
Operating Conditions	-10°C to +40°C (14°F to 104°F); 10–90% RH non-condensing

Features

Multi-Stage Hazard Alarms: Sounds high-decibel audible buzzers and flashes bright LED indicator arrays when gas limits breach OSHA/NIOSH threshold values.
Flexible Sampling Modes: Functions as a wearable personal diffusion monitor or pairs with an external motorized pump and extension line for pre-entry testing.

Applications

Triple-Hazard Confined Space Pre-Entry: Testing utility vaults, storage tanks, and sewers for simultaneous oxygen displacement, explosive vapors, and carbon monoxide accumulation.
Industrial Maintenance & Turnarounds: Personal breathing-zone protection during boiler inspections, furnace servicing, and chemical process piping work.
Emergency Response & Plant Safety Audits: Rapid site screening following gas leaks or suspected combustion hazards.
