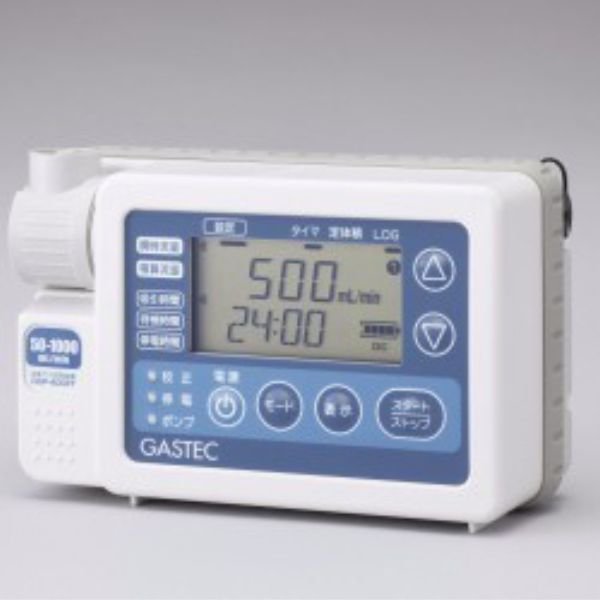

Gastec GSP-400FT Automatic Air Sampling Pump

Gastec GSP-400FT Automatic Air Sampling Pump Gastec GSP-400FT Automatic Air Sampling Pump Flow volume of 50-1000mL/min can be set.

GASTEC Detector Tubes indicate concentrations directly by way of a calibrated scale printed on the tubes. At GASTEC, we endeavour to achieve highest quality detector tubes for analysing airborne gases/vapours, as well as pollutants in soil and water through our advanced state-of-the-art research and development. Through our efforts we have acquired a solid reputation among our customers in virtually all sectors of industry, commerce and society. Tubes are now available for more than 500 different applications.

Function

Mass Flow Controlled Sample Collection: Draws atmospheric samples at precise, constant mass flow rates ( $50\text{ to }1,000\text{ mL/min}$ through detector or sorbent tubes.
Volume-Based Automated Shutoff: Utilizes real-time mass flow feedback and digital timers to automatically stop sampling when target collection volumes or time durations are reached.

Specifications

Integrated flow rate	50 – 1000mL/min
Real-time flow rate Parametres	50mL/min : 0.0 – 37.0 kPa , 100mL/min : 0.0 – 36.0 kPa 300mL/min : 0.0 – 33.0 kPa , 500mL/min : 0.0 – 29.0 kPa 700mL/min : 0.0 – 24.0 kPa , 1000mL/min : 0.0 – 16.0 kPa
Operating Temperature / Humidity range	Temperature : 0 – 40 ºC(32- 104 ºF) Relative humidity : 10 – 90 %RH(no condensation)
Dimensions	150(W) x 75(D) x 100(H) mm
Weight	500g (including batteries)

Features

Rotatable Tube Mount Assembly: Features a rotating inlet fitting that allows the pump housing to be mounted or rested at any angle without kinking the sampling tube.
Weather-Resistant Enclosure: Built with an IP54-equivalent dust-proof and drip-proof housing for outdoor atmospheric sampling and industrial field audits.

Applications

Hazardous Air Pollutant (HAP) Sampling: Measuring trace levels of VOCs, acetaldehyde, formaldehydes, or ethylene oxide in workplace environments.
Indoor Air Quality (IAQ) & Residential Audits: Monitoring indoor formaldehyde ( $91text{P/PL}$ series) and organic solvents in homes, schools, and office buildings.
Long-Term Personal & Perimeter Monitoring: Collecting multi-hour TWA chemical samples across plant boundaries or industrial work shifts.

Gastec GSP-400FT Automatic Air Sampling Pump

Gastec GSP-400FT Automatic Air Sampling Pump Gastec GSP-400FT Automatic Air Sampling Pump Flow volume of 50-1000mL/min can be set.

Function

Mass Flow Controlled Sample Collection: Draws atmospheric samples at precise, constant mass flow rates ( $50\text{ to }1,000\text{ mL/min}$ through detector or sorbent tubes.

Volume-Based Automated Shutoff: Utilizes real-time mass flow feedback and digital timers to automatically stop sampling when target collection volumes or time durations are reached.

Specifications

Integrated flow rate

50 – 1000mL/min

Real-time flow rate Parametres

50mL/min : 0.0 – 37.0 kPa , 100mL/min : 0.0 – 36.0 kPa
300mL/min : 0.0 – 33.0 kPa , 500mL/min : 0.0 – 29.0 kPa
700mL/min : 0.0 – 24.0 kPa , 1000mL/min : 0.0 – 16.0 kPa

Operating Temperature / Humidity range

Temperature : 0 – 40 ºC(32- 104 ºF)
Relative humidity : 10 – 90 %RH(no condensation)

Dimensions

150(W) x 75(D) x 100(H) mm

Weight

500g (including batteries)

Features

Rotatable Tube Mount Assembly: Features a rotating inlet fitting that allows the pump housing to be mounted or rested at any angle without kinking the sampling tube.

Weather-Resistant Enclosure: Built with an IP54-equivalent dust-proof and drip-proof housing for outdoor atmospheric sampling and industrial field audits.

Applications

Hazardous Air Pollutant (HAP) Sampling: Measuring trace levels of VOCs, acetaldehyde, formaldehydes, or ethylene oxide in workplace environments.

Indoor Air Quality (IAQ) & Residential Audits: Monitoring indoor formaldehyde ( $91text{P/PL}$ series) and organic solvents in homes, schools, and office buildings.

Long-Term Personal & Perimeter Monitoring: Collecting multi-hour TWA chemical samples across plant boundaries or industrial work shifts.
