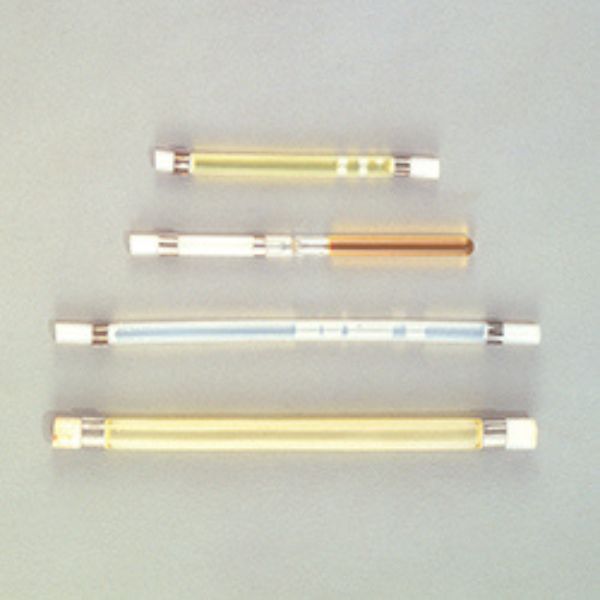

Gastec P-71-5 Permeation Tube Methyl Mercaptan

Gastec P-71-5 Permeation Tube Methyl Mercaptan

Product Note:

No product notes available.

Categories: , Tags: , ,

Description

Gastec P-71-5 Permeation Tube Methyl Mercaptan

Gastec P-71-5 (also cataloged as P715) is a certified Methyl Mercaptan (CH3SH / Methanethiol) permeation tube engineered as a primary trace-gas generation standard for producing known, continuous, low-ppm concentrations of methyl mercaptan vapor.

When housed inside a constant-temperature dynamic gas calibration generator (such as the Gastec PD-1B or single-channel PD-1C permeaters), it releases a certified micro-rate mass flow of pure methyl mercaptan through a fluoropolymer membrane into a controlled dilution air or nitrogen carrier stream.

Specifications

ParameterSpecification
ManufacturerGastec Corporation
Part Number / ModelP-71-5 / P715
Target Chemical VaporMethyl Mercaptan / Methanethiol ($text{CH}_3text{SH}$)
Permeation MembraneFluoropolymer (FEP/Teflon) capillary reservoir
Certified Operating Temp$30.0^circtext{C to }40.0^circtext{C}$ (specified on individual calibration certificate)
Primary Output RangeGenerates low-ppm span gas (dependent on carrier gas flow rate)
Expected Service Life6 to 12 months (determined by operating temperature and initial fill mass)
Compatible EquipmentGastec PD-1B / PD-1C Permeaters, standard dynamic gas diluters

Features

Concentration range 0.007 – 1.52 ppm

Applications

  • Natural Gas & Odorant Monitoring: Calibrating electrochemical sensors, photoionization detectors (PID), and gas chromatographs used to verify odorant injection levels in natural gas pipelines and LPG storage facilities.

  • Paper Pulp & Refinery Safety Audits: Calibrating ambient monitoring equipment and leak alarms in kraft pulp mills, petroleum refineries, and sewage treatment plants where organosulfur compounds are generated.

  • Colorimetric Detector Tube Validation: Laboratory verification and accuracy auditing of Gastec Methyl Mercaptan detector tubes (such as Gastec 70 and 70L series).

Downloads
