Description

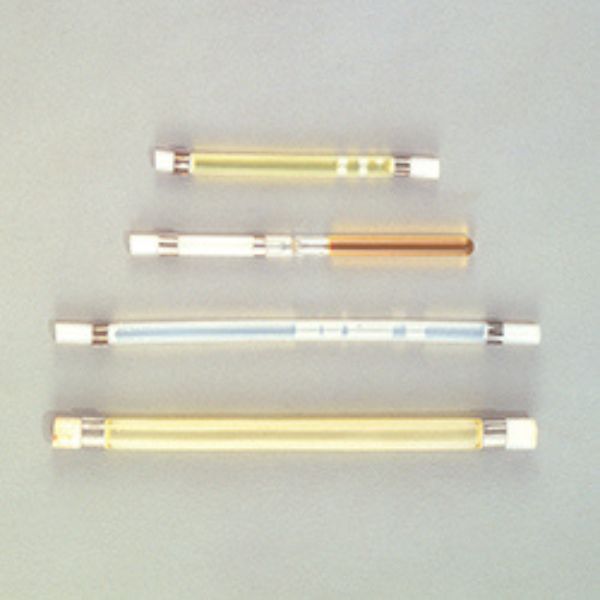

Gastec P-92-1 Permeation Tube Acetaldehyde

Gastec P-92-1 (also cataloged as P921) is a certified, standard-emission Acetaldehyde ( $\text{CH}_3\text{CHO}$ ) permeation tube engineered as a primary trace-gas generation standard. It provides a constant, reliable micro-rate release of pure acetaldehyde vapor for generating known calibration gas mixtures.

When housed inside a constant-temperature dynamic gas calibration generator (such as the Gastec PD-1B or PD-1C permeaters), it releases a factory-certified nanogram-per-minute mass flow of acetaldehyde through a fluoropolymer membrane into a controlled carrier air or nitrogen stream.

Specifications

Parameter	Specification
Manufacturer	Gastec Corporation
Part Number / Model	P-92-1 / P921
Target Chemical Vapor	Acetaldehyde ( $text{CH}_3text{CHO}$ )
Permeation Membrane	Fluoropolymer (FEP/Teflon) capillary reservoir
Certified Operating Temp	$30.0^circtext{C to }40.0^circtext{C}$ (specified on factory calibration certificate)
Primary Output Range	Generates low-to-mid ppm span gas (dependent on carrier gas flow rate)
Expected Service Life	6 to 12 months (determined by operating temperature and initial fill mass)
Compatible Equipment	Gastec PD-1B / PD-1C Permeaters, standard dynamic gas diluters

Features

Concentration range 0.1 – 5.2 ppm

Applications

Indoor Air Quality (IAQ) & Building Emissions: Calibrating photoionization detectors (PID), gas chromatographs, and mass spectrometers used to detect volatile organic compounds (VOCs) and aldehyde off-gassing from building materials and furnishings.
Colorimetric Detector Tube Audits: Laboratory verification and accuracy auditing of Gastec Acetaldehyde detector tubes (such as Gastec 92L and 92M series).
Industrial & Fermentation Monitoring: Calibrating process analyzers in chemical manufacturing, beverage/brewery quality control, and ethanol distillation plants.

Downloads

Gastec P-92-1 Permeation Tube Acetaldehyde

Gastec P-92-1 (also cataloged as P921) is a certified, standard-emission Acetaldehyde (

\text{CH}_3\text{CHO}

) permeation tube engineered as a primary trace-gas generation standard. It provides a constant, reliable micro-rate release of pure acetaldehyde vapor for generating known calibration gas mixtures.

Specifications

Parameter

Specification

Manufacturer

Gastec Corporation

Part Number / Model

P-92-1 / P921

Target Chemical Vapor

Acetaldehyde (

text{CH}_3text{CHO}

)

Permeation Membrane

Fluoropolymer (FEP/Teflon) capillary reservoir

Certified Operating Temp

30.0^circtext{C to }40.0^circtext{C}

(specified on factory calibration certificate)

Primary Output Range

Generates low-to-mid ppm span gas (dependent on carrier gas flow rate)

Expected Service Life

6 to 12 months (determined by operating temperature and initial fill mass)

Compatible Equipment

Gastec PD-1B / PD-1C Permeaters, standard dynamic gas diluters

Applications

Indoor Air Quality (IAQ) & Building Emissions: Calibrating photoionization detectors (PID), gas chromatographs, and mass spectrometers used to detect volatile organic compounds (VOCs) and aldehyde off-gassing from building materials and furnishings.

Colorimetric Detector Tube Audits: Laboratory verification and accuracy auditing of Gastec Acetaldehyde detector tubes (such as Gastec 92L and 92M series).

Industrial & Fermentation Monitoring: Calibrating process analyzers in chemical manufacturing, beverage/brewery quality control, and ethanol distillation plants.
