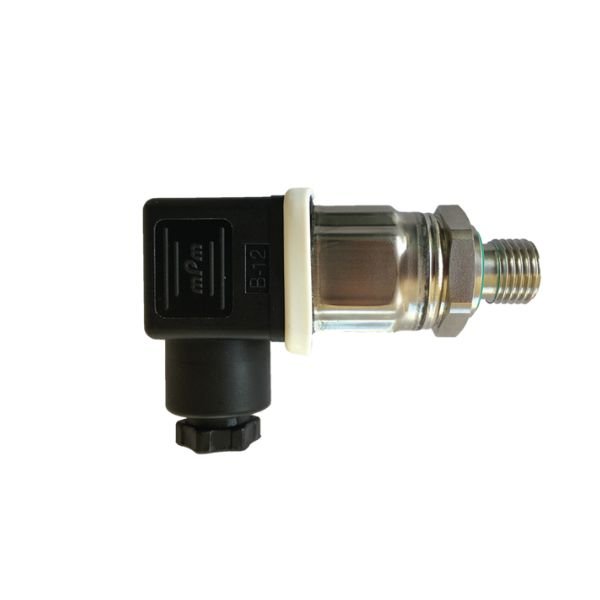

CS Instruments Precision Pressure Sensor CS -1…+15

CS Instruments Precision Pressure Sensor CS -1…+15 bar measures with an accuracy of full scale 0.5%.

CS Instruments Precision Pressure Sensor CS -1…+15 bar measures with an accuracy of full scale 0.5%.

ABOUT US

Since 2002, the name CS INSTRUMENTS stands for proven and innovative measurement technology for compressed air and gases, with subsidiaries and sales partners worldwide. The number of employees increased from one employee in the founding year 2002 to approximately 85 employees in Germany and 120 employees worldwide (as of June 2022).

Applications:

– Machine building
– Machine tools
– Measurement and control technology
– Hydraulics and pneumatics
– Pumps and compressors

Technical Data:

Wetted parts: 316L
Housing: 316L
Non-linearity: 0,5 BFSL
Parameter: bar
Type of pressure:: relative, absolute, vacuum
Measuring range: 0…16 bar, 32 bar overpressure limit
Process connections: G 1/4A according to DIN 3852-E
Sealing: NBR
Permissible temperature: 0…+80 °C
Output signal: 4…20 mA, 2-Leiter
Power supply: 8…30 VDC
Accuracy at room temperature: < ±1 % of span (optionally < ±0,5 % of span)
Electrical connection: Angular connector DIN EN 175301-803 A, ingress protection IP 65,
wire cross-section up to max. 1.5 mm², cable diameter: 6…8 mm
max. 50 Nm

Features

  • Output signal: 4…20 mA, 2-Wire
  • Power supply: 8…30 VDC

Applications

  • Machine building
  • Machine tools
  • Measurement and control technology
  • Hydraulics and pneumatics
  • Pumps and compressors

Specifications

  • Wetted parts: 316L
  • Housing: 316L
  • Non-linearity: 0,5 BFSL
  • Parameter: bar
  • Type of pressure:: relative, absolute, vacuum
  • Measuring range: 0…16 bar, 32 bar overpressure limit
  • Process connections: G 1/4A according to DIN 3852-E
  • Sealing: NBR
  • Permissible temperature: 0…+80 °C
  • Output signal: 4…20 mA, 2-Leiter
  • Power supply: 8…30 VDC
  • Accuracy at room temperature: < ±1 % of span (optionally < ±0,5 % of span)
  • Electrical connection: Angular connector DIN EN 175301-803 A, ingress protection IP 65,
    wire cross-section up to max. 1.5 mm², cable diameter: 6…8 mm

Downloads

Datasheet : CS Instruments Precision Pressure Sensor CS -1…+15
