Jain Xonic 100P Portable Ultrasonic Flowmeter

Product Note:

No product notes available.

Description

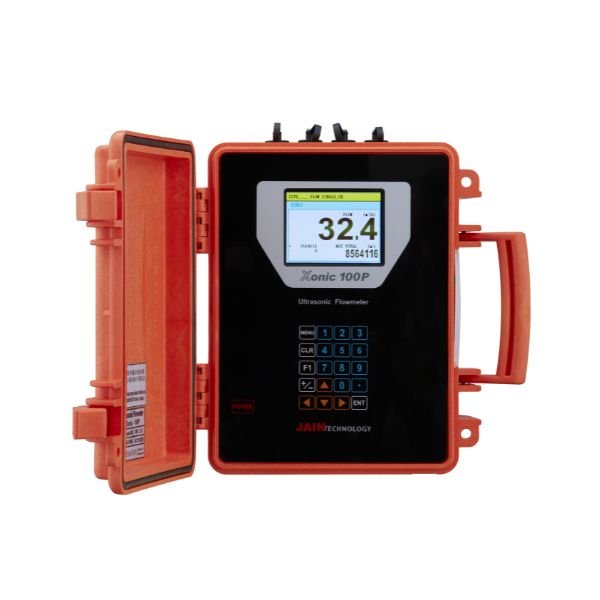

Jain Xonic 100P Portable Ultrasonic Flowmeter is a fully digitalized, easy-to-use portable flowmeter with only 2.4 kg weight. The Xonic 100P connectors are a submersible design that can be used under harsh environmental conditions including rain and sun light. Basic model has two pairs of transducer connectors for a dual path or dual channel. The Xonic 100P uses patent fine-timeTM DSP technology to measure virtually any type of liquids with less than 30% solids or bubbles, such as clean water, wastewater, crude oil, etc.

Types of liquid

Xonic 100P has a very strong signal, which can measure various liquids such as clean water, waste

water, milk, manure, limestone slurry, oil, gasoline, etc. Normally, transit time is only for

clean water, but Xonic 100P can measure all types of liquids using our patented fine-time TM DSP  technology.

  • Clean Liquids
  • Municipal Water, De-Ionized Water
  • Acids, Benzene, Milk, Beer
  • Crude Oil, Diesel, Alcohol

Jain Xonic 100P Portable Ultrasonic Flowmeter Performance

  • Waste Water, Lime Stone Slurries, Manure
  • Patented AR Mode
  • Flow Velocity ±0.02~20m/s
  • Oscilloscope Function
  • Large Color LCD Display
  • Touch Key Programming + Remocon
  • Submersible Connectors
  • 24 Hours Operation with Batteries
  • Patented Fine – TimeTM Measuring Technology
  • DSP Functions – Cross Correlation, FFT

Features

  • Waterproof Model
  • Rugged Case, IP65
  • Clamp-On, Transit-Time
  • 1 path, or dual path or 2 channel function
  • 24 hours of battery operation
  • IP65 Connectors
  • Submersible IP68 Transducers
  • Touch Key programming + Remocon
  • Large Color LCD Display
  • Pulse Output
  • Analog Output
  • RS-232C Communication
  • Datalogging Function
  • Weight 2.4Kg

Applications

  • As Standard Flowmeter: Xonic 100P can be used to check the performance of field flowmeters. The Xonic 100P can be used to compare field flowmeters performance.
  • As Field Flowmeter: The Xonic 100P as a portable device to spot-check various flow installation for virtually any liquids of up to 30% solids or bubbles.

Specifications

General
InstallationPipe size from DN20 – 6000mm
Measuring PrincipleTransit-Time, Anti-Round
ApplicationMunicipal Water, Waste Water, Block Flow Monitoring, Strong Acid, Solvent, Milk, Deni-Water, Oil, Sea Water, Cool and Hot Water, Liquids contains Heavy Slurry and Air, etc
Transducer TypeSubmersible, IP68, Temp. range: -40 ~ 120 ºC
Air/Slurries Contains30% Max
In/OutputAnalog OutputOne 4-20mA for flow rate
Relays OutputOne Relay for total or alarm
Required Straight Pipe Run10D upstream, 5D downstream, single path
7D upstream, 3D Downstream, dual path
DisplayColor Graphic LCD Display (flowrate: 4.5 digit, Total: 12 digit)Flowrate, Velocity, Total (POS,NEG,NET), Input Data(AI),Delta T, Ultrasonic Signal Shape, Frequency
Sound Speed TrackingAutomatic Sound Speed Tracking
Time Average Set
Datalogger32 Mbytes (more than 1,000,000 points Datalogging)
CommunicationRS-232C
Electronic
ProtectionIP67 Rain proof
Flow Velocity+/- 0.02 ~ 20m/sec
Turn Down Ratio1000.01.00
Accuracy+/- 1.0% single path (over 0.02 m/s)
+/- 0.5% dual path (over 0.02 m/s)
Power24 hours operation with rechargable battery (power adapter is AC85-264V)
Operation Temperature-20 ~ +60 ºC
Transducer
ProtectionSubmersible, IP68
Operation Temperature-40 ~ +120 ºC
CableRG-62A/U, standard 6meter, max 200meter
