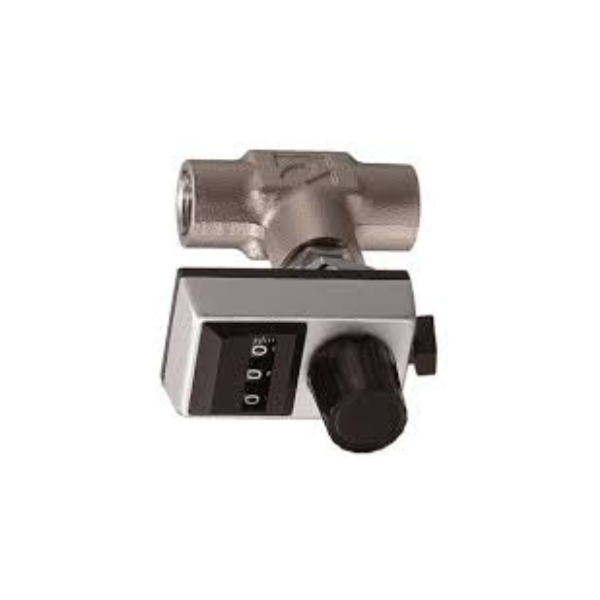

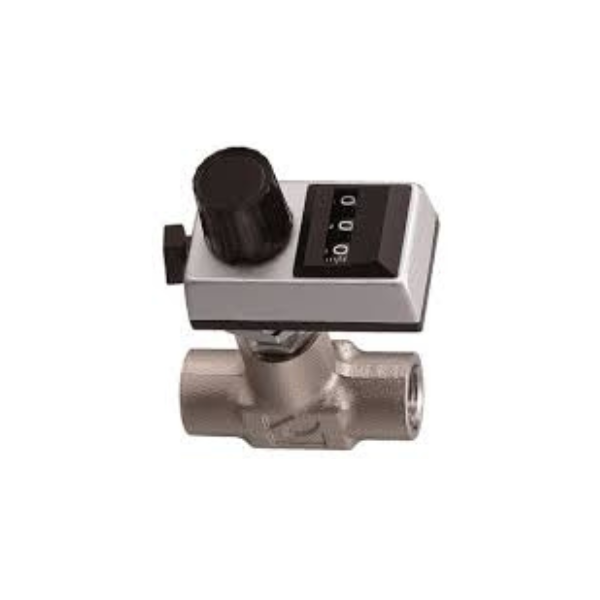

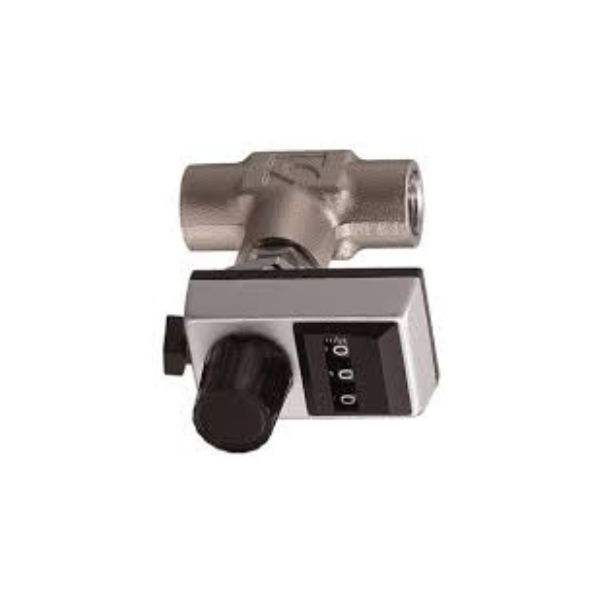

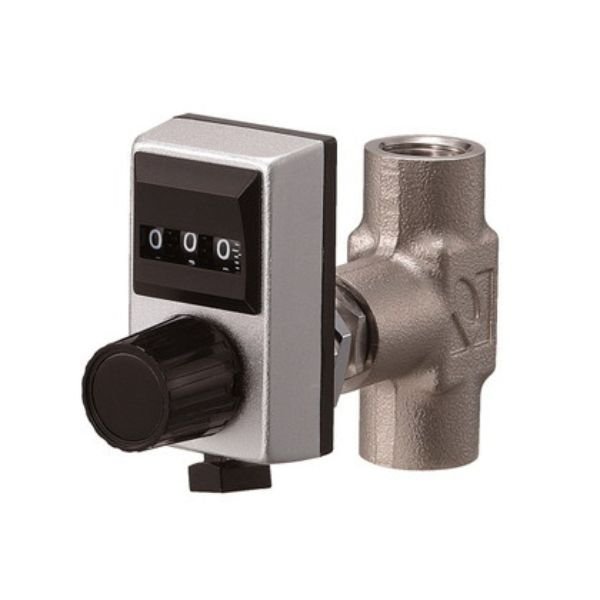

Kofloc Model 2412M Multidial Type Precision Needle Valve

Product Note:

No product notes available.

Description

Kofloc Model 2412M Multidial Type Precision Needle Valve

Kofloc Model 2412M Multidial Type Precision Needle Valve: This is an enhanced model of the KOFLOC Precision Needle Valve Model 2412, which now incorporates a multidial that allows the user to set desired flow rates by dial operations. This valve makes the most of the rotation-to-flow linearity and repeatability performance of the 2412 needle.

Notes:

  • For flow rating, please see the Table of Rated Flow Ranges for
    Model 2412.
  • You may specify the fluid and pressure flow of your equipment for our selection of the type that most suits your
    requirements.
  • The 2412M valve opens when it turns in the direction
    reverse to 2412.

KOFLOC strives for thorough quality control at domestic factories.
In recent years, we have also been focusing on product development for liquid measurement and control equipment, and we will deliver products that can be trusted as “Fluid Kofloc” to the world.

Features

  • Since a precision needle valve usually has superior flow characteristics and repeatability, it can be used in place of a needle valve flowmeter.
  • Wide variations are available for both the needle valve (Type T, Type L, and so on) and the multidial (Standard Type, Round Type, and so on).
    Note: No scale calibration is required for the multidial.

Applications

  • Detection of deteriorated filters
  • Substitute for a flowmeter
  • Detection of fluctuations of flow path resistance

Specifications

Regulating screw rotating speedMultidial: 10 turns (Overscale possible)
Needle valve: Approx. 12 turns
Multidial scale3-digit setting (000-999)
Multidial typeA: Standard multidial
B: Round multidial
FluidsGases and liquids
Connection endRc1/4; Rc1/8 (Optional)
Rated flow rangesSee Table of Rated Flow Ranges for Model 2412

Downloads

Datasheet : Kofloc Model 2412M Multidial Type Precision Needle Valve
