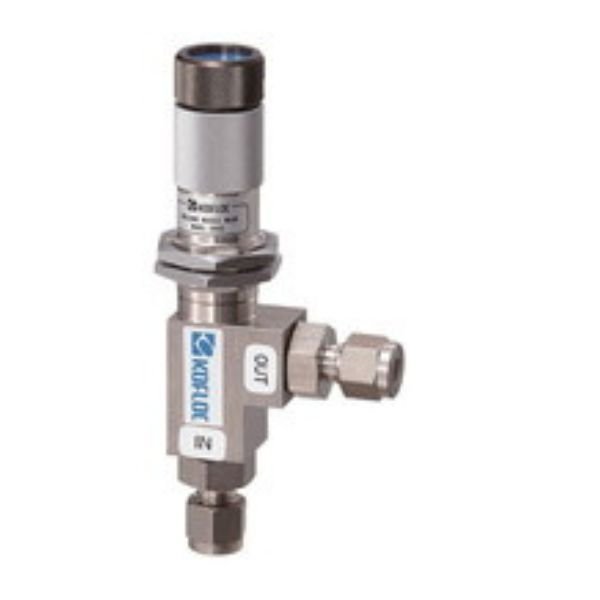

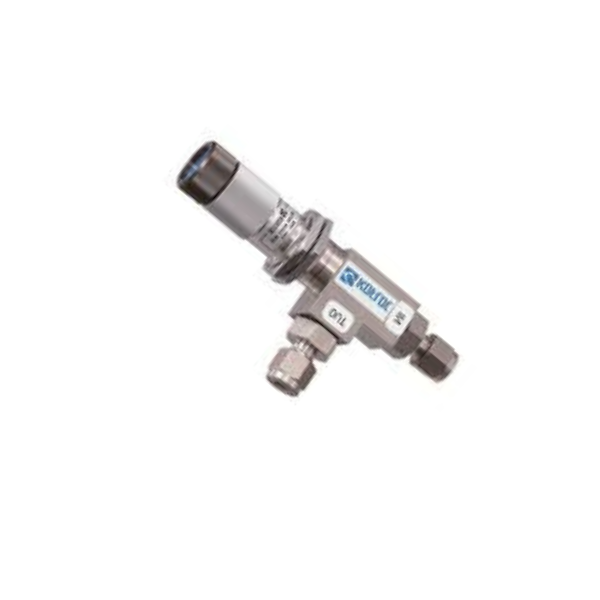

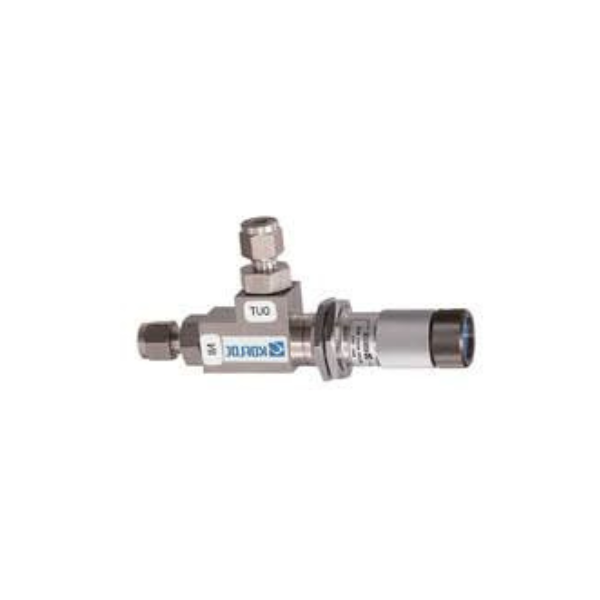

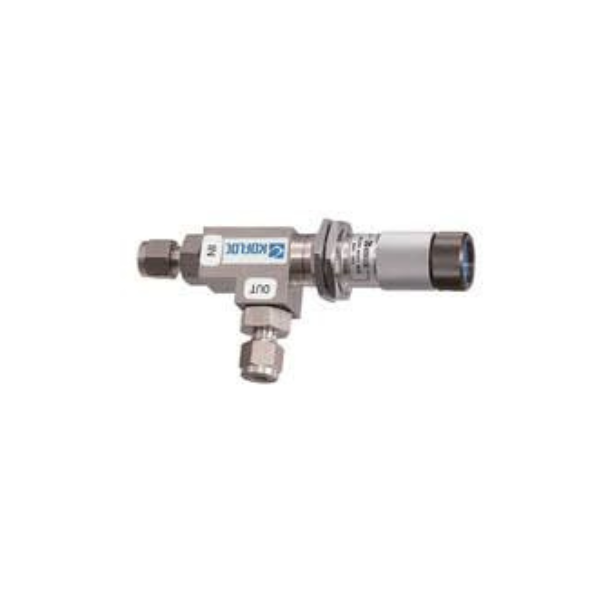

Kofloc Model 2450 Bellows Needle Valve

Kofloc Model 2450 Bellows Needle Valve: This bellows seal type needle valve has been specifically developed so that it can satisfy the requirements for such areas in which leak is a concern of vital importance.
Kofloc Model 2450 Bellows Needle Valve has a construction to drastically prevent fluid leaks. In addition, it is outstanding in heat resistance and corrosion resistance, so the customer can use it with peace of mind not only in such adverse conditions where high vacuum, high pressure, high temperature, or extremely low temperature is present but also for corrosive, toxic, or costly fluids.

Kofloc Model 2450 Bellows Needle Valve: This bellows seal type needle valve has been specifically developed so that it can satisfy the requirements for such areas in which leak is a concern of vital importance.
Model 2450 Bellows Needle Valve has a construction to drastically prevent fluid leaks. In addition, it is outstanding in heat resistance and corrosion resistance, so the customer can use it with peace of mind not only in such adverse conditions where high vacuum, high pressure, high temperature, or extremely low temperature is present but also for corrosive, toxic, or costly fluids.

KOFLOC strives for thorough quality control at domestic factories.
In recent years, we have also been focusing on product development for liquid measurement and control equipment, and we will deliver products that can be trusted as “Fluid Kofloc” to the world.

Features

  • Stringent leak test (2 x 10-8 Pam3/sec)
    A 100% leak test is conducted before shipping, using a helium leak detector.
  • Use of a precision needle
    The incorporated non-rotary type needle provides precise, smooth control of minute flows.
  • Compatible with both gases and liquids
    Superior temperature characteristic
    Flows are scarcely affected by ambient temperature fluctuations, remaining within an insignificant range of flow variations.
    This superior temperature characteristic is applicable to gases only, and not to liquids, because the viscosity of a liquid may greatly vary depending upon the temperature conditions.

Applications

  • For vacuum systems
  • For semiconductor manufacturing lines
  • For production lines where toxic or corrosive gases are present

Specifications

Rated flow ranges See the table below
Number of turns of regulating screw Approx. 13–16 turns (Effective number of turns: 5–16)
Maximum operating pressure 1 MPa
Maximum operating temperature 120℃
Fluids Gas and liquid
Materials of parts in contact with fluids SUS316, fluorocarbon resin, FKM
Connection end 1/4 swagelok (for joint) * Optional: 1/8SW

Downloads

Datasheet : Kofloc Model 2450 Bellows Needle Valve
