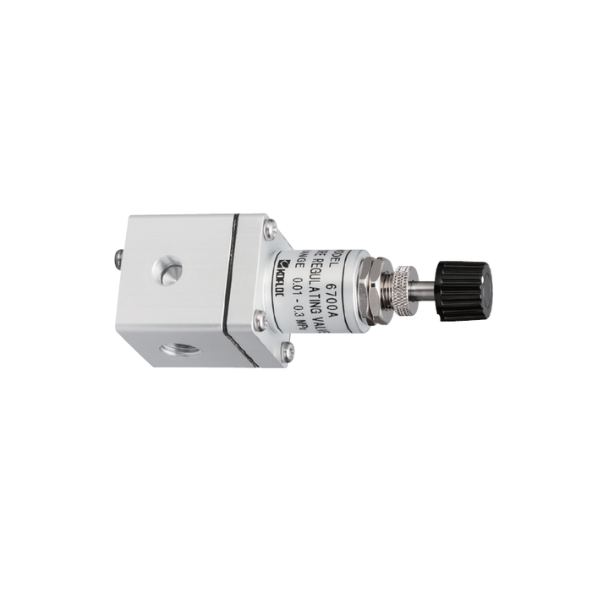

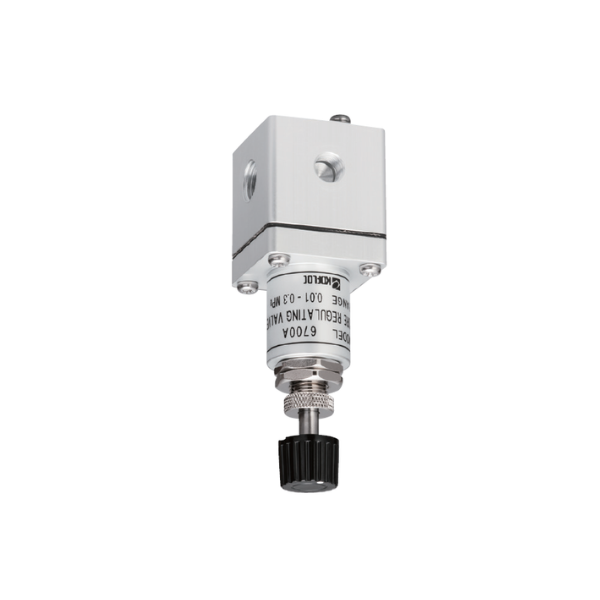

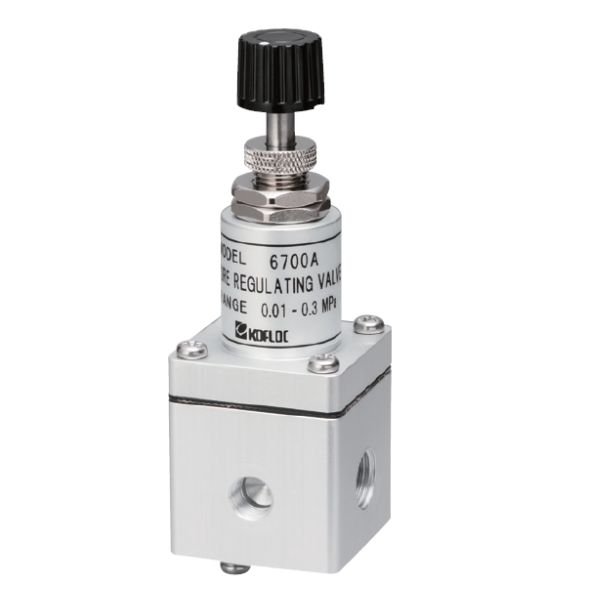

Kofloc Model 6700 Large Capacity Pressure Regulating Valve

Kofloc Model 6700 Large Capacity Pressure Regulating Valve for Analyzer. The design is compact, yet it permits quick, reliable, high-accuracy pressure regulation in a large flow range.

Kofloc Model 6700 Large Capacity Pressure Regulating Valve for Analyzer. The design is compact, yet it permits quick, reliable, high-accuracy pressure regulation in a large flow range.

Pressure-regulating valves are classified into reducing valves and back-pressure valves. Reducing valves are adjustment valves that make the secondary-side pressure constant when the pressure on the primary side changes, and are used at the first stage of systems in general. Meanwhile, back-pressure valves are used to keep the primary-side pressure constant by releasing the primary-side pressure when it has exceeded the set value.

KOFLOC strives for thorough quality control at domestic factories.
In recent years, we have also been focusing on product development for liquid measurement and control equipment, and we will deliver products that can be trusted as “Fluid Kofloc” to the world.

Features

Compact regulating valve for large flow
The compact, lightweight valve has excellent control characteristics in a large flow range, ensuring the repeatability of ±1% when the primary and secondary pressure change.

  • Complete fluid shutoff
    When the secondary pressure is set at 0, it functions also as a stop valve.
  • Ideal for in-line mounting
    The fluid inlet and outlet are provided on the sides of the body, permitting
    easy in-line piping.
  • Non-bleed type
    This non-bleed type valve has passed stringent leak tests, thus eliminating concerns.

Applications

Specifications

Model 6700A 6700B
Maximum primary pressure 0.9MPa
Secondary control pressure 0.01-0.3MPa 0.05-0.6MPa
Minimum operating differential
pressure
0.05MPa
Proof pressure 1MPa
Repeatability Within ±1% of the pressure rating
Heat resistance 5℃-60℃
Flow rating See the graph.
Connection end Rc 3/8 (standard), Rc 1/4
Materials of parts in contact
with fluids
(A) Al, BSBM, NBR, POM, SUS316
(SS)SUS316, FKM, fluorocarbon resin

Downloads

Datasheet : Kofloc Model 6700 Large Capacity Pressure Regulating Valve for Analyzer
