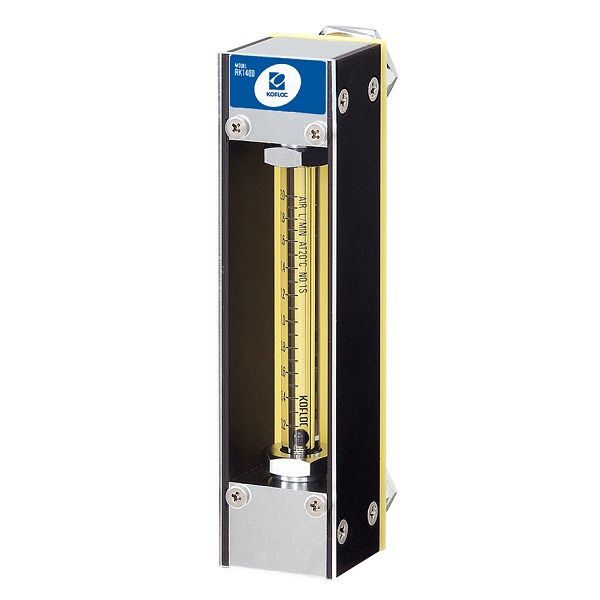

Kofloc Model RK1400 High Pressure Flowmeter

Kofloc Model RK1400 High Pressure Flowmeter this top-grade high precision, float-type area flowmeter is a fruit of KOFLOC’s challenge to boost the general perception currently conceived by people of a flowmeter of being a “mere yardstick” into a new conception that a flowmeter is a “precision instrument.”

Kofloc Model RK1400 High Pressure Flowmeter this top-grade high precision, float-type area flowmeter is a fruit of KOFLOC’s challenge to boost the general perception currently conceived by people of a flowmeter of being a “mere yardstick” into a new conception that a flowmeter is a “precision instrument.” This flowmeter particularly features its uniquely precision-formed glass tube and ultraprecision ball float that ensures accurate measurements of minute flows to medium flows.

Features Kofloc Model RK1400 :

  • Capable of measuring ultra-minute flows
  • High-precision measurement of flows
  • Wide variations

Applications Kofloc Model RK1400 :

  • For integration into your equipment panel
  • For flow inspections at the laboratory
  • For semiconductor manufacturing equipment
  • For biotechnology industries

Features

  • Capable of measuring ultra-minute flows
  • High precision measurement of flows
  • Wide variations

Applications

  • For integration into your equipment panel
  • For flow inspections at laboratory
  • For semiconductor manufacturing equipment
  • For biotechnology industries

Specifications

Gases Liquids
Fluids Air, N2, O2, H2, He, Ar, and CO2 (Calibration by actual gas)
For other gases, consultation is necessary regarding
whether conversion conditions or calibration by actual gas is to be used.
* Optional: Scale indicating two types of fluids
Standard fluid: Water
For other liquids, consultation is necessary regarding whether conversion conditions or calibration by actual liquid is to be used.
Flow range 0.5-5 ML/MIN to 10-100 L/MIN (See the Capacity Table below.)
Optional: 0.5-3 ML/MIN
0.5-5 ML/MIN to 0.3-3 L/MIN (See the Capacity Table below.)
* Optional: 0.5-3 ML/MIN
Accuracy FS±2% (Measurement point)
* Optional: FS±1% (Measurement point)
FS±2% (Measurement point)
Proof pressure 1.0 MPa for 100 ML/MIN or less
0.7 MPa for 5 L/MIN or less
0.5 MPa for 10 L/MIN or more
1.0 MPa for 5 ML/MIN or less
0.7 MPa for 150 ML/MIN or less
0.5 MPa for 200 ML/MIN or more
Available scale 10:1 * Optional: 20:1
Materials SS BS*
Body block SUS316, SUS304 Brass
Tapered tube Pyrex®, glass
Packing FKM NBR
Float Pyrex, SUS 316, SUS 304 or SUS 303 (for measurement of H2O in the flow range of 2-3 L/MIN only), glass
Protective cover Acrylic resin
Temperature
resistance
MAX60℃
Connection end Rc1/4 (Standard); Rc1/8 (Optional)
Air (Flow rate at atmospheric pressure)
Max. flow rate 5 10 20 30 50 100 150 200 300 500 1 2 3 5 10 15 20 30 50 100
Total length ML/MIN ML/MIN ML/MIN ML/MIN ML/MIN ML/MIN ML/MIN ML/MIN ML/MIN ML/MIN L/MIN L/MIN L/MIN L/MIN L/MIN L/MIN L/MIN L/MIN L/MIN L/MIN
120mm
150mm
200mm
250mm
H2O
Max. flow rate 5 10 20 30 50 100 150 200 300 500 1 2 3
Total length ML/MIN ML/MIN ML/MIN ML/MIN ML/MIN ML/MIN ML/MIN ML/MIN ML/MIN ML/MIN L/MIN L/MIN L/MIN
120mm
150mm
200mm
250mm

Downloads

Datasheet: Kofloc Model RK1400 High Pressure Flowmeter
