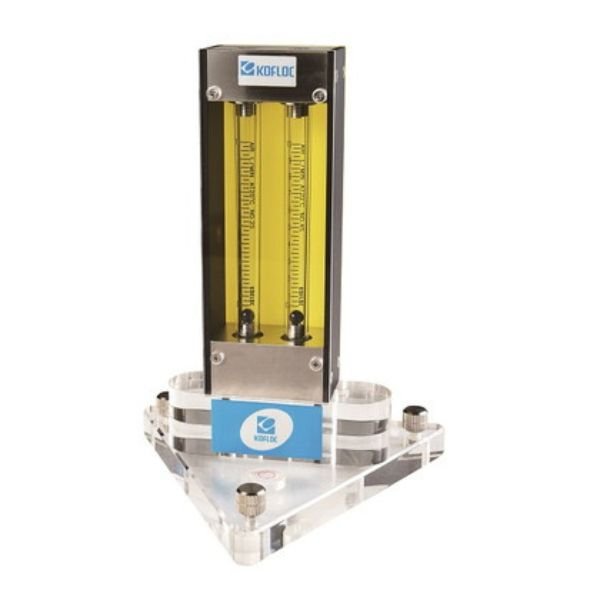

Kofloc Model RK140X Multiple Flow Meter

Kofloc Model RK140X Multiple Flow Meter this multiple flow meter is made by combining several types of flow meters for control of various flows in a laboratory. It is designed based on the RK1400, a high-precision flow meter with high performance. It is recommended to install one unit to facilitate flow measurement in the laboratory.

Kofloc Model RK140X Multiple Flow Meter this multiple flow meter is made by combining several types of flow meters for the control of various flows in a laboratory. It is designed based on the RK1400, a high-precision flow meter with high performance. It is recommended to install one unit to facilitate flow measurement in the laboratory.

Features Kofloc Model RK140X :

  • Multiple measurements of two to four flowmeters
  • Two to four flow meters can be attached to one unit to permit control of various gases in various flow ranges.
  • The flow meter can measure a variety of flows ranging from the very small flow of full-scale 5 ML/MIN to 20 L/MIN.
  • High-precision measurement
  • This flow meter is provided with a flow meter tube equivalent to that of the precision flow meter RK1400, permitting high-precision measurement at ±2% F.S.
  • Stand convenient for measurement
  • The model has a stand with a level adjuster for convenient use in a laboratory.
  • For measurement of multiple components
  • For measurement of multiple ranges
  • Flow checker in laboratories

Features

  • Multiple measuremens of two to four flow meters
    Two to four flow meters can be attached to one unit to permit control of various gases in various flow ranges.
  • Various flow ranges
    The flow meter can measure a variety of flows ranging from the very small flow of full-scale 5 ML/MIN to 20 L/MIN.
  • High-precision measurement
    This flow meter is provided with a flow meter tube equivalent to that of the precision flow meter RK1400, permitting high-precision measurement at ±2% F.S.
  • Stand convenient for measurement
    The model has a stand with a level adjuster for convenient use in a laboratory.
  • For measurement of multiple components
  • For measurement of multiple ranges
  • Flow checker in laboratories

Applications

  • Air,N2,O2,H2,He,Ar,CO2 (Calibration with actual gas)

Specifications

Fluids Air,N2,O2,H2,He,Ar,CO2 (Calibration with actual gas)
For other gases, please consult us regarding conversion conditions
or calibration with the actual gas to be used.
Flow range From 0.5–5 ML/MIN to 2–20 L/MIN
(Refer to the Capacity Table on page 65.)
* Optional: 0.5–3 ML/MIN
Accuracy FS ±2% (Measurement point)
* Optional: FS ±1% (Measurement point)
Proof pressure 0.5MPa
Material SS BS
Body block SUS316 Brass
Tapered tube Pyrex®
Packing FKM * Option (1) NBR
Float Pyrex, SUS316
Protective cover Acrylic resin
Temperature resistance MAX60℃
Connection Rc 1/4 (Standard), Rc 1/8 (Optional)
* Option (1): Fluorocarbon resin, Kalrez, Perfluoro, etc.

Downloads

Datasheet: Kofloc Model RK140X Multiple Flow Meter
