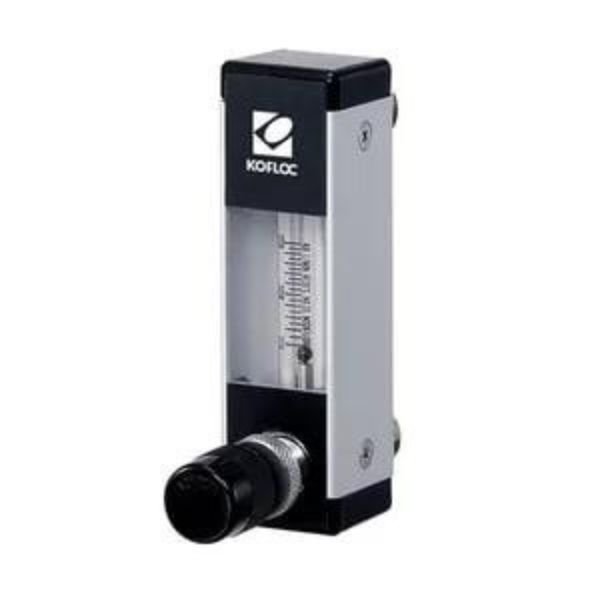

Kofloc Model RK1650 Flowmeter

Kofloc Model RK1650 Flowmeter this is a completely renewed model of the existing KOFLOC RK1600R with a sophisticated design to fit sophisticated laboratory or plant equipment

Kofloc Model RK1650 Flowmeter An area flow meter has a float in a conical cylinder (tapered tube) with a larger end in the upper section and a smaller end in the lower section. The float moves up and down according to the intensity of the flow, and the position at which the float balances indicates the flow rate. Not only simple flow meters that merely measure the flow rate but also flow meters with a valve for flow control, flow meters with a load pressure fluctuation type flow controller, flow meters with a supply pressure fluctuation type flow controller, and flow meters with an alarm switch are available.

Kofloc RK1650 Series Features :

Compact: A compact flowmeter with variations of a total length of 84 mm,104mm,124mm, and 154mm for choice according to the user’s needs
Low-pressure loss: Pressure loss minimized to allow applications for low-supply pressure
Superior stability: All tubes are precision-formed to provide the float with outstanding repeatability and stability
Economical: A flowmeter at quite an affordable price achieved through our all-out effort at streamlined design

Applications :

For environmental instrumentation systems
For general instruments for analysis
For purge systems
For semiconductor manufacturing equipment

Features

  • Compact. A compact flowmeter with variations of total length of 84 mm, 104 mm, 124 mm and 154 mm for choice according to the user’s needs
  • Low pressure loss. Pressure loss minimized to allow applications for low supply pressure
  • Choice of needle valve to suit the user’s needs. Four types of needle valve available for your choice according to the requirement of supply pressure
  • Superior stability. All tubes are precision-formed to provide the float with outstanding repeatability and stability.
  • Economical. A flowmeter at quite affordable price achieved through our all-out effort at streamlined design

Applications

  • For environmental instrumentation systems
  • For general instruments for analysis
  • For purge systems
  • For semiconductor manufacturing equipment

Specifications

Fluids Air, N2, O2, H2, He, Ar, and CO2 (Calibration by actual gas)
For other gases, consultation is necessary regarding whether
conversion conditions or calibration by actual gas is to be used.
Flow range (Full scale) 1L, 2L, 3L, 5L, 10L, 15L, 20L/MIN
Accuracy FS±5% (Measurement point)
Proof pressure 0.8 MPa for 5 L/MIN or less
0.5 MPa for 10 L/MIN or more
Available scale 10:1
Materials S BS
Body block and some
other components
SUS304, SUS303 Brass
Tapered tube Pyrex®, glass
Packing FKM NBR
Float Pyrex, SUS316, glass
Protective cover Acrylic resin
(Temperature resistance) MAX60℃
Connection Rc1/8 (Standard); Rc1/4 (Optional)

Downloads

Datasheet: Kofloc Model RK1650 Flowmeter
