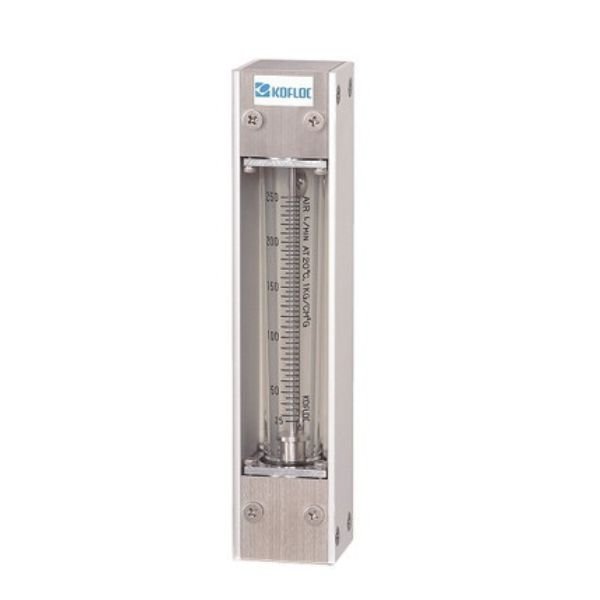

Kofloc Models RK2000/RK2005/RK2006 Large Capacity Flowmeters

Kofloc Models RK2000/RK2005/RK2006 Large Capacity Flowmeters these are large capacity float type flowmeters. Flows within the ranges of 200 to 1,000 L/MIN (for gases) and 10 L/MIN to 30 L/MIN (for liquids) full scale can be measured and controlled.

Kofloc Models RK2000/RK2005/RK2006 Large Capacity Flowmeters These are large-capacity float-type flowmeters. Flows within the ranges of 200 to 1,000 L/MIN (for gases) and 10 L/MIN to 30 L/MIN (for liquids) full scale can be measured and controlled. Measurements of large flows are available. The valve arrangement is available at the top. Reed Switch for the Alarm function. RoHS

  • Capable of measuring/controlling large flows of gases in the ranges of 200 to 1,000 L/MIN full scale (Air calibration)
  • Capable of measuring/controlling large flows of liquids in the ranges of 10 to 30 L/MIN full scale (Water calibration)
  •  Can be mounted onto various types of measuring instruments and sampling systems, and in diverse plants

– Fluid Models RK2000/RK2005/RK2006:
Gas : N₂,Air,H₂,He,Ar,O₂,CO₂ etc.
Liquid: H₂O
– Flow range Models RK2000/RK2005/RK2006:
Gas :100~1000L/min
Liquid : 10~30L/min
– Accuracy Models RK2000/RK2005/RK2006:

±5%F.S.

Features

  • Capable of measuring/controlling large flows of gases in the ranges of 200 to 1,000 L/MIN full scale (Air calibration)
  • Capable of measuring/controlling large flows of liquids in the ranges of 10 to 30 L/MIN full scale (Water calibration)
  • Low prices
    Can be mounted onto various types of measuring instruments and sampling systems, and in diverse plants.

Applications

  • Gas N2,Air,H2,He,Ar,O2,CO2 etc.
  • Liquid H2O

Specifications

Fluids Gases and liquids (Calibration conditions for other fluids)
Accuracy Within FS±5%
Proof pressure 0.7MPa
Materials S BS
Body block and some other components SUS304 Brass
Tapered tube Pyrex®, glass
Packing FKM, fluorocarbon resin NBR, POM
Float SUS304
Protective cover Acrylic resin
Temperature resistance MAX 60℃ (RK2000), 10-30℃ (RK2005, RK2006)
Length designation code Air (L/MIN)(at atmospheric pressure) H2O L/MIN
20
Connection
Rc3/8
20-200 *1.0-10
25-250
30-300
25
Connection
Rc3/4
40-400 1.5-15
50-500 *2.0-20
70-700 *3.0-30
100-1000
* The RK2005 and RK2006 are compatible with flow ranges marked with asterisks (*) only.

Downloads

Datasheet: Kofloc Models RK2000,RK2005,RK2006 Large Capacity Flowmeters
