Sale!

Original price was: Rp 27.600.000.Current price is: Rp 27.534.000.

Level Switch Equivalent EH TL51B-AAA2ABAAA3BJI1VC

Name: Level Switch Equivalent EH TL51B-AAA2ABAAA3BJI1VC | onoae
SKU: EHTL51B-AAA2ABAAA3BJI1VC
Price: 27534000 IDR
Availability: InStock

Minimum Order: 1 units

Lead Time: 7 weeks

Lead Time Note: 6 - 7 Minggu

Product Note:

No product notes available.

SKU: EHTL51B-AAA2ABAAA3BJI1VC Categories: Level Measurement, Level Switch Tags: Level Measurement, Level Switch, Level Switch Equivalent EH TL51B-AAA2ABAAA3BJI1VC

Available on backorder

Description

Description of Level Switch Equivalent EH TL51B-AAA2ABAAA3BJI1VC

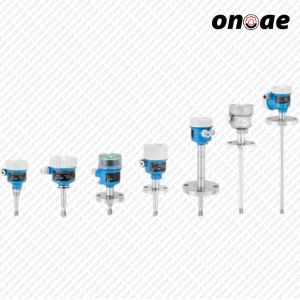

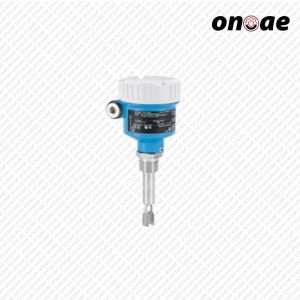

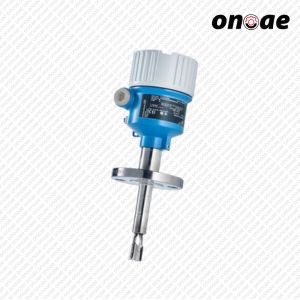

The Liquiphant FTL51B is a vibronic point-level switch for liquid level detection. Its probe can be flush-mounted or threaded with an extension tube up to 6 m. Designed to be robust for all industrial sectors, including hazardous zones, and developed according to IEC 61508 for SIL2/SIL3 applications. Standard outputs are PNP transistors (10-55 VDC) and there is a Bluetooth SmartBlue module plus heartbeat diagnostics for wireless maintenance and automated documentation.

Features

Vibronic technology (tuning fork): Fast level detection independent of liquid properties-including viscosity, bubbles, foam, and vibration.
Modular configuration: choice of housing (aluminum or plastic), NPT connection, flange, or hygienic Tri-Clamp.
Heartbeat Technology: self-diagnostics, verification reports, integration to SCADA/NAMUR NE107.
Bluetooth connectivity: easy setup and proof-test via mobile phone with SmartBlue app.
Full range of output options: PNP/NPN transistor, DPDT relay, 4-20 mA HART, NAMUR, test button

Applications

Point level (min/max) detection for various liquids in tanks, pipelines and vessels.
Detection in industrial & chemical environments, including hazardous zones requiring SIL2/3.
Fuel tanks, oils, chemicals, waste solutions-including hygienic applications (food/pharma) with Tri-Clamp option.
Process water/wastewater control, and overfill prevention systems.

Specifications

Model FTL51B TL51B-AAA2ABAAA3BJI1VC
Measurement Principle Vibronic tuning fork
Process Temperature -50…+150°C (-58…+302°F)
Process Pressure Vacuum…100 bar (1450 psi)
Minimum Density 0.5 g/cm³ (option 0. 4 g/cm³)
SIL/Functional Safety SIL2/SIL3 (IEC 61508)
Hazardous Zones ATEX, IECEx, CSA, NEPSI, WHG (overfill)
Electrical Outputs 3-wire PNP 10-55 VDC + test button; optional test button/4-20 mA/HART
Bluetooth Diagnosis & Heart Rate Diagnostics
Housing & Water Entry Protection Aluminum/plastic; IP66/68; M20 cable gland
Process Connections Thread, flange, Tri-Clamp; probe lengths up to 6 m
