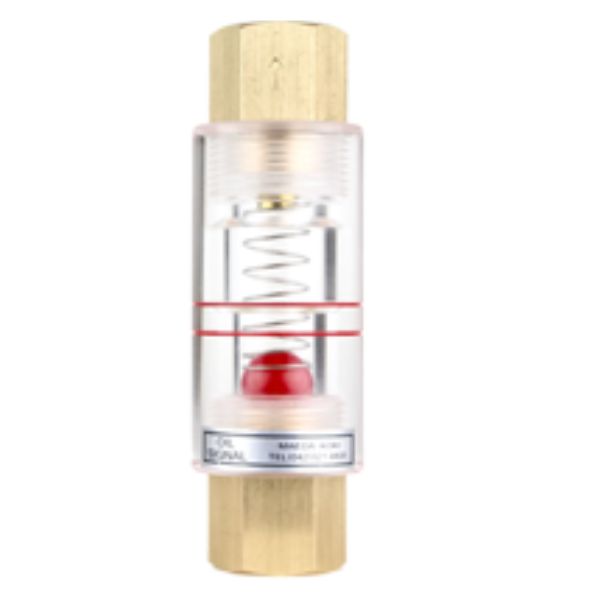

Maeda Koki MK type OIL SIGNAL – Flow Indicator

Water signal flow indicator and Oil signal MK model produced by Maeda Koki in Japan, Oil signal and Water signal Model MK have a function for detecting minimal flow

Water signal flow indicator and Oil signal MK model produced by Maeda Koki in Japan, Oil signal and Water signal Model MK have a function for detecting minimal flow. MK water signal manufactured using an acrylic tube is limited to the use of 80 ℃ or less. (Flow switch of the product is limited to the use of 60 ℃ or less.)

Features

I can see a flow at first sight. It is a rheoscope confirming fluid flow by the movement of transparent balls (or a float) in the jurisdiction.
I cannot confirm the flow quantity. The installation direction does not matter
The posture when attach it as use a spring inside looks up and look down; and
I can perform sideways-facing freely.

Applications

  • Water, Air, and Oil

Specifications

Fluid Oil
Connection Rc internal thread Change to R screw
The combination with the R screw is possible, too.
Heat-resistant temperature A maximum of 80 degrees Celsius
Withstand pressure 1MPa
Materials Transparent pipe Acrylic
Coupling C3604 (brass) I can produce the product made in SUS, too.
Spring SUS304
Nylon ball Nylon 66 I may use a cylindrical float.

Downloads

Datasheet: Maeda Koki MK type OIL SIGNAL – Flow Indicator
