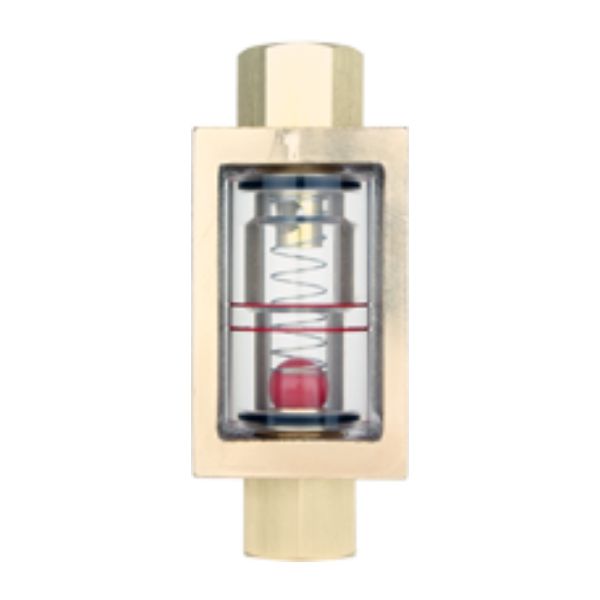

Maeda Koki MKC type OIL SIGNAL – Flow Indicator

Maeda Koki MKC confirms a flow of the oil by viewing by the moving ball with a protective cover.

Maeda Koki MKC confirms a flow of the oil, water, and air by viewing by the moving ball with a protective cover.

Features

I can see a flow at first sight
It is a rheoscope confirming fluid flow by the movement of transparent balls (or a float) in the jurisdiction.
I cannot confirm the flow quantity.
With protective cover
By a metal protective cover, I reduce possibility of the damage by shocks from the outside.
The installation direction does not matter
The posture when attach it as use a spring inside looks up and look down; and
I can perform sideways-facing freely.

Applications

  • Water, Air, and Oil

Specifications

Fluid Oil
Connection Rc internal thread Change to R screw
The combination with the R screw is possible, too.
Heat-resistant temperature A maximum of 80 degrees Celsius I can produce the heat-resistant specifications (in the case of oil a maximum of 150 degrees Celsius), too.
Withstand pressure 1MPa
Materials Transparent pipe Acrylic The heat-resistant specifications become the Pyrex glass.
Protective cover BC (gunmetal) I can produce the product made in aluminum, too.
Coupling C3604 (brass) I can produce the product made in SUS, too.
Spring SUS304
Nylon ball Nylon 66 I may use a cylindrical float.
O ring Nitrile rubber The heat-resistant specifications become the fluorine rubber.

Downloads

Datasheet: Maeda Koki MKC type OIL SIGNAL – Flow Indicator
