Maeda Koki MKCT type OIL SIGNAL-Flow Indicator

Maeda Koki MKCT type OIL SIGNAL-Flow Indicator and Oil signal MKCT model produced by Maeda Koki in Japan, Oil signal and Water signal Model MKCM have a function for detecting minimal flow.

Maeda Koki MKCT type OIL SIGNAL-Flow Indicator and Oil signal MKCT model produced by Maeda Koki in Japan, Oil signal and Water signal Model MKCM have a function for detecting minimal flow. MKCT water signal manufactured using acrylic tube is limited to the use of 80 ℃ or less. (Flow switch of the product is limited to the use of 60 ℃ or less.)

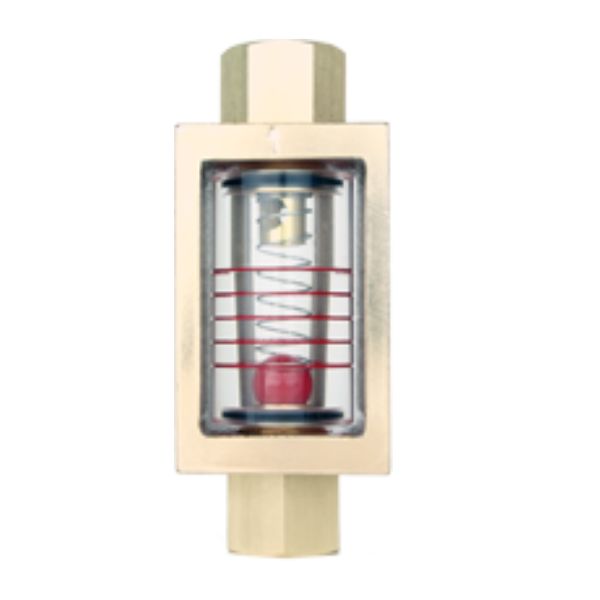

Maeda Koki MKCT Oil, Signal Indicator is the flow sight that confirms the flow of a fluid by the motion of the float in a transparent tube. Since this product is protected with a metal protection cover, it does not almost have a fear of breakage by the impact from the outside, etc.

Since the spring is being used for this product in a transparent tube, the postures when attaching are free, such as facing up, facing down, and sideways. A maximum of 80℃ of oil heat-resistant products can be used. Standard pressure resistance: 1MPa

Features

  • It shows flow quantity by viewing.
    Because use a transparent taper pipe, with a ball (or afloat) and the indication red line.
    It can confirm approximate flow quantity by looking at the position concerned.
  • With protective cover.
    By a metal protective cover, I reduce the possibility of damage by shocks from the outside.
  • The installation direction does not matter.
    The posture when attaching it as using a spring inside looks up and look down, and it can perform sideways-facing freely.

Applications

  • Clean water application
  • Clean oil application
  • Clean air application

Specifications

Standard specifications (protest a form)

Fluid Oil
Connection Rc internal thread Change to R screw
The combination with the R screw is possible, too.
Heat-resistant temperature A maximum of 80 degrees Celsius
 Withstand pressure 1MPa
Materials Transparent taper pipe Acrylic
Coupling C3604 (brass) I can produce the product made in SUS, too.
 Protective cover BC I can produce the product made in aluminum, too.
Spring SUS304
Nylon ball Nylon 66 I may use a cylindrical float.
O ring Nitrile rubber

Standard specifications (for the copper pipe)

 Fluid Oil
Connection The reference mentioned above
 Heat-resistant temperature A maximum of 80 degrees Celsius
Withstand pressure 1MPa
Materials Transparent taper pipe Acrylic
Coupling C3604 (brass)
Cap nut C3604 (brass)
 Zipper sleeve Cu
 Protective cover BC I can produce the product made in aluminum, too.
Spring SUS304
Nylon ball Nylon 66 I may use a cylindrical float.
O ring Nitrile rubber

List of models

Model    Dimensions (mm) Maximum flow quantity
(L/min)
Connection Full length Overall width Depth
Right?
ji
Include
See
Form
MKCT20-1TL  Rc1/8 80 30 22 5
MKCT20-2TL Rc1/4 80 30 22 5
MKCT20-3TL Rc3/8 86 30 22 5
MKCT30-2TL Rc1/4 104 43 32 10
MKCT30-3TL Rc3/8 104 43 32 10
MKCT30-4TL Rc1/2 110 43 32 10
MKCT35-4TL Rc1/2 145 50 44 25
MKCT35-6TL Rc3/4 145 50 44 25
MKCT45-6TL Rc3/4 171 62 50 50
MKCT45-8TL Rc1 171 62 50 50
Copper
Pipe
Business
MKCT20-4 φ 4 98 30 22 1.5
MKCT20-6 φ 6 100 30 22 4
MKCT20-8 φ 8 102 30 22 5
MKCT20-10 φ 10 107 30 22 5
MKCT30-10 φ 10 126 43 32 10
MKCT30-12 φ 12 126 43 32 10
MKCT30-14 φ 14 135 43 32 10



Downloads

Datasheet: Maeda Koki MKCT type OIL SIGNAL-Flow Indicator
