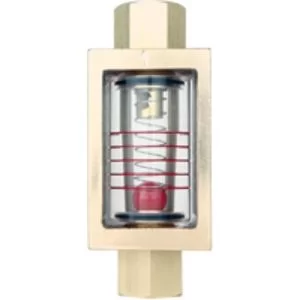

Maeda Koki MKCT Type Air Signal – Flow Indicator

Since the spring is being used for this product in a transparent tube, the postures when attaching are free, such as facing up, facing down, and sideways.

Maeda Koki MKCT Type Air Signal – Flow Indicator

Maeda Koki MKCT Type Air Signal – Flow Indicator is the flow sight that confirms the flow of a fluid by the motion of the float in a transparent tube. Since this product is protected with a metal protection cover, it does not almost have a fear of breakage by the impact from the outside, etc.

Since the spring is being used for this product in a transparent tube, the postures when attaching are free, such as facing up, facing down, and sideways. A maximum of 80℃ of oil heat-resistant products can be used. Standard pressure resistance: 1MPa

Features

  • It shows flow quantity by viewing
    Because use a transparent taper pipe, with a ball (or afloat) and the indication red line. It can confirm approximate flow quantity by looking at the position concerned.
  • With protective cover
    By a metal protective cover, I reduce the possibility of damage by shocks from the outside.
  • The installation direction does not matter
    Because use a spring inside, the posture when attach it looks up and look down; and It can perform sideways-facing freely.

Applications

MKCT is a flow indicator, flow switch, and flow control depending on the type. It can confirm gaseous approximate flow quality of the water by viewing. With protective cover.

Specifications

Standard specifications

Fluid
Gas
Connection
Rc internal thread
Change to R screw
The combination with the R screw is possible, too.
Heat-resistant temperature
A maximum of 80 degrees Celsius
 Withstand pressure
1MPa
Materials
Transparent pipe
Acrylic
Coupling
C3604 (brass)
I can produce the product made in SUS, too.
 Protective cover
BC
I can produce the product made in aluminum, too.
Spring
SUS304
Nylon ball
Nylon 66
I may use a cylindrical float.
O ring
Nitrile rubber

Downloads

Maeda-Koki-Flow-Indicator-Signal
