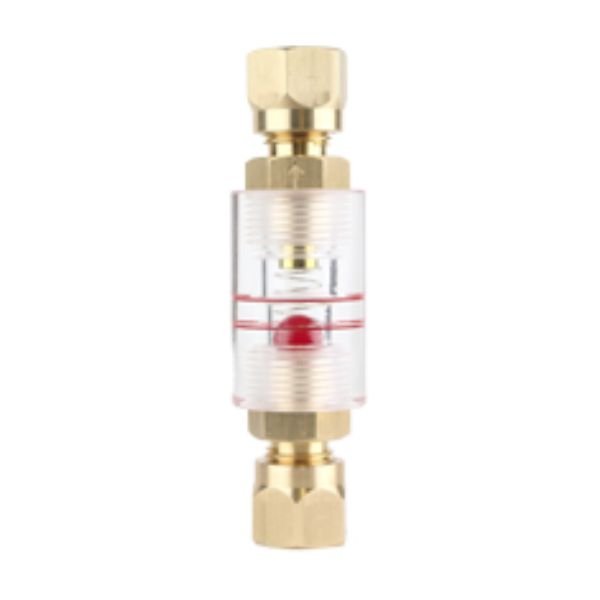

Maeda Koki MKK type OIL SIGNAL – Flow Indicatorconfirms a flow of the oil by viewing by the moving ball with a zipper sleeve for copper pipe conclusion. It can be for the exclusive use of the copper pipe.
Type for the exclusive use of the copper pipe
It is a rheoscope confirming a flow of the oil.
In the case of a slowdown machine, please choose MKK25-8-P.
MKK oil signal is a flow indicator, flow switch, and flow control depending on the type. It can confirm a flow of the oil by viewing by the movement of the ball. With zipper sleeve for the copper pipe conclusion.
| Fluid | Oil | |
| Connection | The reference mentioned above | |
| Heat-resistant temperature | A maximum of 80 degrees Celsius | |
| Withstand pressure | 1MPa | |
| Materials | Transparent pipe | Acrylic |
| Coupling | C3604 (brass) | |
| Cap nut | C3604 (brass) | |
| Spring | SUS304 | |
| Nylon ball | Nylon 66 | |
| Zipper sleeve | Cu | |
Maeda Koki MKK type OIL SIGNAL – Flow Indicator confirms a flow of the oil by viewing by the moving ball with a zipper sleeve for copper pipe conclusion.
