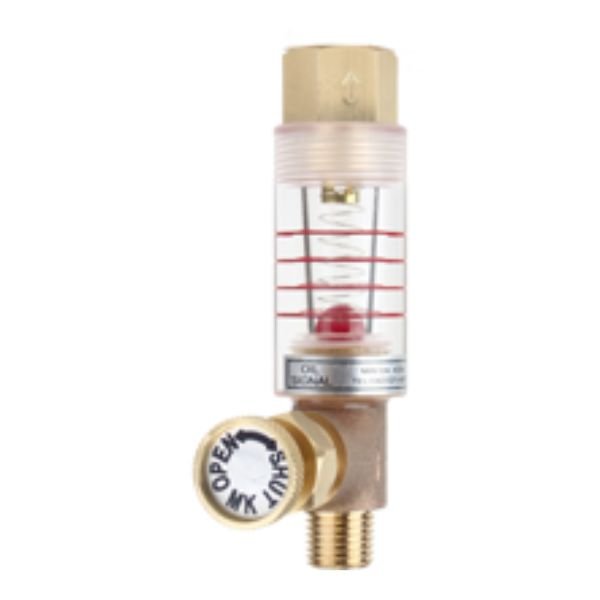

Maeda Koki MKTV Air Signal Flow Indicator

Product Note:

No product notes available.

Description

Maeda Koki MKTV Air Signal Flow Indicator

Maeda Koki MKTV Air Signal Flow Indicator, Signal Flow Indicator it is equipped with a protective cover superior in reliable durability in severe environments. Confirmation and adjustment of the flow quantity of the air. Maeda Koki Co., LTD, founded in 1963, Main business: oil signal, water signal, air signal, and flow indicator. We, the current detector using a transparent tube since 1963. The developer, and began its own production. Maeda Koki product, galvanometer for detecting the flow of fluid and galvanometers. In the field of distribution units, new products and technology developed and know-how on past experience. We strive for development. At present, the major companies / influential companies. We have been adopted in response to the tremendous thrust from work.

Features

  • It shows flow quantity by viewing
    Because use a transparent taper pipe, with a ball (or afloat) and the indication red line. It can confirm approximate flow quantity by looking at the position concerned.
  • With the flow quantity adjustment valve
    By, by adjusting a miniature valve, putting balls together at the position of the indication red line
    The setting of the necessary flow quantity is possible.
  • The installation direction does not matter
    Because using a spring inside, the posture when attach it looks up and look down and it can perform sideways-facing freely.
    Couldn’t Find What You Were Looking For?

Applications

MKTV is a flow indicator, flow switch, and flow control depending on the type. It can confirm the approximate flow quality of the water by viewing. With flow quantity adjustment valve.

Specifications

FluidGas
ConnectionRc internal threadChange to R screw
The combination with the R screw is possible, too.
 Heat-resistant temperatureA maximum of 80 degrees Celsius
Withstand pressure1MPa
MaterialsTransparent pipeAcrylic
CouplingC3604 (brass)
SpringSUS304
Nylon ballNylon 66I may use a cylindrical float.
Miniature valveBC
 O ringNitrile rubber

List of models

ModelDimensions (mm)Maximum flow quantity
(L/min)
 ConnectionFull lengthOverall widthDepth
MKTV25-1TARC1/8942551150
MKTV25-2TARc1/4942551150
MKTV25-3TARc3/8942551200

Downloads

Datasheet: Maeda Koki MKTV type AIR SIGNAL – Flow indicator
