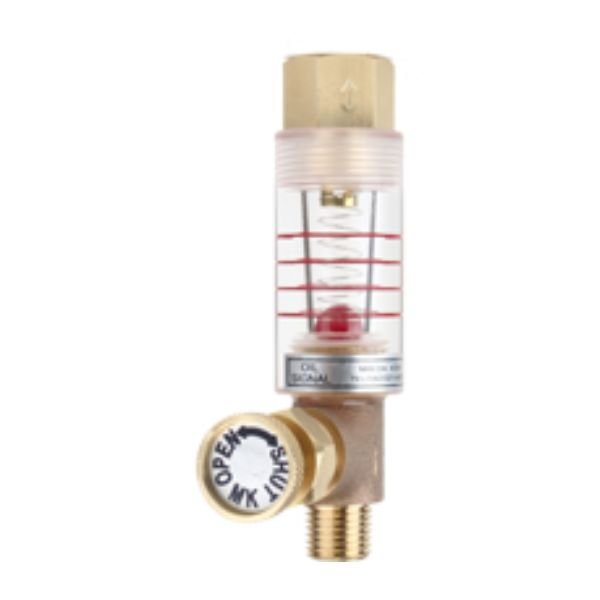

Maeda Koki MKTV Oil Signal Flow Indicator

Maeda Koki MKTV Oil Signal Flow Indicator is equipped with a protective cover superior in reliable durability in severe environments. Confirmation and adjustment of the flow quantity of the oil.

Maeda Koki MKTV Oil Signal Flow Indicator is equipped with a protective cover superior in reliable durability in severe environments. Confirmation and adjustment of the flow quantity of the oil.

Maeda Koki Oil Signal Feature

  • Type for the exclusive use of the copper pipe
    • It is a rheoscope confirming the flow of the oil.
    • In the case of a slowdown machine, please choose MKK25-8-P.

Flow Rate Oil Signal

Model Dimensions (mm) Maximum flow quantity
Connection Full length Overall width (L/min)
MKK15-4 φ 4 62 15 00.06
MKK25-4 φ 4 86 25 01.05
MKK25-6 φ 6 88 25 3
MKK25-8 φ 8 90 25 5
MKK25-10 φ 10 95 25 5
MKK30-10 φ 10 110 30 10
MKK30-12 φ 12 117 30 10

Features

  • It shows flow quantity by viewing. Because use a transparent taper pipe, with a ball (or afloat) and the indication red line. It can confirm approximate flow quantity by looking at the position concerned.
  • With flow quantity adjustment valve. By adjusting a miniature valve a ball (or afloat) at the position of the indication red line. The setting of the flow quantity that is necessary by putting it together is possible.
  • The installation direction does not matter. The posture when attaching it as using a spring inside looks up and look down, and it can perform sideways-facing freely.

Applications

MKTV oil signal is a flow indicator, flow switch, and flow control depending on the type. Confirmation, adjustment is possible with a flow quantity of the oil with lightweight, a compact. With flow quantity adjustment needle valve.

Specifications

Standard specifications (protest a form)

Fluid Oil
Connection
(the exit side)
Rc internal thread The change to R screw is possible, too.
The connection of the valve becomes only the R screw.
Heat-resistant temperature A maximum of 80 degrees Celsius
Withstand pressure 1MPa
Materials Transparent taper pipe Acrylic
Coupling C3604 (brass)
Spring SUS304
Nylon ball Nylon 66 I may use a cylindrical float.
Miniature valve BC The production at the valve with the check nut is possible, too.

Standard specifications (for the copper pipe)

Fluid Oil
Connection
(the exit side)
The reference mentioned above
Heat-resistant temperature A maximum of 80 degrees Celsius
Withstand pressure 1MPa
Materials Transparent taper pipe Acrylic
Coupling C3604 (brass)
Cap nut C3604 (brass)
Zipper sleeve Cu
Spring SUS304
Nylon ball Nylon 66 I may use a cylindrical float.
Miniature valve BC

List of models

Model Dimensions (mm) Maximum flow quantity
(L/min)
Connection Full length Overall width Depth
Right?
ji
Include
See
Form
MKTV25-1TL  Rc1/8 94 25 51 3
MKTV25-2TL Rc1/4 94 25 51 3
MKTV25-3TL Rc3/8 99 25 51 3
Copper
Pipe
Business
MKTV25-4 φ 4 110 25 51 1.5
MKTV25-6 φ 6 112 25 51 3
MKTV25-8 φ 8 114 25 51 5
MKTV25-10 φ 10 119 25 51 5



Downloads

Datasheet: Maeda Koki MKTV type OIL SIGNAL-Flow Indicator
