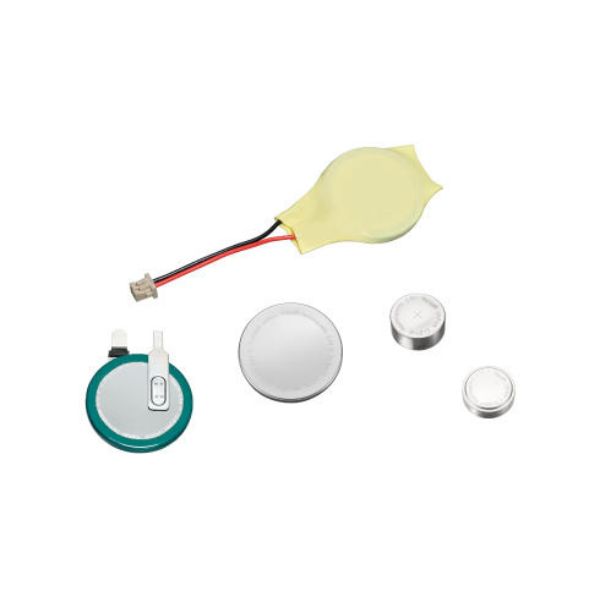

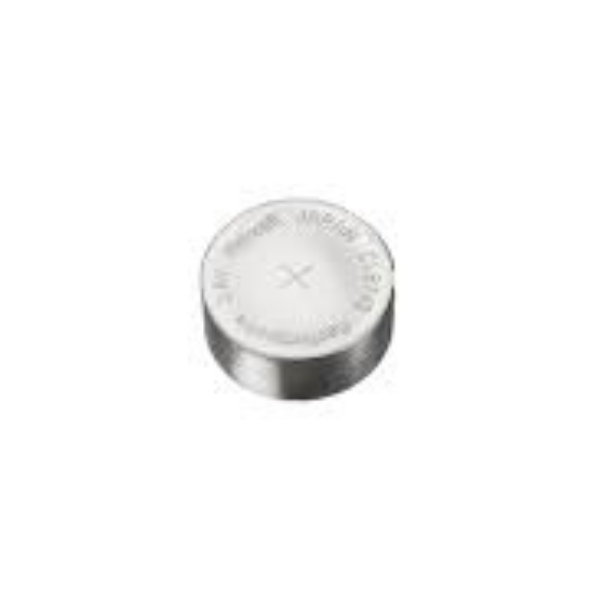

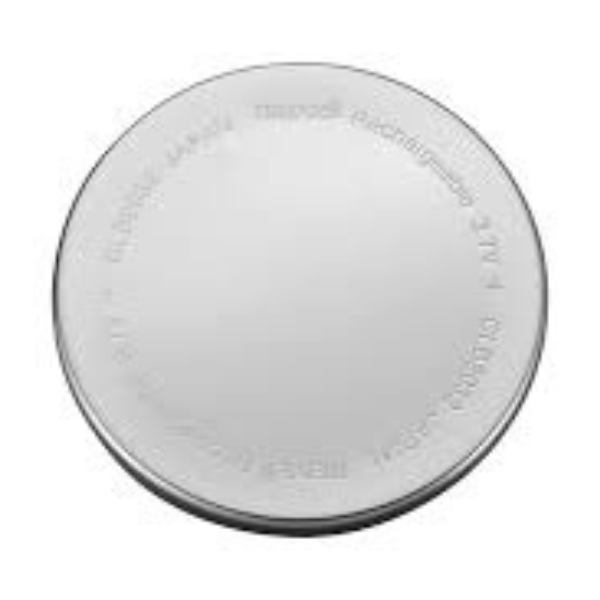

Maxell CLB Series Coin Type Lithium-ion Rechargeable Battery

Maxell CLB Series Coin Type Lithium-ion Rechargeable Battery developed by Maxell, the coin-type lithium-ion rechargeable battery has a high-rate discharge characteristic of up to 2ItA by means of an original stacked electrode structure.

Maxell CLB Series Coin Type Lithium-ion Rechargeable Battery

Maxell CLB Series Coin Type Lithium-ion Rechargeable Battery developed by Maxell, the coin-type lithium-ion rechargeable battery has a high-rate discharge characteristic of up to 2ItA by means of an original stacked electrode structure. Superior recharging properties ensure a service life of about 500 charge/discharge cycles under normal usage conditions. The superior cost/performance ratio ensures that lithium-ion batteries are ultimately more economical than primary batteries.

Safety Instructions

The battery contains organic solvents and other combustible materials. For this reason, improper handling of the battery could lead to distortion, leakage*, overheating, explosion, or fire, causing bodily injury or equipment trouble. Please observe the following instructions to prevent accidents. The following are general cautions and guidelines only and as such may not include every possible usage scenario. The manufacturer will not be liable for actions taken or accidents caused

Features

  • High Power : A unique stacked electrode structure enables power of up to 140mA (CLB2032).
  • Discharge capability of CLB2032 is approximately 40 times better*
  • Excellent cost performance : Superior recharging properties ensure a service life of about 500 charge/discharge cycles under normal usage conditions. The superior cost/performance ratio ensures that lithium-ion batteries are ultimately more economical than primary batteries.
  • High reliability : Maxell has incorporated unique technologies gained during its development of crimping and electrode coating. The stainless steel battery body minimizes swelling.
  • Superior safety : Separator-wrapped positive electrodes prevent to make internal short-circuit. Safety is ensured even if external short-circuit occurs.

Applications

  • Biological information monitoring systems
  • Wearable data devices
  • Medical sensor networks
  • Environment monitoring systems
  • Logistics management systems
  • Rechargeable hearing aids
  • Remote keyless entry systems (RKE)
  • Multifunction watches

Specifications

Model Nominal Voltage (V) Nominal Capacity (mAh)*1 Charge (CCCV) Discharge (CC) Initial Dimensions*3 (mm) Weight (g)*3
Max. Voltage (V) Standard Current (mA) Temperature (deg. C) End Voltage (V) Max. Current (mA) Temperature (deg. C) Diameter (mm) Height (mm)*4
CLB2032 3.7 70*1 4.2 35 0~+45 3.0 140 -20~+60 20 3.45 3.0
CLB2016 3.7 30*1 4.2 15 0~+45 3.0 60 -20~+60 20 2.0 2.1
CLB937A 3.7 18*1 4.2 9 0~+45 3.0 36 -20~+60 9.5 3.9 0.7
CLB740H 3.8 19*2 4.2 9.5 0~+45 3.0 19 -20~+60 7.85 4.0 0.5
  1. Nominal capacity is according to the following conditions: Charge: 0.5ItA/4.2V (CCCV)/End current 0.03ItA, Discharge: 0.2ItA/E.V. = 3.0V, Temperature 20 deg. C
  2. Nominal capacity is according to the following conditions: Charge: 0.5ItA/4.2V (CCCV)/End current 0.03ItA, Discharge: 1mA/E.V. = 3.0V, Temperature 20 deg. C
  3. Dimensions and weight are for the battery itself, but may vary depending on terminal specifications and other factors.
  4. 100% charged

Downloads

Datasheet: Maxell CLB Series Coin Type Lithium-ion Rechargeable Battery_1
