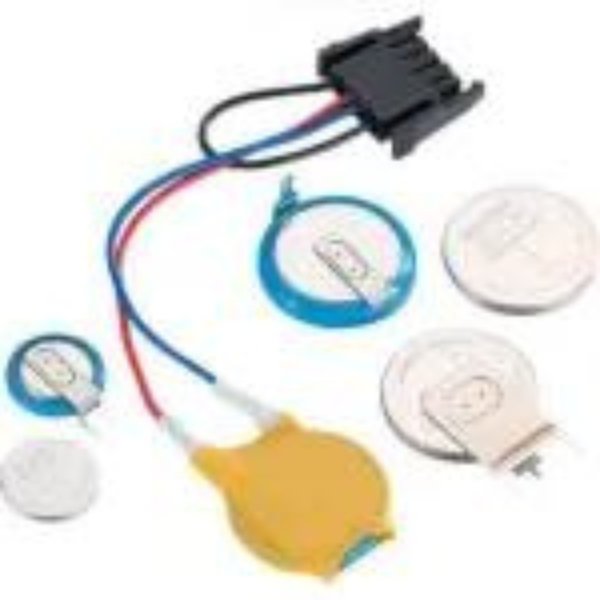

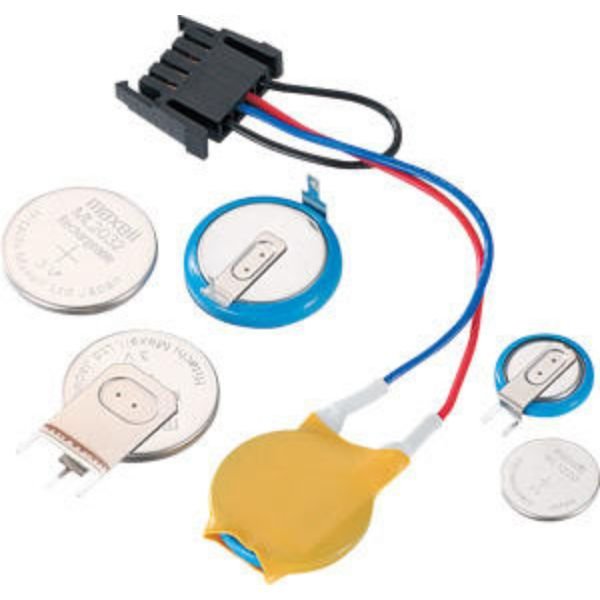

Maxell ML Series Coin Lithium Manganese Dioxide Rechargeable Battery

Maxell ML Series Coin Lithium Manganese Dioxide Rechargeable Battery Employs specially treated manganese dioxide for the positive material and a lithium-aluminum compound for the negative material.

Maxell ML Series Coin Lithium Manganese Dioxide Rechargeable Battery

Maxell ML Series Coin Lithium Manganese Dioxide Rechargeable Battery employs specially treated manganese dioxide for the positive material and a lithium-aluminum compound for the negative material. A specially formulated organic electrolyte is also used, yielding excellent discharge characteristics with low self-discharge. A specially formulated organic electrolyte is employed to provide stable discharge characteristics even if charged for a year at 3.3 V at 20 deg. C (according to an accelerated test conducted by Maxell).

The coin-type lithium manganese dioxide rechargeable battery is a small, lightweight rechargeable battery. This battery employs specially treated manganese dioxide for the positive material and a lithium aluminum compound for the negative material. A specially formulated organic electrolyte is also used, yielding excellent discharge characteristics with low self-discharge.

This battery contains lithium, organic solvents, and other combustible materials. For this reason, improper handling of the battery could lead to distortion, leakage*, overheating, explosion, or fire, causing bodily injury or equipment trouble. Please observe the following instructions to prevent accidents. (* Leakage is defined as the unintentional escape of a liquid from a batter.

Features

  • Approx. 2.5V operating voltage : The operating voltage is about twice that of nickel cadmium rechargeable batteries. Displays a high discharge voltage of 2.8 V when at 10% of nominal capacity (depth of discharge is 10% or less), when charged at 3.0 to 3.3 V.
  • Superior charge/discharge characteristics : Achieves 1,000 cycles of discharging to 10% of nominal capacity (Depth of discharge = 10%). The total discharge capacity is quite high at 100 times nominal capacity. (shipped fully charged)
  • Wide -20 deg. C to 60 deg. C usable temperature range : Demonstrates stable operating voltage in temperatures as low as -20 deg. C and as high as 60 deg. C.
  • Low self-discharge and superior leakage resistance : Self-discharge at 20 deg. C is no more than 2% per year. Supplies a nominal capacity of about 95% even when stored at 20 deg. C for roughly five years (according to accelerated test conducted by Maxell). And since organic electrolyte is used, the battery has superior leakage resistance.
  • Excellent floating characteristics : A specially formulated organic electrolyte is employed to provide stable discharge characteristics even if charged for a year at 3.3 V at 20 deg. C (according to accelerated test conducted by Maxell).
  • Excellent high rate discharge characteristics : Maxell ML (lithium manganese dioxide rechargeable) batteries are available only for equipment manufacturers as a built-in part. Therefore, Maxell does not supply these batteries for replacement directly to users of equipment with these batteries. When built-in ML batteries need to be replaced, please contact your equipment manufacturer. If you are planning to use Maxell ML batteries in your equipment as a built-in part, please contact Maxell.

Applications

  • Mobile Phones
  • PHS
  • OA Machines (Fax, Copiers, Printers)
  • Notebook PCs
  • Desktop PCs
  • PDAs
  • Camcorders
  • Digital Still Cameras
  • Portable CD/MD Players
  • Watches
  • Medical Instruments, Cash Registers
  • FA Instruments (Measuring Instruments, Onboard Microcomputers, Sensors)
  • Electronic Meters (Water, Gas, Electricity)

Specifications

Model Nominal Voltage (V) Nominal Capacity
(mAh)*2
Nominal Discharge Current
(µA)
Charge/
Discharge
Cycle Lifetime
Operating
Temperature
Ranges
(deg. C)
Dimensions*1 Weight (g)*1
Depth of Discharge
= 10%
Depth of Discharge
= 20%
Diameter (mm) Height (mm)
ML
2032
3 65 200 1,000 300 -20 to +60 20 3.2 3.0
ML
2016
3 25 200 1,500 500 20 1.6 1.8
  1. Dimensions and weight are for the battery itself, but may vary depending on the shape of terminals or other factors.
  2. Nominal capacity indicates duration until the voltage drops down to 2.0V when discharged at a nominal discharge current at 20 deg. C.

Downloads

Datasheet: Maxell ML Series Coin Lithium Manganese Dioxide Rechargeable Battery
