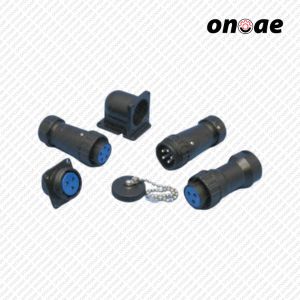

Nanaboshi NJW-203-RF Circular Connector

Nanaboshi NJW-203-RF Circular Connector

Original price was: Rp 214.000.Current price is: Rp 191.000.

Product Note:

No product notes available.

17 in stock

Description

The Nanaboshi NJW-203-RF Circular Connector is a waterproof industrial connector based on the NJC Series. Similar to the NJC Series, it is available in a wide variety of types to meet different application requirements. This connector offers proven and reliable performance for outdoor installations, including surveillance cameras, construction machines, and outdoor measuring equipment.

Features

  •  RoHS Directive Compliant
  •  Waterproof connector function equivalent to IP-67 when coupled
  •  Thread lock
  •  Die Cast shell with zinc alloy or aluminum alloy
  •  Smooth coupling 5-key system guide
  •  Installation in a small space enable by use of the L za
  •  UL CSA Standard certified connectors available. (UL : UL1977 CSA : C22.2 No.182.3)
  •  Cable Termination : Soldering

Applications

It is ideal for cable connections of outdoor equipment in general.

Specifications

  •  Type: Receptacle
  •  Contact Type: famale
  •  Size: 20
  •  Number of contact: 3 pin
  •  Rating: 250V 15A
  •  Withstand Voltage: 1.500V r.m.s
  •  Wire Size: 2 mm^2

Downloads

Download Data Sheet :Nanaboshi NJW-203-RF Circular Connector
