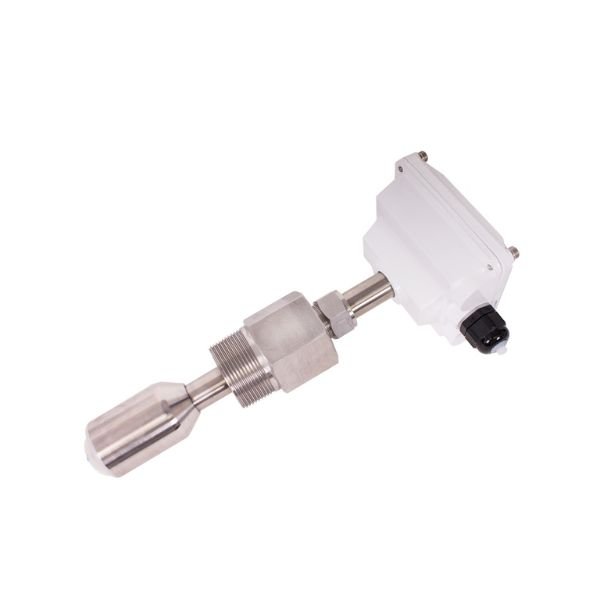

Seametrics EX110/EX210 Insertion Magmeters

The EX100/200-Series are adjustable depth insertion magmeters that fit 3” to 48” pipe (up to 72” optional). The complete lack of moving parts of the EX100/200-Series is the source of its reliability.

The EX100/200-Series are adjustable depth insertion magmeters that fit 3” to 48” pipe (up to 72” optional). The complete lack of moving parts of the EX100/200-Series is the source of its reliability. Brass and stainless steel models withstand a variety of temperature, pressure, and chemical conditions. The EX-Series has no rotor to stop turning in dirty water and there are no bearings to wear out. Like all magmeters, when used in chemical injection applications, these meters should be installed upstream of the chemical line (or far enough downstream to allow complete mixing of fluids before the meter). Adapters mate with standard 1-1/2” (11x/21x) or 2” (15x/25x) FNPT threaded fittings such as saddles and weldolets which may be purchased either locally or from Seametrics.

A rapidly reversing magnetic field is produced in the lower housing. As the fluid moves through this field, a voltage is generated that is measured and translated into a frequency signal proportional to flow rate. This square wave signal can be sent directly to a PLC or other control or can be converted using any of the Seametrics family of indicators and converters. A modular system of electronics can be installed directly on the flow sensor or mounted remotely. The FT430 (externally powered with pulse) and the FT440 (loop powered), both provide digital rate and total displays, as well as a programmable pulse; the FT440 also provides a 4-20 mA analog output.

The “hot-tap” models (EX15x/25x) can be installed or serviced without shutting down the line by means of a 2” full-port isolation valve that comes with a nipple for installation on the pipe fitting; a bronze ball valve is standard on both models, with a 316 stainless steel val al if needed. In most circumstances, no special tool is required.

Features

  • No moving parts
  • Durable
  • Adjustable depth
  • Hot-tap available
  • Brass or stainless steel
  • Immersibility (optional)
  • Reverse flow output (optional)
  • NSF/ANSI standard 61 & 372 (stainless only)
  • Data logger (optional)
  • Sensus smart output (optional with display)

Applications

  • 3” – 48” pipe (up to 72” optional)
  • Clean or “dirty” liquids
  • Conductive liquids
  • Municipal
  • Industrial
  • Irrigation

Specifications

Pipe Size 3” to 48” (up to 72” optional)
Power Full Power: 12 – 24 Vdc, 250mA                    Low Power: 12 – 24 Vdc, 40mA average with 250mA peaks
Materials Housing Powder-coated cast aluminum
Tubing/Fitting/Sensor Housing Brass or 316 Stainless Steel
Electrodes Hastelloy
Electrode Cap PVDF
O-Ring (15x/25x only) EPDM
Valve Assembly (15x/25x only) Bronze ball valve, both models (Stainless steel valve optional for stainless steel model)
Fitting Size Required 11x/21x: 1.5” FNPT                       15x/25x: 2” FNPT
Maximum Pressure 200 psi (14 bar)
Temperature Ambient 0˚ to 160˚ F (-17˚ to 72˚ C)
Fluid 32˚ to 200˚ F (0˚ to 93˚ C)
Minimum Conductivity 20 microSiemens/cm
Flow Velocity 0.28 – 20 ft/sec (0.08 – 6.09 m/sec)
Accuracy ± 1% of full scale
Output Square wave pulse, opto-isolated, 500 Hz @ 20 ft/sec

6 mA max, 30Vdc forward flow standard; reverse flow optional

Empty Pipe Detection Software, defaults to zero flow
Cable Standard 18’ (6m), #22 shielded twisted pair, 4-conn. Max. cable run at 24 Vdc = 1000’ (300m); at 12 Vdc = 500’ (150m). For other circumstances, contact the factory.
Environmental See meter mounted electronic specification for rating.
Regulatory Mark (applies to full power sensor only configuration and full power FT 430/440 mounted configurations).

Certified to NSF/ANSI standard 61 and NSF 372 (Stainless only)

Downloads

Datasheet: Seametrics EX110, EX210 Insertion Magmeters
